Post Success Reports Here Successfully Repaired/Dead Recovered Handset By Ufi Box

R

Rak_1790

Junior Member
Jun 12, 2020
2
0
India
I can't flash any mi phone like mi 6a
Mi6 mtk cpu or Qualcomm cpu wich one how to use credit any time say upgrade your system memory low like that what is pro say any think my pc ram is 4gb

B

bhojraj

Junior Member
Sep 7, 2020
1
0
kalapipal
Deepesh Sharma said:

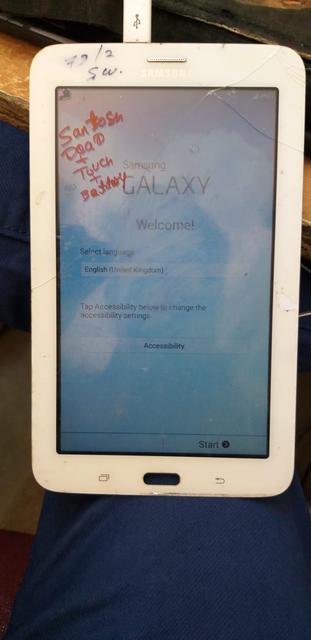

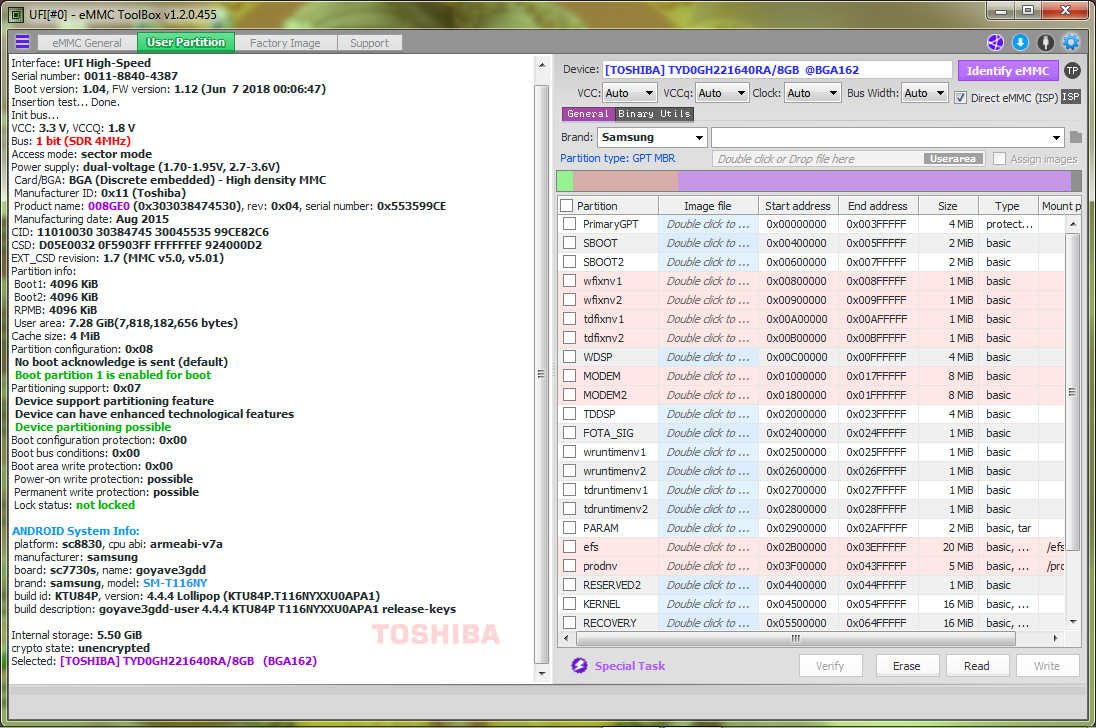

Samsung galaxy Tab-3 Dead Recover Repair Emmc/Read Dump

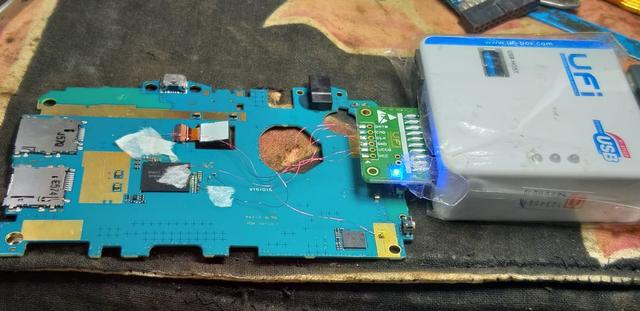

Samsung Tab-3 T116Ny Dead Recover With Emmc Repair Connect Isp Pinout And Read Dump File For Ufi-Box User

Image-1

Emmc Repair


Sucessfully Alive Handset

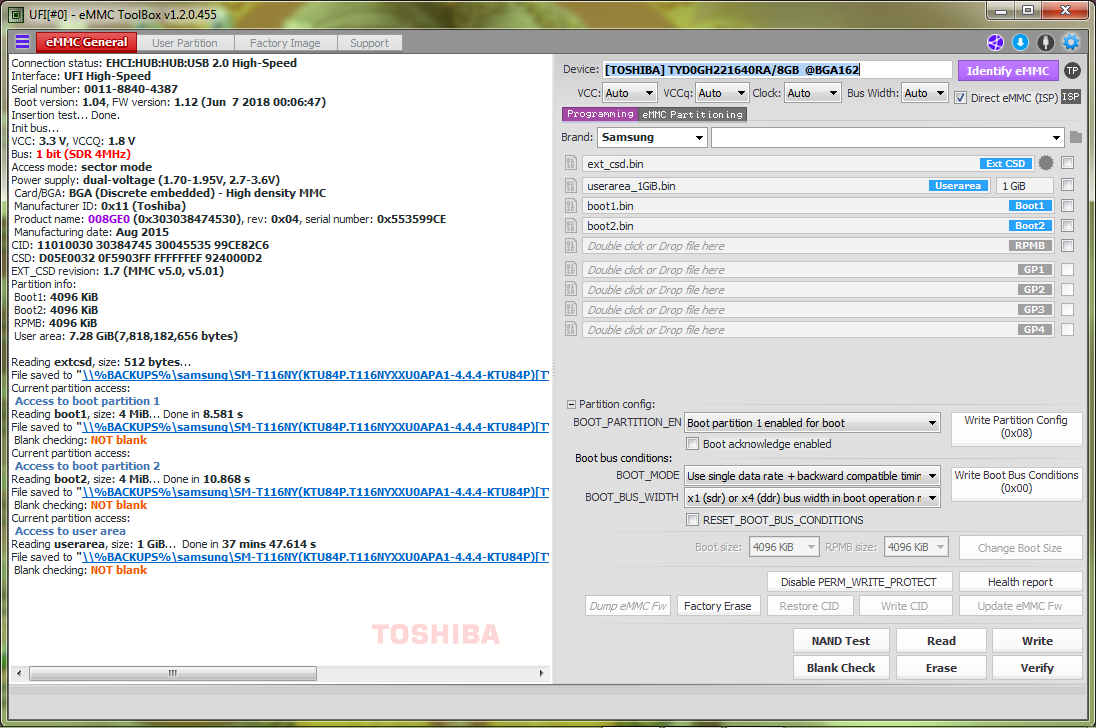

Read Dump
Click to expand...
samsung t116ny ips pinout not find

jaanjaan

jaanjaan

Friend's Martview
Aug 26, 2017
313
140
punjab
Skype
[email protected]
Sucessfully Repaired Phone/Emmc Reprogramming By ufi BOx

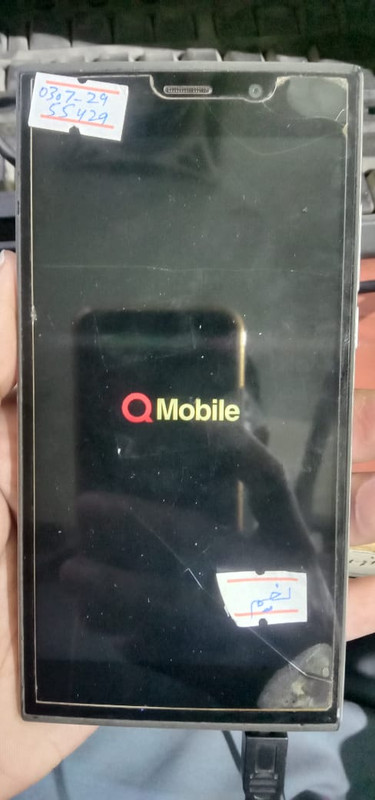

QMOBILE Z8 DEAD RECOVER BY UFI DIRECT EMMC​

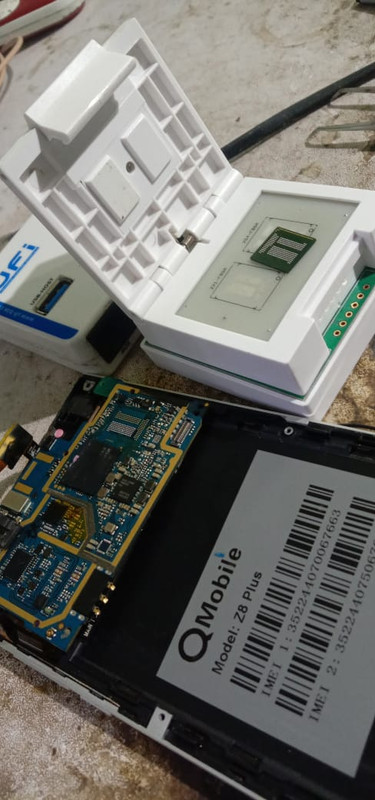

Qmobile z8 dead boot recover don by ufi direct emmc

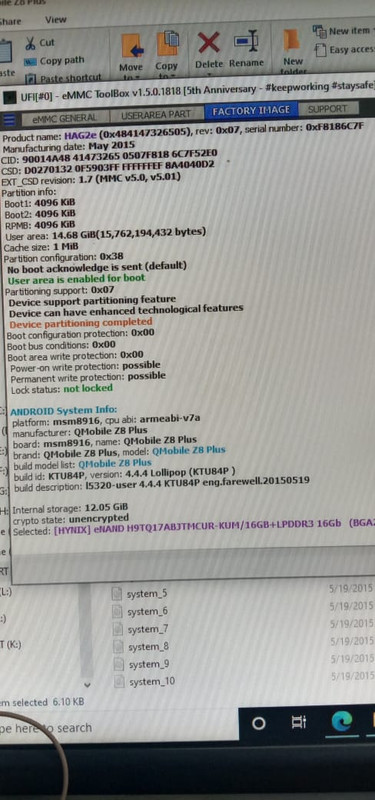

and flash direct ufi box with emmc adaptor and read

dump file and uniqe file soo finly qmobile z8 alive

one again dump file shair my all ufi users for free.
QMOBILE Z8 DEAD RECOVER BY UFI DIRECT EMMC

Last edited by a moderator:
farhanab

farhanab

Active Member
Sep 28, 2019
57
27
Alipur
Nokia plus alive only mtk port show\


BROM version[1]: 7.2021.1.0
DA: ANT-0-0020-0000-MTK_AllInOne_DA.bin
hash: 3f70ec0fa46960a390caa58014044f633694d3e0, size: 359.68 KiB
version: 3.3001.Fri.06:412019/07/26 21:21:17, start addr: 0x40000800
Connecting to BootROM...
Power off the phone, disconnect and reconnect the battery(if possible) and connect USB cable...
Hold the VOL UP + DOWN to force MediaTek BootROM.
Scanning BootROM or Preloader port... Done
Detected [BootROM] MediaTek USB Port_V1632 (COM30)
Connection status: EHCI:HUB:HUB:USB 1.10 High-Speed
USB Driver: [MediaTek Inc.] wdm_usb, version: 3.0.1504.0, date: 1-22-2015
Connecting Bootrom...
Sending Download Agent...
Platform: MT6739, Hw ver: 0xCB00, Sw ver: 0x0002
Secure ver: 0x00, BL ver: 0x00
SRAM size: 256 KiB
DRAM size: 1 GiB
SOC ID: 84ecd8c564385d0a7a7da6df924d78ea6e1ff1d809d6aebc81aca46d3da9f7e5
ME ID: 329a3322bdd19ea82e1c9f0a51b1bc68
Storage type: eMMC
Card/BGA: BGA (Discrete embedded)
Manufacturer ID: 0x15 (Samsung)
Product name: FN62MB (0x464e36324d42), rev: 0x03, serial number: 0x0300A83E
Manufacturing date: Mar 2019
CID: 15010046 4E36324D 42030300 A83E366F
Capacity: 7.29 GiB(7,827,095,552 bytes)
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 512 KiB (key exist)
User area: 7.28 GiB(7,818,182,656 bytes)
USB speed: High-Speed

Verifying Soc: passed
Verifying Storage ID: passed
Writing preloader: ANT-0-0630-00WW-1-1-preloader_ANT.bin, size: 117.77 KiB
Writing recovery: ANT-0-0630-00WW-1-1-recovery.img, size: 13.64 MiB
Writing systeminfo: fver, size: 10.27 KiB
Writing sutinfo: ANT-00WW-001-sutinfo.img, size: 55 bytes
Writing cda: ANT-00WW-006-cda.img, size: 6 MiB
Writing md1img: ANT-0-0630-00WW-1-1-md1img.img, size: 17.59 MiB
Writing md1dsp: ANT-0-0630-00WW-1-1-md1dsp.img, size: 6.11 MiB
Writing spmfw: ANT-0-0630-00WW-1-1-spmfw.img, size: 27.80 KiB
Writing mcupmfw: ANT-0-0630-00WW-1-1-mcupmfw.img, size: 6.97 KiB
Writing lk: ANT-0-0630-00WW-1-1-lk.img, size: 705.66 KiB
Writing lk2: ANT-0-0630-00WW-1-1-lk.img, size: 705.66 KiB
Writing loader_ext1: ANT-0-0630-00WW-1-1-loader_ext.img, size: 53.73 KiB
Writing loader_ext2: ANT-0-0630-00WW-1-1-loader_ext.img, size: 53.73 KiB
Writing boot: ANT-0-0630-00WW-1-1-boot.img, size: 7.76 MiB
Writing logo: ANT-0-0630-00WW-1-1-logo.bin, size: 167.17 KiB
Writing dtbo: ANT-0-0630-00WW-1-1-dtbo.img, size: 34.72 KiB
Writing tee1: ANT-0-0630-00WW-1-1-tee.img, size: 470.22 KiB
Writing tee2: ANT-0-0630-00WW-1-1-tee.img, size: 470.22 KiB
Writing vendor: ANT-0-0630-00WW-1-1-vendor.img, size: 210.34 MiB
Writing system: ANT-0-0630-00WW-1-1-system.img, size: 1.39 GiB
Writing cache: ANT-0-0630-00WW-1-1-cache.img, size: 80.10 KiB
Writing userdata: ANT-0-0630-00WW-1-1-userdata.img, size: 164.29 KiB

Completed in 1 min 27.195 s

Screenshot (290).png

  • Like
Reactions: Rizwan ch08
akram

akram

Member
Nov 27, 2016
12
0
hydedrabad
cellbhai said:
OPPO F7,A7,A1K PATTERN AND FRP DONE
OPPO CPH 1819 PATTERN DONE

Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: DH6DMB (0x444836444d42), rev: 0x05, serial number: 0xB8066A03
Manufacturing date: Oct 2017
CID: 15010044 4836444D 4205B806 6A03A46C
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
[Oppo] MasterClear [1]... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: DH6DMB (0x444836444d42), rev: 0x05, serial number: 0xB8066A03
Manufacturing date: Oct 2017
CID: 15010044 4836444D 4205B806 6A03A46C
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
[Oppo] MasterClear [5]... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: DH6DMB (0x444836444d42), rev: 0x05, serial number: 0xB8066A03
Manufacturing date: Oct 2017
CID: 15010044 4836444D 4205B806 6A03A46C
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Clear FRP Lock... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: DH6DMB (0x444836444d42), rev: 0x05, serial number: 0xB8066A03
Manufacturing date: Oct 2017
CID: 15010044 4836444D 4205B806 6A03A46C
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Reading cache at 0x19A800000-0x1B57FFFFF size: 432 MiB... cmd response: 0x0, card status: 0x0, card state: 0 (Card is in unknown state)
OS error code: 0x000003E3(The I/O operation has been aborted because of either a thread exit or an application request)
Operation aborted by user request.
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: DH6DMB (0x444836444d42), rev: 0x05, serial number: 0xB8066A03
Manufacturing date: Oct 2017
CID: 15010044 4836444D 4205B806 6A03A46C
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x48
Boot acknowledge is sent during the boot operation
Boot partition 1 is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x02
Bus width: x8 (sdr/ddr), boot mode: sdr(default), reset bus width to x1 sdr(default)
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
ANDROID System Info:
platform: MT6771, cpu abi: arm64-v8a
manufacturer: OPPO
board: oppo6771_17331, name: CPH1819
brand: OPPO, model: CPH1819 (OPPO F7)
build model list: CPH1811 (A73), CPH1837 (A73), CPH1839 (A73), CPH1835 (OPPO R15), CPH1819 (OPPO F7)
build id: PPR1.180610.011, version: 9 Pie (CPH1819EX_11_C.10)
build description: full_oppo6771_17331-user 9 PPR1.180610.011 eng.root.20191119.143355 release-keys
crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Detected: SAMSUNG moviNAND KMDH6000DM-BXXX/64G

OPPOCPH 1901 PATTERN AND FRP DONE

Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0xA12E9B7F
Manufacturing date: Dec 2018
CID: 15010052 48363441 4205A12E 9B7FC5E6
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x38
No boot acknowledge is sent (default)
User area is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\RH64AB_A12E9B7F.ext_csd"
ANDROID System Info:
platform: msm8953, cpu abi: arm64-v8a
manufacturer: OPPO
board: msm8953, name: CPH1901
brand: OPPO, model: CPH1901 (OPPO A7)
build model list: CPH1901 (OPPO A7)
build id: OPM1.171019.026, version: 9 Pie (CPH1901EX_11_A.10)
build description: msm8953_64-user 8.1.0 OPM1.171019.026 eng.root.20190823.123130 release-keys
crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Selected: [SAMSUNG] KMRH60014A-B614/64GB (BGA221)
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0xA12E9B7F
Manufacturing date: Dec 2018
CID: 15010052 48363441 4205A12E 9B7FC5E6
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
MasterClear [1]... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0xA12E9B7F
Manufacturing date: Dec 2018
CID: 15010052 48363441 4205A12E 9B7FC5E6
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
MasterClear [5]... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0xA12E9B7F
Manufacturing date: Dec 2018
CID: 15010052 48363441 4205A12E 9B7FC5E6
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Clear FRP Lock... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0xA12E9B7F
Manufacturing date: Dec 2018
CID: 15010052 48363441 4205A12E 9B7FC5E6
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x38
No boot acknowledge is sent (default)
User area is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
ANDROID System Info:
platform: msm8953, cpu abi: arm64-v8a
manufacturer: OPPO
board: msm8953, name: CPH1901
brand: OPPO, model: CPH1901 (OPPO A7)
build model list: CPH1901 (OPPO A7)
build id: OPM1.171019.026, version: 9 Pie (CPH1901EX_11_A.10)
build description: msm8953_64-user 8.1.0 OPM1.171019.026 eng.root.20190823.123130 release-keys
crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Selected: [SAMSUNG] KMRH60014A-B614/64GB (BGA221)

OPPO CPH 1923 PATTERN AND FRP DONE

Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: QD63MB (0x514436334d42), rev: 0x03, serial number: 0x9FB2076B
Manufacturing date: Sep 2019
CID: 15010051 4436334D 42039FB2 076B9686
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 29.12 GiB(31,268,536,320 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x48
Boot acknowledge is sent during the boot operation
Boot partition 1 is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x02
Bus width: x8 (sdr/ddr), boot mode: sdr(default), reset bus width to x1 sdr(default)
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\QD63MB_9FB2076B.ext_csd"
ANDROID System Info:
platform: MT6765, cpu abi: arm64-v8a
manufacturer: OPPO
board: oppo6762_18540, name: CPH1923
brand: OPPO, model: CPH1923 (OPPO A1k)
build model list: CPH1923 (OPPO A1k)
build id: PPR1.180610.011, version: 9 Pie (CPH1923EX_11_A.19)
build description: full_oppo6762_18540-user 9 PPR1.180610.011 eng.root.20190716.170229 release-keys
crypto state: encrypted?
crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Detected: SAMSUNG moviNAND KMQD60003M-BXXX/32G
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: QD63MB (0x514436334d42), rev: 0x03, serial number: 0x9FB2076B
Manufacturing date: Sep 2019
CID: 15010051 4436334D 42039FB2 076B9686
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 29.12 GiB(31,268,536,320 bytes)
[Oppo] MasterClear [1]... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: QD63MB (0x514436334d42), rev: 0x03, serial number: 0x9FB2076B
Manufacturing date: Sep 2019
CID: 15010051 4436334D 42039FB2 076B9686
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 29.12 GiB(31,268,536,320 bytes)
[Oppo] MasterClear [5]... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: QD63MB (0x514436334d42), rev: 0x03, serial number: 0x9FB2076B
Manufacturing date: Sep 2019
CID: 15010051 4436334D 42039FB2 076B9686
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 29.12 GiB(31,268,536,320 bytes)
Clear FRP Lock... Done
Connection status: EHCI:HUB:HUB:USB 2.00 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8841-0169
Boot version: 1.04, FW version: 1.13 (Aug 19 2019 23:46:09)
Insertion test... Done
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: QD63MB (0x514436334d42), rev: 0x03, serial number: 0x9FB2076B
Manufacturing date: Sep 2019
CID: 15010051 4436334D 42039FB2 076B9686
CSD: D0270132 0F5903FF F6DBFFEF 8E40400C
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 16384 KiB
User area: 29.12 GiB(31,268,536,320 bytes)
Cache size: 64 MiB
Hardware reset function: 1
Partition configuration: 0x48
Boot acknowledge is sent during the boot operation
Boot partition 1 is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x02
Bus width: x8 (sdr/ddr), boot mode: sdr(default), reset bus width to x1 sdr(default)
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
ANDROID System Info:
platform: MT6765, cpu abi: arm64-v8a
manufacturer: OPPO
board: oppo6762_18540, name: CPH1923
brand: OPPO, model: CPH1923 (OPPO A1k)
build model list: CPH1923 (OPPO A1k)
build id: PPR1.180610.011, version: 9 Pie (CPH1923EX_11_A.19)
build description: full_oppo6762_18540-user 9 PPR1.180610.011 eng.root.20190716.170229 release-keys
crypto state: encrypted?
crypto state: encrypted?
Custom moviNAND command is not supported for this device(MMC51).
Detected: SAMSUNG moviNAND KMQD60003M-BXXX/32G
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
Click to expand...
CPH1819EX_11_C.10 file link

kizashi1000

kizashi1000

Active Member
Nov 27, 2020
35
3
malaysia
umarimrl said:
oppo r11s cph1719 flash done with ufi uni android tool



Firehose: prog_emmc_ufs_firehose_Sdm660_ddr.elf
sha1: 5871f9bf6167c8ecc5d1af0f029856d671fe3eb2, size: 584.63 KiB
QC_IMAGE_VERSION: BOOT.XF.1.4.c1-00005-S660LZB-1
IMAGE_VARIANT: Sdm660LA
OEM_IMAGE_VERSION: ubuntu-121-238
Sending firehose loader... Done.
Handshaking...
[VIP] Validated Image Programming is enabled.
Sending signed DigestTable [DigestsToSign_17015_persist_no_userdata_yes.bin.mbn]... Done.
Sending ping... Done.
Binary build date: May 9 2017 09:31:00
Chip serial num: 4294967295 (0xffffffff)
Sending configurations...
TargetName: MSM8996
MemoryName: eMMC
DateTime: May 9 2017 - 09:31:00
Version: 1
Firehose configured.

Reading phone info... Done.
Processing rawprogram0_MSM_17015.xml
Erasing userdata... Done.
Erasing PrimaryGPT... Done.
Erasing backupgpt... Done.
Backing up download flag... Done.
Writing oppostanvbk at 0x00A05000 (20480 sectors)... Done.
Writing xbl at 0x06000000 (5460 sectors)... Done.
Writing xblbak at 0x06380000 (5460 sectors)... Done.
Writing tz at 0x06700000 (3728 sectors)... Done.
Writing tzbak at 0x06B00000 (3728 sectors)... Done.
Writing rpm at 0x06F00000 (440 sectors)... Done.
Writing rpmbak at 0x06F80000 (440 sectors)... Done.
Writing hyp at 0x07000000 (520 sectors)... Done.
Writing hypbak at 0x07080000 (520 sectors)... Done.
Writing pmic at 0x07100000 (78 sectors)... Done.
Writing pmicbak at 0x07180000 (78 sectors)... Done.
Writing boot at 0x07800000 (29611 sectors)... Done.
Writing bootbak at 0x0B800000 (29611 sectors)... Done.
Writing recovery at 0x0F800000 (41691 sectors)... Done.
Writing keymaster at 0x13800000 (699 sectors)... Done.
Writing keymasterbak at 0x13900000 (699 sectors)... Done.
Writing cmnlib at 0x13A00000 (426 sectors)... Done.
Writing cmnlib64 at 0x13B00000 (528 sectors)... Done.
Writing cmnlibbak at 0x13C00000 (426 sectors)... Done.
Writing cmnlib64bak at 0x13D00000 (528 sectors)... Done.
Writing mdtpsecapp at 0x13E00000 (2108 sectors)... Done.
Writing mdtpsecappbak at 0x14200000 (2108 sectors)... Done.
Writing mdtp at 0x14600000 (34782 sectors)... Done.
Writing mdtpbak at 0x16600000 (34782 sectors)... Done.
Writing dsp at 0x18600000 (32768 sectors)... Done.
Writing dspbak at 0x19600000 (32768 sectors)... Done.
Writing abl at 0x1A600000 (216 sectors)... Done.
Writing ablbak at 0x1A700000 (216 sectors)... Done.
Erasing dip... Done.
Erasing devinfo... Done.
Writing apdp at 0x1A901000 (27 sectors)... Done.
Erasing msadp... Done.
Erasing dpo... Done.
Writing splash at 0x1A982000 (4589 sectors)... Done.
Erasing limits... Done.
Erasing toolsfv... Done.
Erasing logfs... Done.
Erasing ddr... Done.
Writing bluetooth at 0x1D904000 (920 sectors)... Done.
Writing bluetoothbak at 0x1DA04000 (920 sectors)... Done.
Erasing misc... Done.
Erasing keystore... Done.
Writing devcfg at 0x1E183000 (96 sectors)... Done.
Writing devcfgbak at 0x1E283000 (96 sectors)... Done.
Erasing frp... Done.
Erasing logdump... Done.
Erasing sti... Done.
Writing LOGO at 0x22603000 (31777 sectors)... Done.
Erasing reserve_exp2... Done.
Writing DRIVER at 0x23A03000 (46476 sectors)... Done.
Erasing vbmeta... Done.
Erasing vbmetabak... Done.
Writing modem at 0x26020000 (204259 sectors)... Done.
Writing cache at 0x2E800000 (12497 sectors)... Done.
Writing system at 0x3E800000 (9072817 sectors)... Done.
Writing storsec at 0x1CE800000 (97 sectors)... Done.
Writing userdata at 0x1CF000000 (3444737 sectors)... Done.
Writing PrimaryGPT at 0x00000000 (34 sectors)... Done.brother
Writing BackupGPT at NUM_DISK_SECTORS-33. (33 sectors)... Done.
Restoring download flag... Done.
Set bootable drive to 0... Done.
Applying DISK patch... Done.

Flashing completed in 4 mins 42.747 s
Click to expand...

umarimrl said:
oppo r11s cph1719 flash done with ufi uni android tool



Firehose: prog_emmc_ufs_firehose_Sdm660_ddr.elf
sha1: 5871f9bf6167c8ecc5d1af0f029856d671fe3eb2, size: 584.63 KiB
QC_IMAGE_VERSION: BOOT.XF.1.4.c1-00005-S660LZB-1
IMAGE_VARIANT: Sdm660LA
OEM_IMAGE_VERSION: ubuntu-121-238
Sending firehose loader... Done.
Handshaking...
[VIP] Validated Image Programming is enabled.
Sending signed DigestTable [DigestsToSign_17015_persist_no_userdata_yes.bin.mbn]... Done.
Sending ping... Done.
Binary build date: May 9 2017 09:31:00
Chip serial num: 4294967295 (0xffffffff)
Sending configurations...
TargetName: MSM8996
MemoryName: eMMC
DateTime: May 9 2017 - 09:31:00
Version: 1
Firehose configured.

Reading phone info... Done.
Processing rawprogram0_MSM_17015.xml
Erasing userdata... Done.
Erasing PrimaryGPT... Done.
Erasing backupgpt... Done.
Backing up download flag... Done.
Writing oppostanvbk at 0x00A05000 (20480 sectors)... Done.
Writing xbl at 0x06000000 (5460 sectors)... Done.
Writing xblbak at 0x06380000 (5460 sectors)... Done.
Writing tz at 0x06700000 (3728 sectors)... Done.
Writing tzbak at 0x06B00000 (3728 sectors)... Done.
Writing rpm at 0x06F00000 (440 sectors)... Done.
Writing rpmbak at 0x06F80000 (440 sectors)... Done.
Writing hyp at 0x07000000 (520 sectors)... Done.
Writing hypbak at 0x07080000 (520 sectors)... Done.
Writing pmic at 0x07100000 (78 sectors)... Done.
Writing pmicbak at 0x07180000 (78 sectors)... Done.
Writing boot at 0x07800000 (29611 sectors)... Done.
Writing bootbak at 0x0B800000 (29611 sectors)... Done.
Writing recovery at 0x0F800000 (41691 sectors)... Done.
Writing keymaster at 0x13800000 (699 sectors)... Done.
Writing keymasterbak at 0x13900000 (699 sectors)... Done.
Writing cmnlib at 0x13A00000 (426 sectors)... Done.
Writing cmnlib64 at 0x13B00000 (528 sectors)... Done.
Writing cmnlibbak at 0x13C00000 (426 sectors)... Done.
Writing cmnlib64bak at 0x13D00000 (528 sectors)... Done.
Writing mdtpsecapp at 0x13E00000 (2108 sectors)... Done.
Writing mdtpsecappbak at 0x14200000 (2108 sectors)... Done.
Writing mdtp at 0x14600000 (34782 sectors)... Done.
Writing mdtpbak at 0x16600000 (34782 sectors)... Done.
Writing dsp at 0x18600000 (32768 sectors)... Done.
Writing dspbak at 0x19600000 (32768 sectors)... Done.
Writing abl at 0x1A600000 (216 sectors)... Done.
Writing ablbak at 0x1A700000 (216 sectors)... Done.
Erasing dip... Done.
Erasing devinfo... Done.
Writing apdp at 0x1A901000 (27 sectors)... Done.
Erasing msadp... Done.
Erasing dpo... Done.
Writing splash at 0x1A982000 (4589 sectors)... Done.
Erasing limits... Done.
Erasing toolsfv... Done.
Erasing logfs... Done.
Erasing ddr... Done.
Writing bluetooth at 0x1D904000 (920 sectors)... Done.
Writing bluetoothbak at 0x1DA04000 (920 sectors)... Done.
Erasing misc... Done.
Erasing keystore... Done.
Writing devcfg at 0x1E183000 (96 sectors)... Done.
Writing devcfgbak at 0x1E283000 (96 sectors)... Done.
Erasing frp... Done.
Erasing logdump... Done.
Erasing sti... Done.
Writing LOGO at 0x22603000 (31777 sectors)... Done.
Erasing reserve_exp2... Done.
Writing DRIVER at 0x23A03000 (46476 sectors)... Done.
Erasing vbmeta... Done.
Erasing vbmetabak... Done.
Writing modem at 0x26020000 (204259 sectors)... Done.
Writing cache at 0x2E800000 (12497 sectors)... Done.
Writing system at 0x3E800000 (9072817 sectors)... Done.
Writing storsec at 0x1CE800000 (97 sectors)... Done.
Writing userdata at 0x1CF000000 (3444737 sectors)... Done.
Writing PrimaryGPT at 0x00000000 (34 sectors)... Done.
Writing BackupGPT at NUM_DISK_SECTORS-33. (33 sectors)... Done.
Restoring download flag... Done.
Set bootable drive to 0... Done.
Applying DISK patch... Done.

Flashing completed in 4 mins 42.747 s
Click to expand...
brother, pls share the firehose
Firehose: prog_emmc_ufs_firehose_Sdm660_ddr.elf
sha1: 5871f9bf6167c8ecc5d1af0f029856d671fe3eb2, size: 584.63 KiB

mbiborna

mbiborna

Active Member
Aug 26, 2017
30
7
bangladesh
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 24MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x90 (SK Hynix)
Product name: H8G4u (0x483847347592), rev: 0x01, serial number: 0x18A49473
Manufacturing date: Aug 2016
CID: 90014A48 38473475 920118A4 947383C8
CSD: D0270132 0F5903FF FFFFFFE7 8A40002A
EXT_CSD revision: 1.7 (MMC v5.0, v5.01)
Partition info:
Boot1: 4 MiB
Boot2: 4 MiB
RPMB: 4 MiB [Provisioned, counter: 141122]
User area: 7.28 GiB(7,818,182,656 bytes)
Cache size: 1 MiB
Hardware reset function: 1
Partition configuration: 0x00
No boot acknowledge is sent (default)
Device is not boot-enabled (default)
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning completed
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
User area write protection: 0x10
Password protection features: enabled
Power-on write protection: possible
Permanent write protection: not possible
Lock status: not locked

ANDROID System Info:
platform: msm8916, cpu abi: armeabi-v7a
manufacturer: samsung
board: msm8916, name: j5ltexx
brand: samsung, model: SM-J500F
build model list: SM-J500F
build id: LMY48B, version: 5.1.1 [Lollipop] (LMY48B.J500FXWU1AOJ2)
build description: j5ltexx-user 5.1.1 LMY48B J500FXWU1AOJ2 release-keys

crypto state: encrypted?
Click to expand...

mbiborna

mbiborna

Active Member
Aug 26, 2017
30
7
bangladesh
redmi 5 plus reset lock :)
Click to expand...

Download Port: Qualcomm HS-USB QDLoader 9008 (COM10)
Connection status: XHCI:HUB3:[#0]:USB 2.00 High-Speed
USB Driver: [Qualcomm Incorporated] qcusbser, version: 2.1.2.7, date: 8-2-2017
Initializing...
MSM Serial number: 0xc5a82e51
MSM HW ID: 0x000460e1 (MSM8953), OEM ID: 0x0000 (Qualcomm), MODEL ID: 0x0000
OEM Public Key Hash: 57158eaf1814d78fd2b3105ece4db18a817a08ac664a5782a925f3ff8403d39a
SBL SW version: 0
Firehose: prog_emmc_firehose_8953_ddr[1].mbn
hash: c8c70e280ecf388e1ba42387268782cac92302a5, size: 366.35 KiB
oem version: c3-bsp-builder-job004.bj
qc version: BOOT.BF.3.3-00228
variant: JAADANAZA
Loading firehose... Done
Handshaking...
Sending ping... Done
Sending configurations...
TargetName: 8953
MemoryName: eMMC
Version: 1
Firehose configured.
Storage type: eMMC
Manufacturer ID: 0x15 (Samsung)
Product name: RH64AB (0x524836344142), rev: 0x05, serial number: 0x508D9782
Capacity: 58.25 GiB (62,549,655,552 bytes)
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 58.24 GiB(62,537,072,640 bytes)
platform: msm8953, cpu abi: arm64-v8a
manufacturer: Xiaomi
board: msm8953, name: vince
brand: xiaomi, model: Redmi 5 Plus
build id: N2G47H, version: 7.1.2 [Nougat] (ZQL1711-vince-build-20171222002650) (MIUI9)
build date: Fri Dec 22 00:26:48 CST 2017, security patch: 2017-11-01
build description: vince-user 7.1.2 N2G47H V9.2.3.0.NEGMIEK release-keys
Find Device info:
user id:
status: off
lost mode: no
crypto state: encrypted


Scanning for Qualcomm HS-USB QDLoader 9008 device...
Download Port: Qualcomm HS-USB QDLoader 9008 (COM10)
Connection status: XHCI:HUB3:[#0]:USB 2.00 High-Speed
USB Driver: [Qualcomm Incorporated] qcusbser, version: 2.1.2.7, date: 8-2-2017
Initializing...
platform: msm8953, cpu abi: arm64-v8a
manufacturer: Xiaomi
board: msm8953, name: vince
brand: xiaomi, model: Redmi 5 Plus
build id: N2G47H, version: 7.1.2 [Nougat] (ZQL1711-vince-build-20171222002650) (MIUI9)
build date: Fri Dec 22 00:26:48 CST 2017, security patch: 2017-11-01
build description: vince-user 7.1.2 N2G47H V9.2.3.0.NEGMIEK release-keys
Factory reset...
Creating filesystem with parameters:
Size: 268435456
Block size: 4096
Blocks per group: 32768
Inodes per group: 8192
Inode size: 256
Journal blocks: 1024
Label:
Blocks: 65536
Block groups: 2
Reserved block group size: 15
Created filesystem with 13/16384 inodes and 2091/65536 blocks
Writing cache... Done
Creating filesystem with parameters:
Size: 56966483968
Block size: 4096
Blocks per group: 32768
Inodes per group: 8192
Inode size: 256
Journal blocks: 32768
Label:
Blocks: 13907833
Block groups: 425
Reserved block group size: 1024
Created filesystem with 11/3481600 inodes and 264598/13907833 blocks
Writing userdata... Done


Scanning for Qualcomm HS-USB QDLoader 9008 device...
Download Port: Qualcomm HS-USB QDLoader 9008 (COM10)
Connection status: XHCI:HUB3:[#0]:USB 2.00 High-Speed
USB Driver: [Qualcomm Incorporated] qcusbser, version: 2.1.2.7, date: 8-2-2017
Initializing...
platform: msm8953, cpu abi: arm64-v8a
manufacturer: Xiaomi
board: msm8953, name: vince
brand: xiaomi, model: Redmi 5 Plus
build id: N2G47H, version: 7.1.2 [Nougat] (ZQL1711-vince-build-20171222002650) (MIUI9)
build date: Fri Dec 22 00:26:48 CST 2017, security patch: 2017-11-01
build description: vince-user 7.1.2 N2G47H V9.2.3.0.NEGMIEK release-keys
Clear FRP Lock... Done
Click to expand...

after this only android logo only then write user data & misc after done

Scanning for Qualcomm HS-USB QDLoader 9008 device...
Download Port: Qualcomm HS-USB QDLoader 9008 (COM10)
Connection status: XHCI:HUB3:[#0]:USB 2.00 High-Speed
USB Driver: [Qualcomm Incorporated] qcusbser, version: 2.1.2.7, date: 8-2-2017
Initializing...

Processing rawprogram0.xml
Writing misc at 0xF6000000 (16 sectors)... Done
Writing userdata at 0x14C082000 (195331 sectors)... Done

Flashing completed in 4.608 s
Click to expand...

You must log in or register to reply here.
Top
