If You Have Any Problem Using UFI Box Or Any Problem Recover Set Post Here

A

andi777

Junior Member
Dec 29, 2018
1
0
can someone tell me to solve this problem...im bought new ufi tool box and install it on my win 7 32bit so im new user here...i want too ask why every i want flash it say [SECBOOT] Firehose error:invalid or untrusted certificate

M

mandeep singh

Junior Member
Sep 29, 2018
4
2
Connection status: EHCI:HUB:HUB:USB 2.0 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-5261
Boot version: 1.04, FW version: 1.12 (Jun 7 2018 00:06:47)
Insertion test... Done.
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Failed to initialize eMMC (return code: 17, CMD Error: Timeout) !!!
CMD1 error, cmd response: 0x0, card state: 255 (Card is in unknown state)
SEND_OP_COND command failed.
--- Check eMMC pins and connection ---
--- Try to select correct VCC/VCCQ manually ---
--- Try to decrease the clock speed ---
Check your connection, make sure eMMC inserted properly.

  • Like
Reactions: Jaystone
J

Jane1

Friend's Martview
Nov 23, 2018
171
15

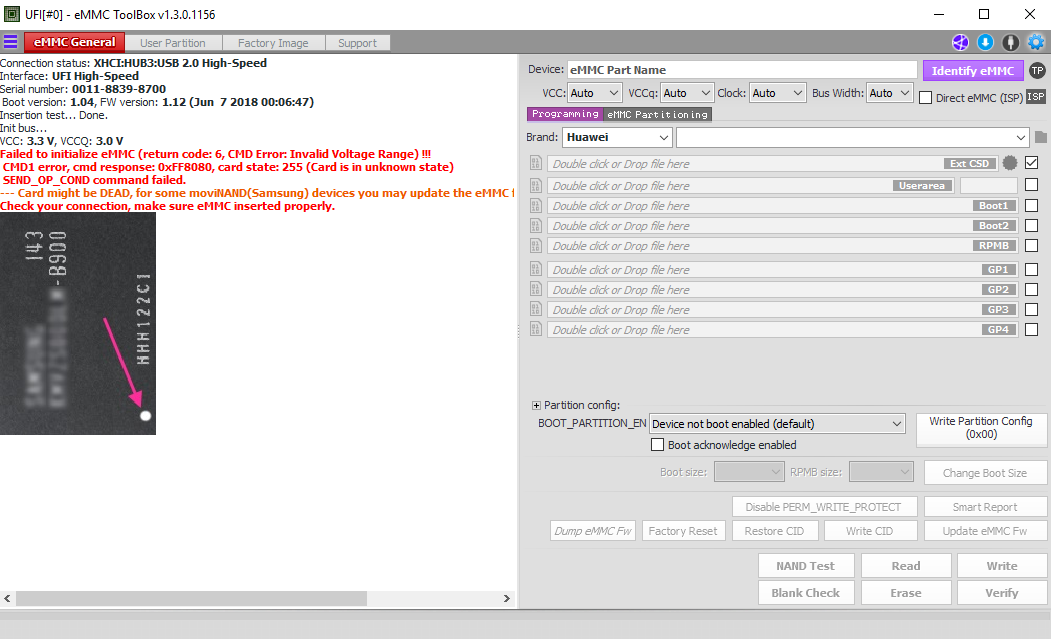

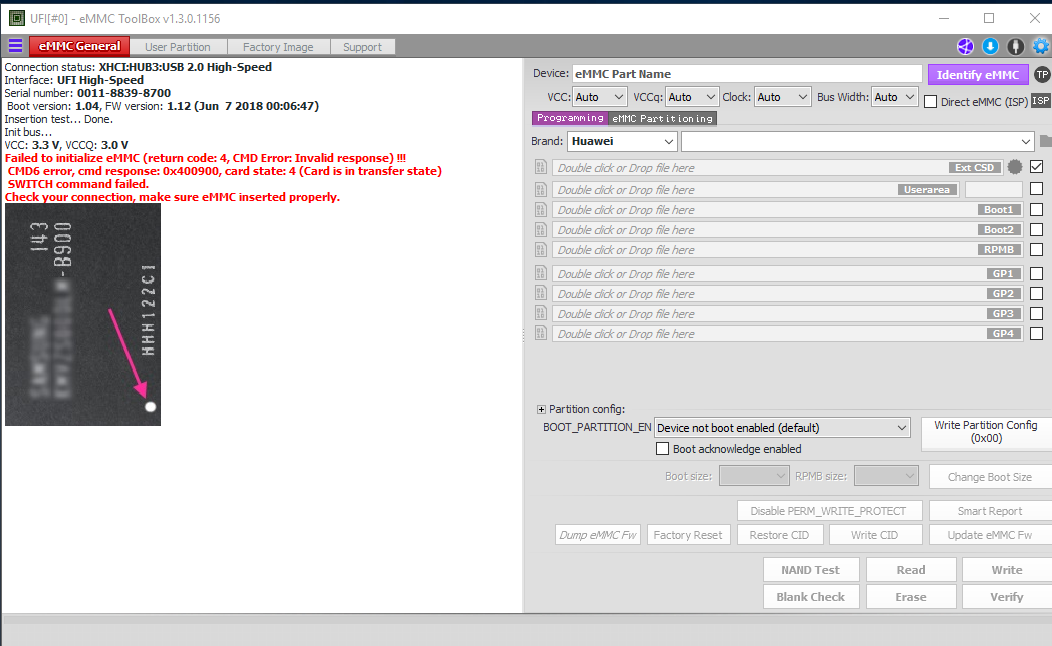

Can anyone let me know how to insert properly eMMC chip into UFI eMMC adaptor? I enclosed a picture how I alligned( inserted) eMMC chip. Is it correct?

UFI says

Connection status: XHCI:HUB3:USB 2.0 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4804
Boot version: 1.04, FW version: 1.12 (Jun 7 2018 00:06:47)
Insertion test... Done.
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Failed to initialize eMMC (return code: 17, CMD Error: Timeout) !!!
CMD1 error, cmd response: 0x0, card state: 255 (Card is in unknown state)
SEND_OP_COND command failed.
--- Check eMMC pins and connection ---
--- Try to select correct VCC/VCCQ manually ---
--- Try to decrease the clock speed ---
--- Try to use 1 bit connection ---
Check your connection, make sure eMMC inserted properly.


But if I use a differerent adaptor (MOORC adaptor it works OK). See below:



Connection status: XHCI:HUB3:USB 2.0 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4804
Boot version: 1.04, FW version: 1.12 (Jun 7 2018 00:06:47)
Insertion test... Done.
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 8 bit (HS SDR 52MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: VTU00M (0x56545530304d), rev: 0xFC, serial number: 0x3D398686
Manufacturing date: Apr 2014
CID: 15010056 54553030 4DFC3D39 868641FA
CSD: D0270132 0F5903FF F6DBFFFF 8E40406C
EXT_CSD revision: 1.6 (MMC v4.5, v4.51)
Partition info:
Boot1: 2048 KiB
Boot2: 2048 KiB
RPMB: 128 KiB
User area: 14.68 GiB(15,758,000,128 bytes)
Cache size: 64 MiB
Partition configuration: 0x48
Boot acknowledge is sent during the boot operation
Boot partition 1 is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x01
Bus width: x4 (sdr/ddr), boot mode: sdr(default), reset bus width to x1 sdr(default)
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
crypto state: encrypted?
Selected: [SAMSUNG] moviNAND KMVTU000LM-B503/16GB(8GB) (BGA153)



oghabloods

oghabloods

Junior Member
Jan 4, 2019
1
0
Hi Can someone help my UFI dongle cant be activated the software says
[SERVER] UFI Dongle was not assigned, request activation to [email protected](requires dealer name and purchase invoice)
or please report your dealer !
Error code: 411

Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,158
India
Sonork ID
100.1614172
Jane1 said:
Can anyone let me know how to insert properly eMMC chip into UFI eMMC adaptor? I enclosed a picture how I alligned( inserted) eMMC chip. Is it correct?

UFI says

Connection status: XHCI:HUB3:USB 2.0 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4804
Boot version: 1.04, FW version: 1.12 (Jun 7 2018 00:06:47)
Insertion test... Done.
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Failed to initialize eMMC (return code: 17, CMD Error: Timeout) !!!
CMD1 error, cmd response: 0x0, card state: 255 (Card is in unknown state)
SEND_OP_COND command failed.
--- Check eMMC pins and connection ---
--- Try to select correct VCC/VCCQ manually ---
--- Try to decrease the clock speed ---
--- Try to use 1 bit connection ---
Check your connection, make sure eMMC inserted properly.


But if I use a differerent adaptor (MOORC adaptor it works OK). See below:



Connection status: XHCI:HUB3:USB 2.0 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-4804
Boot version: 1.04, FW version: 1.12 (Jun 7 2018 00:06:47)
Insertion test... Done.
Init bus...
VCC: 3.3 V, VCCQ: 3.0 V
Bus: 8 bit (HS SDR 52MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x15 (Samsung)
Product name: VTU00M (0x56545530304d), rev: 0xFC, serial number: 0x3D398686
Manufacturing date: Apr 2014
CID: 15010056 54553030 4DFC3D39 868641FA
CSD: D0270132 0F5903FF F6DBFFFF 8E40406C
EXT_CSD revision: 1.6 (MMC v4.5, v4.51)
Partition info:
Boot1: 2048 KiB
Boot2: 2048 KiB
RPMB: 128 KiB
User area: 14.68 GiB(15,758,000,128 bytes)
Cache size: 64 MiB
Partition configuration: 0x48
Boot acknowledge is sent during the boot operation
Boot partition 1 is enabled for boot
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x01
Bus width: x4 (sdr/ddr), boot mode: sdr(default), reset bus width to x1 sdr(default)
Boot area write protection: 0x00
Power-on write protection: possible
Permanent write protection: possible
Lock status: not locked
crypto state: encrypted?
Selected: [SAMSUNG] moviNAND KMVTU000LM-B503/16GB(8GB) (BGA153)
Click to expand...
always visit sticky thread first
New UFI eMMC Adapter not properly connected - MartviewForum

  • Like
Reactions: Jane1
salvo3c5

salvo3c5

Junior Member
Jan 5, 2019
1
0

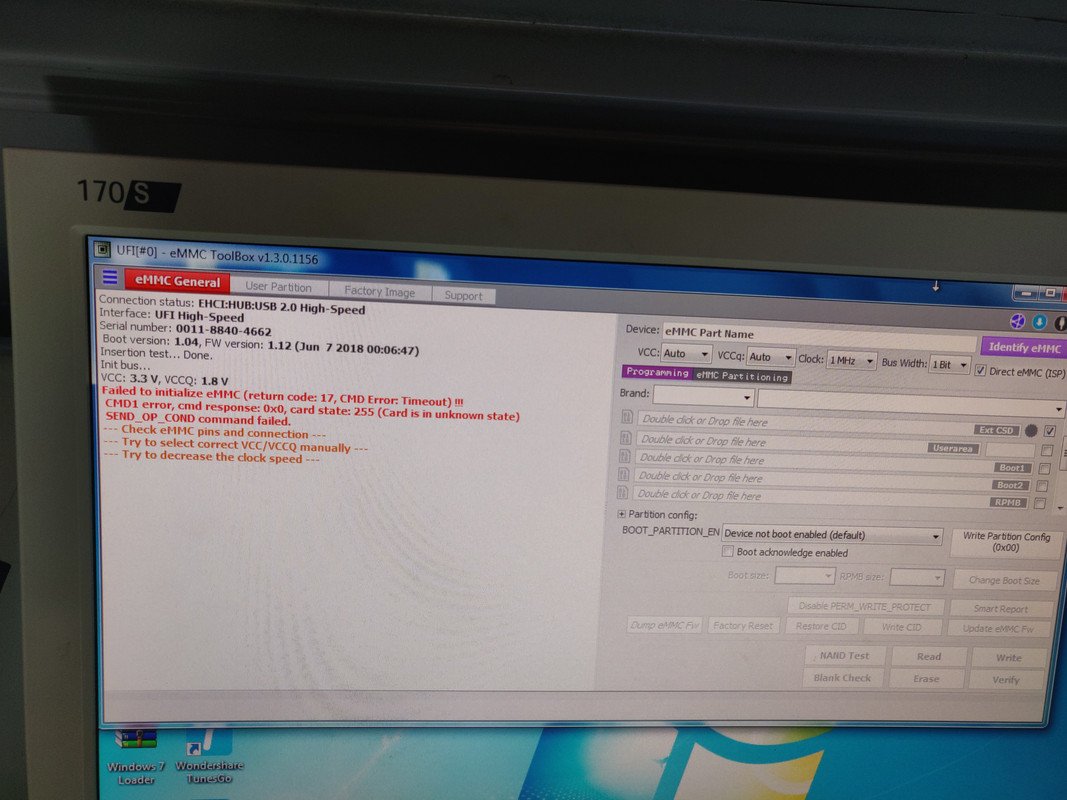

I bought a new ufi box, I connect everything with isp pineut as per the scheme and gives me back an error. I'm sure the memory is working.

Madgoeslim

Madgoeslim

Product Manager
Aug 6, 2018
149
872
Indonesia
salvo3c5 said:
I bought a new ufi box, I connect everything with isp pineut as per the scheme and gives me back an error. I'm sure the memory is working.
Click to expand...


Hello,

Basically everytime Direct eMMC (ISP) is checklist,
UFI Software will auto set VCC to 3,3V, VCCq to 1,8 V, Clock to 4Mhz, and Bus Widht to 1 bit.

But you can also manually set that value as your needs, exept for bus width.

For best performance, we always recommended to use USB to DC 5V External Power cable to the box during ISP job.
This is mandatory, bacause USB power from PC or laptop may not have enough voltage to supply the box and during ISP connection.

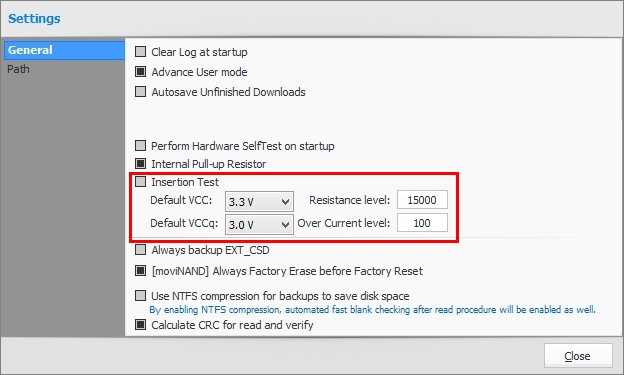

For VCC and VCCq not properly connected issue during ISP, please go to setting, and uncheck Insertion Test.




Hope this can help and Gud Luck to you
B.R

  • Like
Reactions: safina_gsm and bronce
2

297079710

Junior Member
Jan 27, 2019
1
0
Hello sir ,every time l open the UFI BOX , I pop up these 3 windows,then close the 3 windows,it will be fine if i open it again. what is the problem?


Attachments

  • ~ZIJ)VAQ~SB68DJ(A394Q4S.png
    10.5 KB · Views: 73
  • JZ5%`(%Q]6E35EB5VP4G1_B.png
    14.4 KB · Views: 72
  • YI3%XD562]U[(DLVWS%9SF2.png
    21.2 KB · Views: 64
Last edited:
pok_oho

pok_oho

Junior Member
Feb 14, 2019
1
0
Dear sir
my ufi box closing automatically with few seconds using latest version

old version v1.2.0.419 working fine but i use new version (UFI_v1.3.0.1155 ) the software closed automatically

i try many methods still same problem

v1.2.0.419 installed & synchronize the file automatically closed

after i uninstalled & install new version automatically closed

i try new system & latest setup the same problem

old setup working fine no issue but latest not working please guide me to solve the issue
