Martview RB-03 - Universal BGA Reballing Platform

Post Success Reports Here Successfully Repaired/Dead Recovered Handset By Ufi Box

Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,158
India
Sonork ID
100.1614172

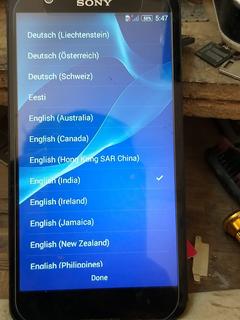

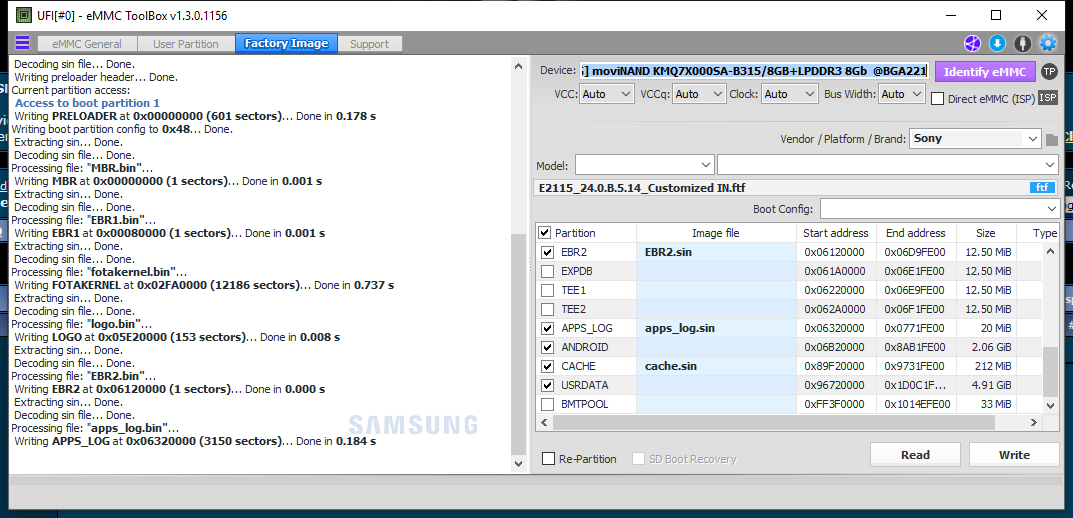

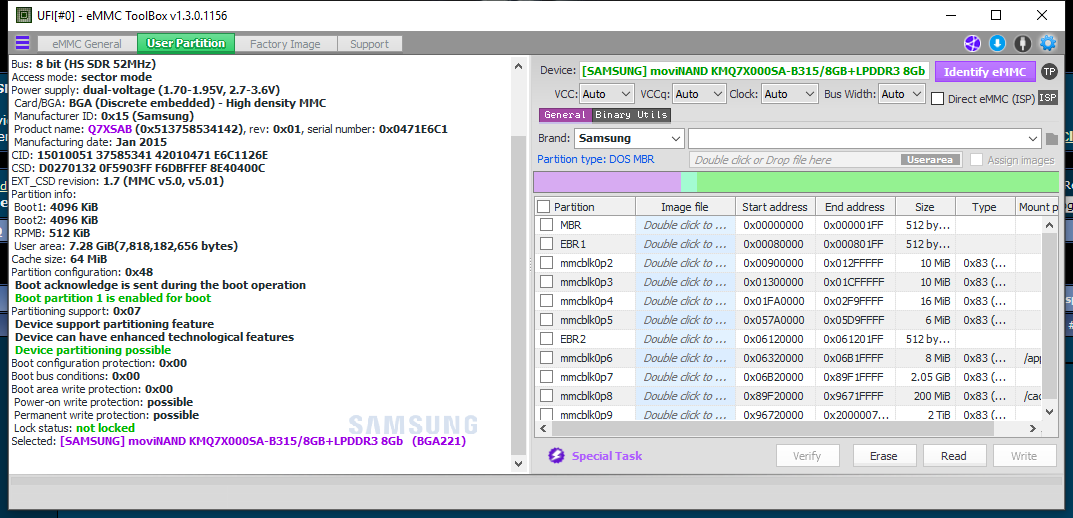

Sony Xperia E4 Daul (E2115) Stuck On Andriod Solved Reprogram Emmc With Ufi Box

Ufi-Log

Ufi-Log

Successfully Recovered Handset

V

Vijay2u2

Member
Apr 17, 2019
5
6
OPPO A37f PINLOCK REMOVED



Code:
Connection status: EHCI:HUB:USB 2.0 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-7863
 Boot version: 1.04, FW version: 1.10 (Mar 26 2017 14:24:34)
Insertion test... Done.
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
 Card/BGA: BGA (Discrete embedded) - High density MMC
 Manufacturer ID: 0x13 (Micron)
 Product name: Q2J96R (0x51324a393652), rev: 0x10, serial number: 0x03C78262
 Manufacturing date: Dec 2016
CID: 13014E51 324A3936 521003C7 8262C3D2
CSD: D07F0132 0F5913FF FFFFFFEF 924000A2
EXT_CSD revision: 1.7 (MMC v5.0, v5.01)
Partition info:
 Boot1: 4096 KiB
 Boot2: 4096 KiB
 RPMB: 4096 KiB
 User area: 14.68 GiB(15,758,000,128 bytes)
Cache size: 512 KiB
Hardware reset function: 1
Partition configuration: 0x38
 No boot acknowledge is sent (default)
 User area is enabled for boot
Partitioning support: 0x07
 Device support partitioning feature
 Device can have enhanced technological features
 Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x00
 Power-on write protection: possible
 Permanent write protection: possible
 Lock status: not locked
User area write protection: 0x10
 Password protection features: enabled
 Power-on write protection: possible
 Permanent write protection: not possible
 Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\Q2J96R_03C78262.ext_csd"
ANDROID System Info:
 platform: msm8916, cpu abi: arm64-v8a
 manufacturer: OPPO
 board: msm8916, name: A37f
 brand: OPPO, model: A37f()
 build id: LMY47V, version: 5.1.1 Lollipop (A37fEX_11_171209)
 build description: msm8916_64-user 5.1.1 LMY47V eng.root.20171209.165633 release-keys
Internal storage: 11.14 GiB
crypto state: unencrypted
Selected: [Micron] (JY950)MT29TZZZ5D6JKFRL-107/16GB   (BGA221)


Code:
Connection status: EHCI:HUB:USB 2.0 High-Speed
Interface: UFI High-Speed
Serial number: 0011-8840-7863
 Boot version: 1.04, FW version: 1.10 (Mar 26 2017 14:24:34)
Insertion test... Done.
VCCQ not properly connected
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 4MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
 Card/BGA: BGA (Discrete embedded) - High density MMC
 Manufacturer ID: 0x13 (Micron)
 Product name: Q2J96R (0x51324a393652), rev: 0x10, serial number: 0x03C78262
 Manufacturing date: Dec 2016
CID: 13014E51 324A3936 521003C7 8262C3D2
CSD: D07F0132 0F5913FF FFFFFFEF 924000A2
EXT_CSD revision: 1.7 (MMC v5.0, v5.01)
Partition info:
 Boot1: 4096 KiB
 Boot2: 4096 KiB
 RPMB: 4096 KiB
 User area: 14.68 GiB(15,758,000,128 bytes)
Scanning "/data" partition... Done.
Clear User Lock... Done.

Dr.sunilsingh

Dr.sunilsingh

Friend's Martview
Aug 2, 2018
402
823
india
Skype
[email protected]
Sonork ID
1681209
  • Like
  • Love
Reactions: recan21, K Rajesh, GSM KING MAKER and 2 others
pskbsng

pskbsng

Active Member
Mar 13, 2019
25
2

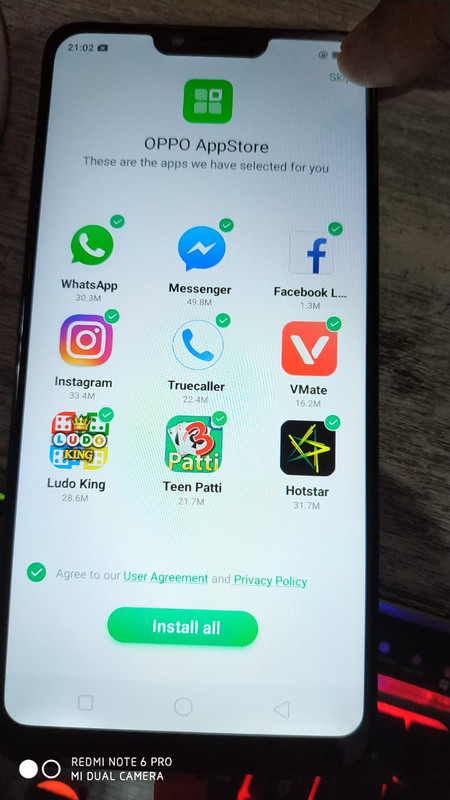

Oppo A5 pin/password/pin/pattern/frp reset
Via ISP connection ufi emmc tool


Sent From SM-A505F Using Martview Forum App

Last edited by a moderator:
  • Like
Reactions: recan21
