Post Success Reports Here Successfully Repaired/Dead Recovered Handset By Ufi Box

Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,158
India
Sonork ID
100.1614172

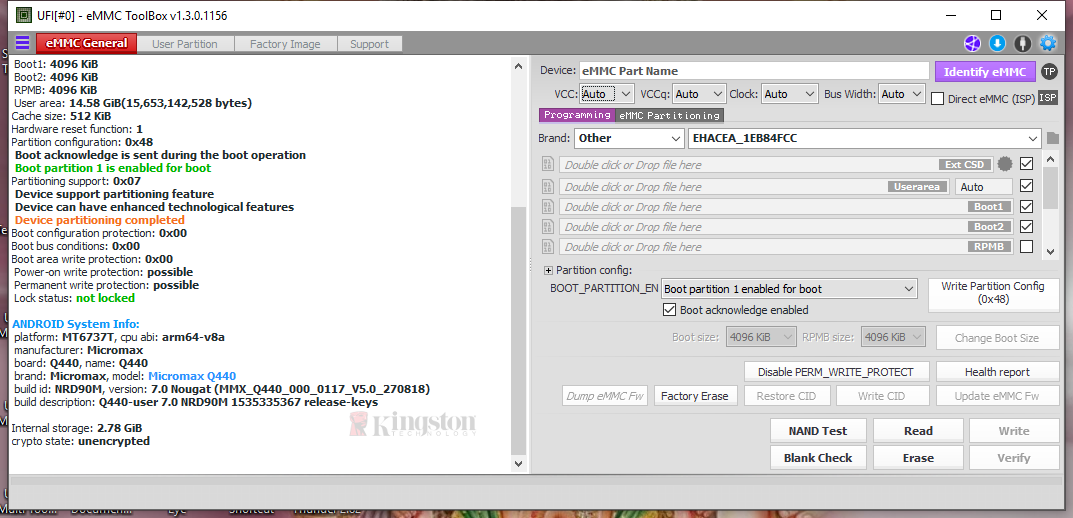

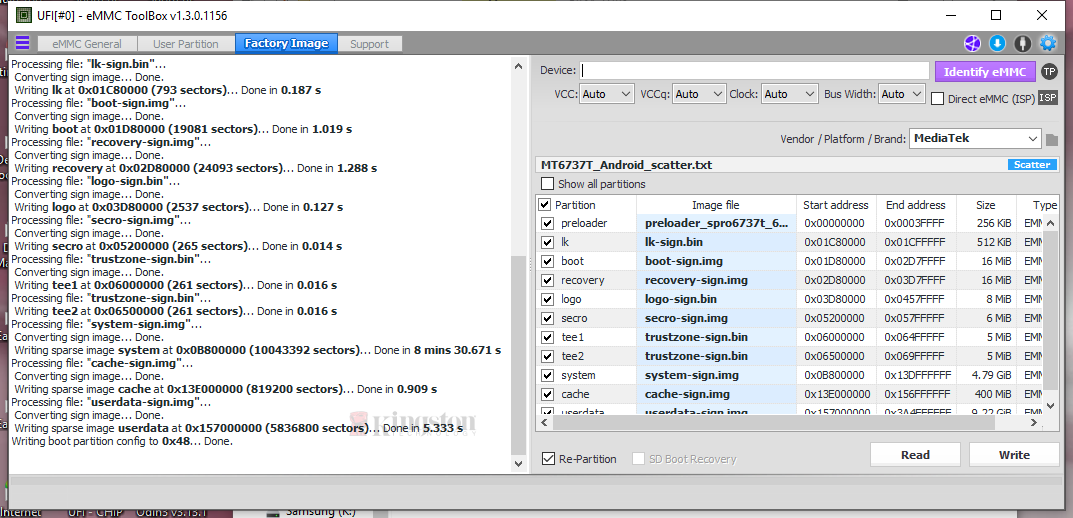

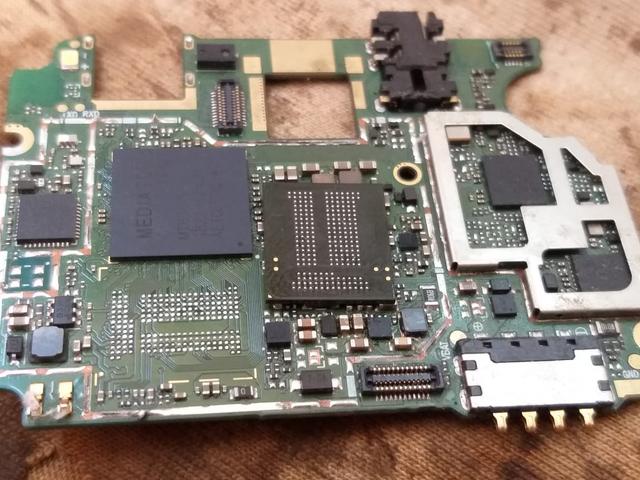

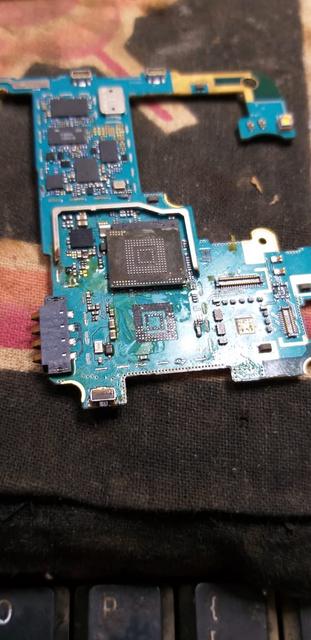

Micromax Q440 Always Make Mtk Port Problem Solve Replace Emmc Kingston To Kingston + Reprogram With Ufi-Box Set Alive Done

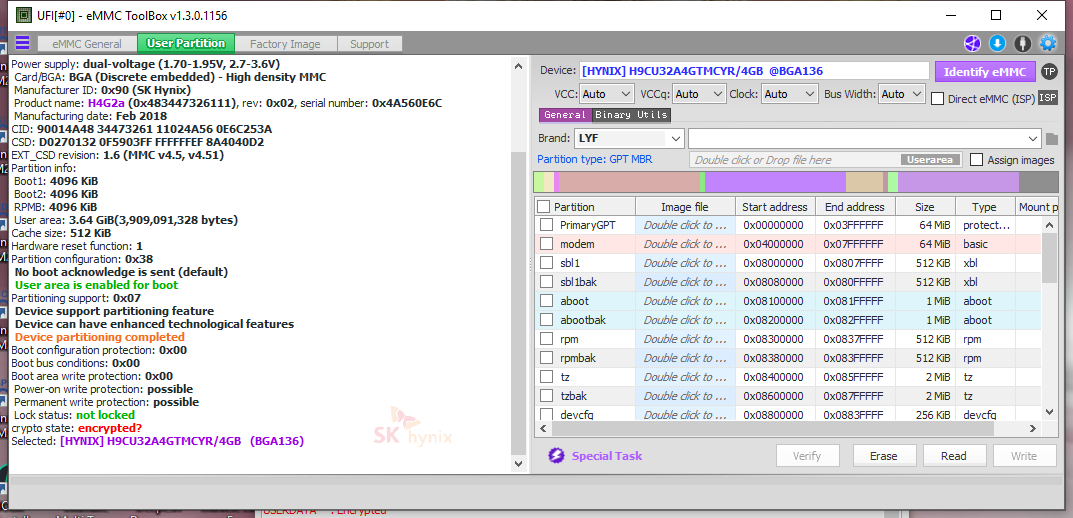

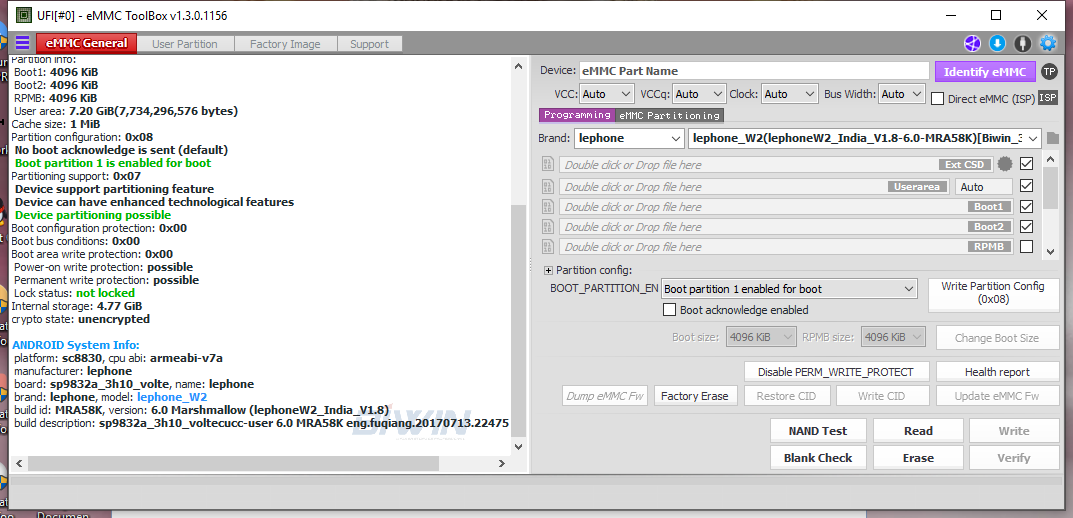

Ufi-Box Log

Set successfully recovered

  • Like
Reactions: ashish800, Shohag_bd, Ngoclamgsm and 2 others
ilyasrao

ilyasrao

Active Member
Nov 15, 2016
37
25
Y625-U32 READED SUCCESSFULLY QDloader 9008 mode
platform: msm8610, cpu abi: armeabi-v7a
manufacturer: HUAWEI
board: Y625-U32, name: Y625-U32
brand: HUAWEI, model: HUAWEI Y625-U32
build id: HUAWEIY625-U32, version: 4.4.2 Lollipop (Y625-U32V100R001C328B105)
build description: 8212-user 4.4.2 HUAWEIY625-U32 C328B105 ota-rel-keys,release-keys

Reading gpt_main0 at 0x00000000-0x000043FF size: 17 KiB... Done.
Reading sbl1 at 0x00004400-0x000843FF size: 512 KiB... Done.
Reading sdi at 0x00084400-0x000A43FF size: 128 KiB... Done.
Reading aboot at 0x000A4400-0x001243FF size: 512 KiB... Done.
Reading rpm at 0x00124400-0x001A13FF size: 500 KiB... Done.
Reading tz at 0x001A1400-0x0021E3FF size: 500 KiB... Done.
Reading pad at 0x0021E400-0x0031E3FF size: 1 MiB... Done.
Reading modemst1 at 0x0031E400-0x0049E3FF size: 1.50 MiB... Done.
Reading modemst2 at 0x0049E400-0x0061E3FF size: 1.50 MiB... Done.
Reading misc at 0x0061E400-0x0071E3FF size: 1 MiB... Done.
Reading fsc at 0x0071E400-0x0071E7FF size: 1 KiB... Done.
Reading ssd at 0x0071E800-0x007207FF size: 8 KiB... Done.
Reading modem at 0x04000000-0x07FFFFFF size: 64 MiB... Done.
Reading DDR at 0x08000000-0x08007FFF size: 32 KiB... Done.
Reading boot at 0x08008000-0x08A07FFF size: 10 MiB... Done.
Reading system at 0x08A08000-0x60207FFF size: 1.37 GiB... Done.
Reading persist at 0x60208000-0x62207FFF size: 32 MiB... Done.
Reading cache at 0x62208000-0x687A17FF size: 101.60 MiB... Done.
Reading recovery at 0x687A1800-0x691A17FF size: 10 MiB... Done.
Reading logo at 0x691A1800-0x697A17FF size: 6 MiB... Done.
Reading fsg at 0x697A1800-0x699217FF size: 1.50 MiB... Done.
Reading userdata at 0x69921800-0xEBFFBDFF size: 2.04 GiB... Done.
Files saved to \\I:\Huawei\Y625-U32\

VIDEO WILL UPLOAD VERY SOON

  • Like
Reactions: Admin
Y

yuganta

Member
Dec 5, 2016
12
6
Morigaon,Assam,India

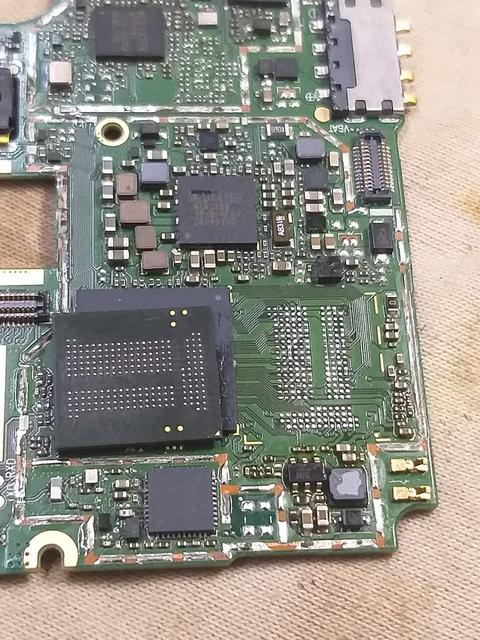

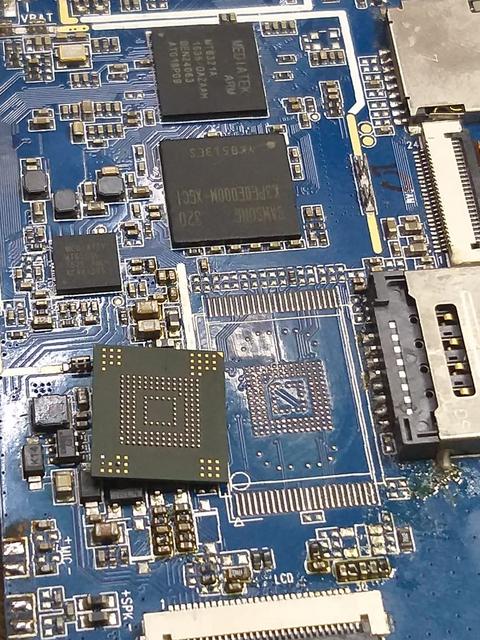

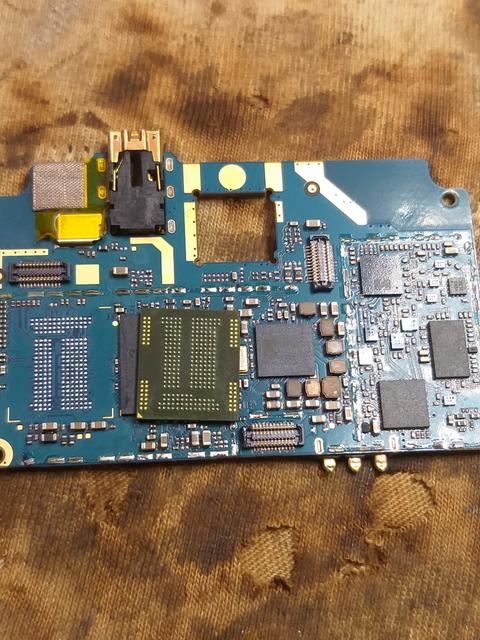

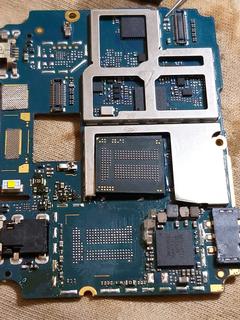

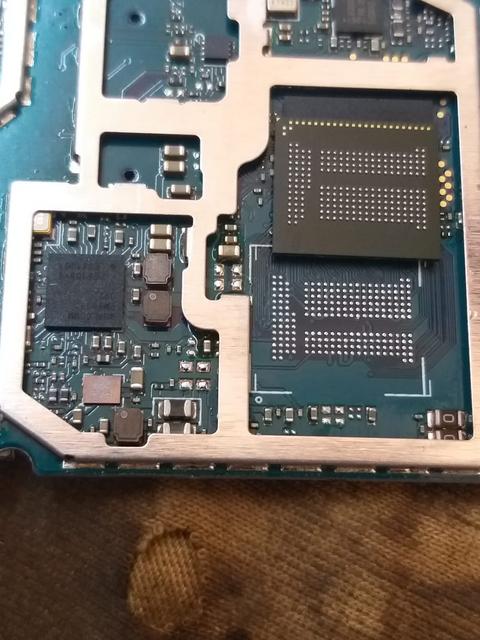

Clout X-425 Shavit. Hang on logo problem not solved by flashing finally remove emmc reprogram with ufi box job done.8


Attachments

  • IMG_20190313_233606.jpg
    77.1 KB · Views: 38
  • IMG_20190313_234217.jpg
    59.8 KB · Views: 37
S

SahilOfficial

Active Member
Aug 8, 2018
16
4
India

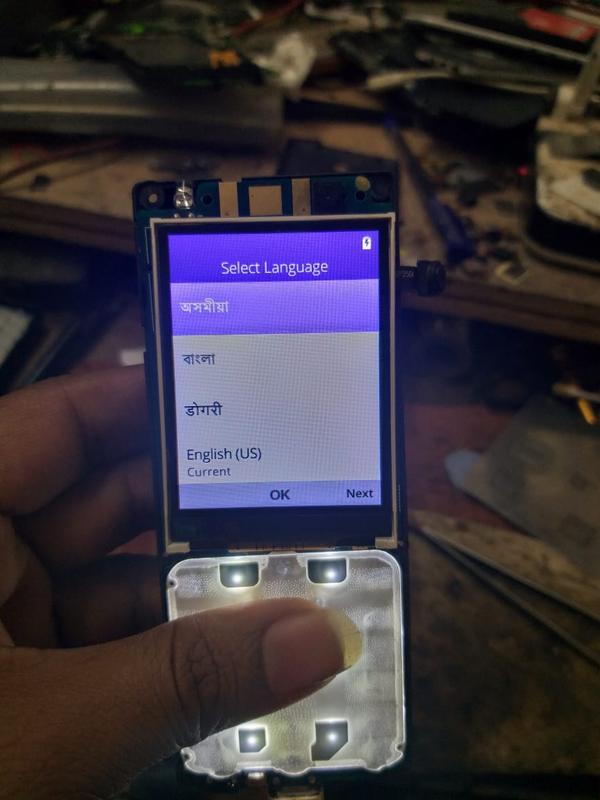

LYF Jio F41T (Black) Blue screen fix with flash.

Connecting to Download port...
Make sure battery is fully charged before flashing !!!
Power off the phone, Disconnect and reconnect the battery(if possible), Hold the VOL DOWN or VOL UP+DOWN and connect USB cable
Scanning Download port... Done.
Detected SPRD U2S Diag (COM6)
Connection status: XHCI:HUB3:HUB3:USB 2.0 High-Speed
USB Driver: [DriverCoding Corporation] sprdvcom, version: 2.0.0.114, date: 6-27-2014
Boot id: SPRD3
Sending FDL ... Done.
Boot version: Spreadtrum Boot Block version 1.1
Change baudrate to 460800 ... Done.
Sending NAND_FDL ... Done.
Reading l_fixnv1, size: 1 MiB... Done.
Reading prodnv, size: 5 MiB... Done.
Reading miscdata, size: 1 MiB... Done.
Repartitioning ... Done.
Downloading l_fixnv1, size: 362.86 KiB... Done.
Downloading prodnv, size: 5 MiB... Done.
Downloading miscdata, size: 1 MiB... Done.
Downloading usbmsc, size: 18.36 MiB... Done.
Erasing uboot... Done.
Downloading splloader, size: 32 KiB... Done.
Downloading l_modem, size: 13.66 MiB... Done.
Downloading l_ldsp, size: 1.50 MiB... Done.
Downloading l_gdsp, size: 2.88 MiB... Done.
Downloading pm_sys, size: 22 KiB... Done.
Downloading wcnfdl, size: 7.12 KiB... Done.
Downloading wcnmodem, size: 1.22 MiB... Done.
Downloading boot, size: 11.91 MiB... Done.
Downloading recovery, size: 12.48 MiB... Done.
Downloading system, size: 344.64 MiB... Done.
Downloading userdata, size: 10.20 MiB... Done.
Downloading logo, size: 76.05 KiB... Done.
Downloading fbootlogo, size: 76.05 KiB... Done.
Downloading cache, size: 5.22 MiB... Done.
Erasing l_runtimenv1... Done.
Downloading persist, size: 2 MiB... Done.
Downloading sysinfo, size: 5 MiB... Done.
Downloading uboot, size: 455 KiB... Done.
Completed in 4 mins 17.321 s
