Post Here SucessFully Story Repair Your Handset With Easy-Jtag Plus

pooltec

pooltec

Active Member
Sep 27, 2019
17
1
Estimados colegas, por favor necesito ayuda, me trajeron un J701M completamente muerto, en otro lugar parpadearon y al final todo el firmware estaba dañado, tanto que tampoco pude ver el binario original, al conectarlo por ISP a easyjtag no había partición, y cuando se conectó a la PC a través de USB, solo apareció y apareció el controlador exynos 7870.
Luego me reconecté a través de ISP a easyjtag, hice un borrado de emmc y en wirite vendí un firmware completo del binario 3 y todo está bien, pero no se enciende y solo genera el controlador exynos 7870 en la PC, por favor pregunte a este grupo grande por ayuda de técnicos a los que tengo el placer de pertenecer, saludos y muchas bendiciones

pooltec

pooltec

Active Member
Sep 27, 2019
17
1
Estimados colegas, por favor necesito ayuda, me trajeron un J701M completamente muerto, en otro lugar parpadearon y al final todo el firmware estaba dañado, tanto que tampoco pude ver el binario original, al conectarlo por ISP a easyjtag no había partición, y cuando se conectó a la PC a través de USB, solo apareció y apareció el controlador exynos 7870.
Luego me reconecté a través de ISP a easyjtag, hice un borrado de emmc y en wirite vendí un firmware completo del binario 3 y todo está bien, pero no se enciende y solo genera el controlador exynos 7870 en la PC, por favor pregunte a este grupo grande por ayuda de técnicos a los que tengo el placer de pertenecer, saludos y muchas bendiciones

Dr.sunilsingh

Dr.sunilsingh

Friend's Martview
Aug 2, 2018
402
823
india
Skype
[email protected]
Sonork ID
1681209

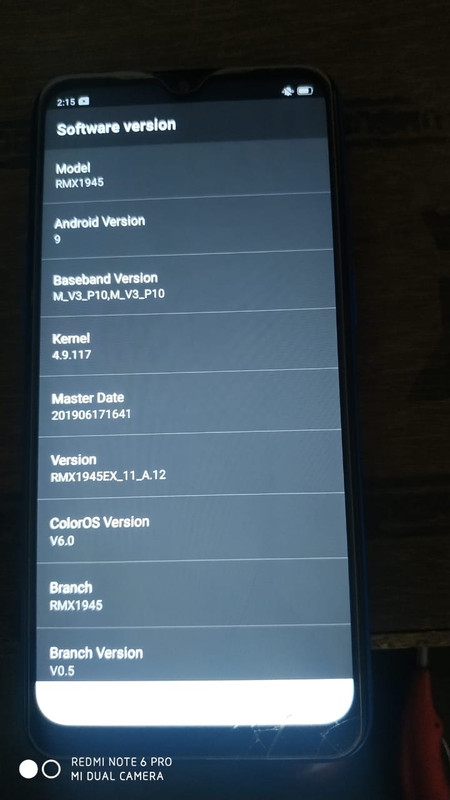

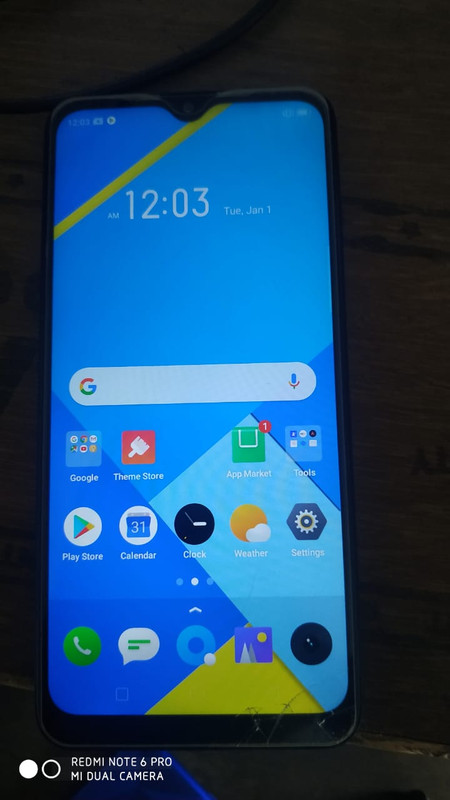

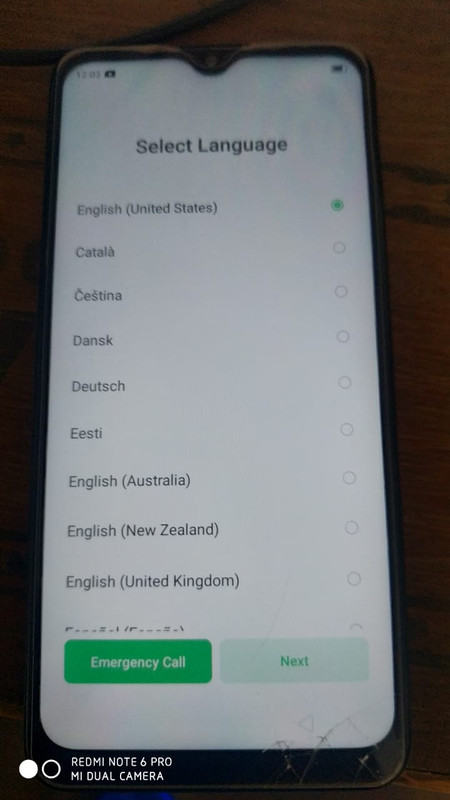

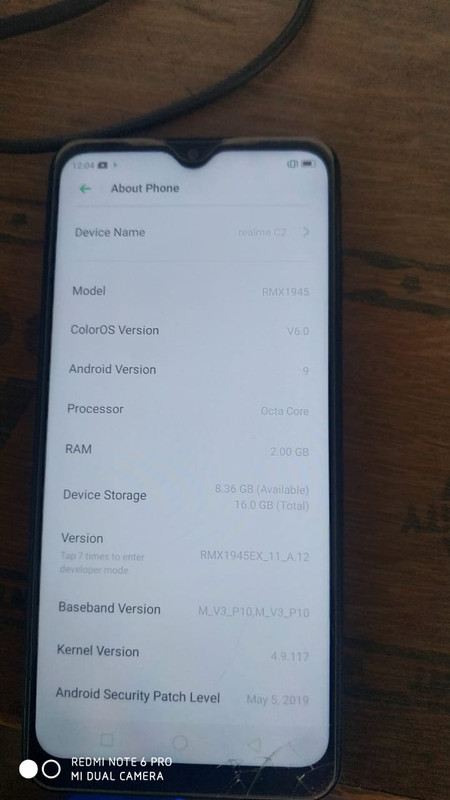

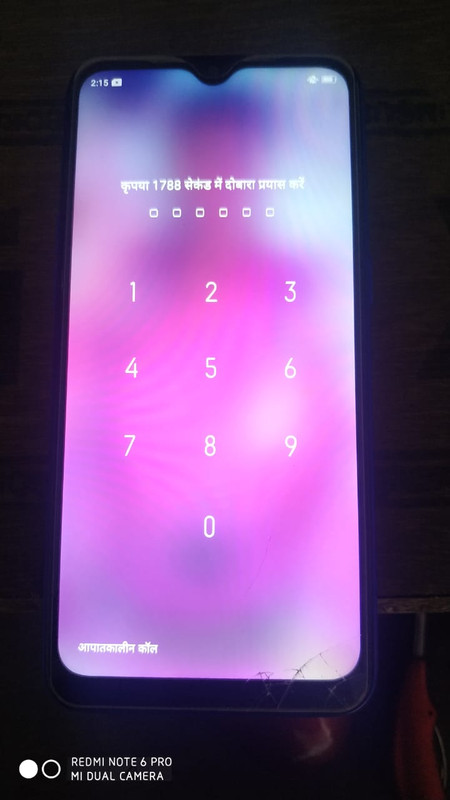

Realme C2 ( RMX1941 / RMX1945 ) Remove Userlocks + Frp Lock Done By Easy Jtag Plus




6990


6989


6988







​
Dr.Research-Center-Team

  • Like
Reactions: ranaawaiss
.:::Ghost_sam:::.

.:::Ghost_sam:::.

Junior Member
Jun 15, 2017
2
2
India
Skype
9440905805
Partition name: misc
Address: 00002F300000, size: 000000100000
eMMC switching to ROM1
Reading partition...
Done reading partition. Read speed: 2833.54 Kb/s

All done time: [00:00:05:985]

Setting interface to EasyJtag2/ISP
Setting bus width to 1 Bit
Setting frequence to 24 MHz
CMD Pullup Level: 2111 mV
CMD Active Level: 2750 mV
EMMC Device Information :
EMMC CID: 150100524436344D4201CC03D0D82513
EMMC CSD: D02701320F5903FFF6DBFFEF8E40400D
EMMC Manufacture : SAMSUNG , EMMC NAME: RD64MB , HEX: 524436344D42 , S/N: CC03D0D8 , rev. 0x01
EMMC Manufacture ID: 0x15 , OEM ID: 0x00 , Device Type: BGA (Discrete embedded) , Date: 2/2018
EMMC ROM 1 (Main User Data) Capacity: 29820 MB (000747C00000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 KB (000000400000) Counter: 27301 , Response: Not Clean
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD Information :
Extended CSD rev: 1.8 (MMC 5.1)
Boot configuration [PARTITION_CONFIG]: 0x38 , Boot from: ROM1 (Main User Area)
Boot Bus Config: 0x00 , width 1bit
H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled
Supported partition features [PARTITIONING_SUPPORT]: 0x07
Device supports partitioning features
Device can have enhanced technological features in partitions and user data area
Device can have extended partitions attribute
Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00
Backup saved: RD64MB_CC03D0D8_20191020_123511.extcsd
EMMC Init completed.

Operation: Write by vendor (Qualcomm/HiSilicon/Omap)

Partition name: misc
Filename: Factory reset keep photos.bin , Offset: 00002F300000 , filesize: 131072 bytes
eMMC switching to ROM1
Erasing partition...
Writing partition...
Done writing partition. Write speed: 1330.67 KB/s

All done time: [00:00:03:632]

Setting interface to EasyJtag2/ISP
Setting bus width to 1 Bit
Setting frequence to 24 MHz
CMD Pullup Level: 2110 mV
CMD Active Level: 2749 mV
EMMC Device Information :
EMMC CID: 150100524436344D4201CC03D0D82513
EMMC CSD: D02701320F5903FFF6DBFFEF8E40400D
EMMC Manufacture : SAMSUNG , EMMC NAME: RD64MB , HEX: 524436344D42 , S/N: CC03D0D8 , rev. 0x01
EMMC Manufacture ID: 0x15 , OEM ID: 0x00 , Device Type: BGA (Discrete embedded) , Date: 2/2018
EMMC ROM 1 (Main User Data) Capacity: 29820 MB (000747C00000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 KB (000000400000) Counter: 27301 , Response: Not Clean
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD Information :
Extended CSD rev: 1.8 (MMC 5.1)
Boot configuration [PARTITION_CONFIG]: 0x38 , Boot from: ROM1 (Main User Area)
Boot Bus Config: 0x00 , width 1bit
H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled
Supported partition features [PARTITIONING_SUPPORT]: 0x07
Device supports partitioning features
Device can have enhanced technological features in partitions and user data area
Device can have extended partitions attribute
Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00
Backup saved: RD64MB_CC03D0D8_20191020_123518.extcsd
EMMC Init completed.

Scanning soft partitions
GPT header is found and is valid
Partition: oppodycnvbk, [000000005000 - 000000A05000], size: 000000A00000 (10.0 MB)
Partition: oppostanvbk, [000000A05000 - 000001405000], size: 000000A00000 (10.0 MB)
Partition: modemst1, [000001405000 - 000001585000], size: 000000180000 (1.50 MB)
Partition: modemst2, [000001585000 - 000001705000], size: 000000180000 (1.50 MB)
Partition: persist, [000001705000 - 000003705000], size: 000002000000 (32.0 MB)
Partition: opporeserve1, [000003705000 - 000003F05000], size: 000000800000 (8.00 MB)
Partition: opporeserve2, [000003F05000 - 000007F05000], size: 000004000000 (64.0 MB)
Partition: fsc, [000007F05000 - 000007F05400], size: 000000000400 (1.00 KB)
Partition: ssd, [000007F06000 - 000007F08000], size: 000000002000 (8.00 KB)
Partition: sbl1, [000007F08000 - 000007F88000], size: 000000080000 (512. KB)
Partition: rpm, [000007F88000 - 000008008000], size: 000000080000 (512. KB)
Partition: tz, [000008008000 - 000008208000], size: 000000200000 (2.00 MB)
Partition: devcfg, [000008208000 - 000008248000], size: 000000040000 (256. KB)
Partition: sbl1bak, [000008248000 - 0000082C8000], size: 000000080000 (512. KB)
Partition: rpmbak, [0000082C8000 - 000008348000], size: 000000080000 (512. KB)
Partition: tzbak, [000008348000 - 000008548000], size: 000000200000 (2.00 MB)
Partition: devcfgbak, [000008548000 - 000008588000], size: 000000040000 (256. KB)
Partition: dsp, [000008588000 - 000009588000], size: 000001000000 (16.0 MB)
Partition: DDR, [000009800000 - 000009808000], size: 000000008000 (32.0 KB)
Partition: fsg, [000009808000 - 000009C08000], size: 000000400000 (4.00 MB)
Partition: sec, [000009C08000 - 000009C0C000], size: 000000004000 (16.0 KB)
Partition: aboot, [000009C0C000 - 000009D0C000], size: 000000100000 (1.00 MB)
Partition: abootbak, [000009D0C000 - 000009E0C000], size: 000000100000 (1.00 MB)
Partition: modem, [000009E0C000 - 000011E0C000], size: 000008000000 (128. MB)
Partition: dtbo, [000011E0C000 - 00001260C000], size: 000000800000 (8.00 MB)
Partition: vbmeta, [00001260C000 - 00001261C000], size: 000000010000 (64.0 KB)
Partition: boot, [00001261C000 - 00001661C000], size: 000004000000 (64.0 MB)
Partition: recovery, [00001661C000 - 00001A61C000], size: 000004000000 (64.0 MB)
Partition: devinfo, [00001A61C000 - 00001A71C000], size: 000000100000 (1.00 MB)
Partition: splash, [00001A800000 - 00001B300000], size: 000000B00000 (11.0 MB)
Partition: LOGO, [00001B300000 - 00001D300000], size: 000002000000 (32.0 MB)
Partition: DRIVER, [00001D300000 - 00001F300000], size: 000002000000 (32.0 MB)
Partition: cache, [00001F300000 - 00002F300000], size: 000010000000 (256. MB)
Partition: misc, [00002F300000 - 00002F400000], size: 000000100000 (1.00 MB)
Partition: keystore, [00002F400000 - 00002F480000], size: 000000080000 (512. KB)
Partition: config, [00002F480000 - 00002F488000], size: 000000008000 (32.0 KB)
Partition: log, [00002F488000 - 000033488000], size: 000004000000 (64.0 MB)
Partition: oem, [000033488000 - 000033588000], size: 000000100000 (1.00 MB)
Partition: limits, [000033800000 - 000033808000], size: 000000008000 (32.0 KB)
Partition: mota, [000034000000 - 000034080000], size: 000000080000 (512. KB)
Partition: dip, [000034080000 - 000034180000], size: 000000100000 (1.00 MB)
Partition: mdtp, [000034180000 - 000036180000], size: 000002000000 (32.0 MB)
Partition: syscfg, [000036180000 - 000036200000], size: 000000080000 (512. KB)
Partition: mcfg, [000036200000 - 000036600000], size: 000000400000 (4.00 MB)
Partition: lksecapp, [000036800000 - 000036820000], size: 000000020000 (128. KB)
Partition: cmnlib, [000036820000 - 000036920000], size: 000000100000 (1.00 MB)
Partition: cmnlib64, [000036920000 - 000036A20000], size: 000000100000 (1.00 MB)
Partition: keymaster, [000036A20000 - 000036B20000], size: 000000100000 (1.00 MB)
Partition: lksecappbak, [000036B20000 - 000036B40000], size: 000000020000 (128. KB)
Partition: cmnlibbak, [000036B40000 - 000036C40000], size: 000000100000 (1.00 MB)
Partition: cmnlib64bak, [000036C40000 - 000036D40000], size: 000000100000 (1.00 MB)
Partition: keymasterbak, [000036D40000 - 000036E40000], size: 000000100000 (1.00 MB)
Partition: apdp, [000037000000 - 000037040000], size: 000000040000 (256. KB)
Partition: msadp, [000037040000 - 000037080000], size: 000000040000 (256. KB)
Partition: dpo, [000037080000 - 000037082000], size: 000000002000 (8.00 KB)
Partition: logdump, [000037082000 - 00003B082000], size: 000004000000 (64.0 MB)
Partition: vm-kystore, [00003B082000 - 00003B182000], size: 000000100000 (1.00 MB)
Partition: vm-data, [00003B182000 - 00003BB82000], size: 000000A00000 (10.0 MB)
Partition: hyp, [00003C000000 - 00003C800000], size: 000000800000 (8.00 MB)
Partition: vm-system, [00003C800000 - 000040800000], size: 000004000000 (64.0 MB)
Partition: vm-linux, [000040800000 - 000042800000], size: 000002000000 (32.0 MB)
Partition: system, [000042800000 - 000119100000], size: 0000D6900000 (3.35 GB)
Partition: vendor, [000119100000 - 00015B060000], size: 000041F60000 (1.03 GB)
Partition: userdata, [00015B800000 - 000747BFBE00], size: 0005EC3FBE00 (23.6 GB)
GPT header successfully parsed

Get firmware version

Manufacturer = OPPO
CPU Abi = arm64-v8a
Android release = 8.1.0
Brand = OPPO
Device = CPH1829
Model = CPH1829
Firmware version = CPH1829EX_11_A.24
Firmware date = Sat Aug 3 10:19:05 CST 2019


Attachments

  • oppo 1809.PNG
    oppo 1809.PNG
    676.4 KB · Views: 33
  • oppo 1809.PNG
    oppo 1809.PNG
    676.4 KB · Views: 34
.::THE ROCK::.

.::THE ROCK::.

Friend's Martview
May 16, 2019
101
45
NCR FARIDABAD
ferouzkassim

ferouzkassim

Active Member
Oct 11, 2018
51
34
Uganda
Skype
ferouz_kassim
G532f samsung boot repair done




Setting interface to EasyJtag2/E-Socket
Setting bus width to 1 Bit
Setting frequence to 1 MHz
EMMC Device Information :
EMMC CID: 90014A4838473475920123106D2D25B5
EMMC CSD: D02701320F5903FFFFFFFFE78A40002B
EMMC Manufacture : SKHYNIX , EMMC NAME: H8G4u , HEX: 483847347500 , S/N: 23106D2D , rev. 0x01
EMMC Manufacture ID: 0x90 , OEM ID: 0x4A , Device Type: BGA (Discrete embedded) , Date: 2/2018
EMMC ROM 1 (Main User Data) Capacity: 7456 MB (0001D2000000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 KB (000000400000) Counter: 0 , Response: Maybe not clean
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD Information :
Extended CSD rev: 1.7 (MMC 5.0, MMC 5.01)
Boot configuration [PARTITION_CONFIG]: 0x48 , Boot from: ROM2 (Boot partition 1)
Boot Bus Config: 0x00 , width 1bit
H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled
Supported partition features [PARTITIONING_SUPPORT]: 0x07
Device supports partitioning features
Device can have enhanced technological features in partitions and user data area
Device can have extended partitions attribute
Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00
Backup saved: H8G4u_23106D2D_20200222_201811.extcsd
EMMC Init completed.

Operation: Writing all eMMC Regions...

Operation: Writing BootConfig ...
Reg: 179 Value: 0x48
Reg: 177 Value: 0x00
Reg: 162 Value: 0x01
Done

Writing to: ROM2 , start: 0x000000000000 , size: 0x000000400000
Filename: EMMC_QN16BB_ROM2_000000000000_000000400000.bin
eMMC switching to ROM2
Writing partition...
Error writing at address: 000000270000 , error: -8, DATA SND CRC Error(Small ROM Size, maybe) ... Retry #1
Error writing at address: 000000270000 , error: -1, CMD Timeout Error ... Retry #2
Error writing at address: 000000270000 , error: -1, CMD Timeout Error ... Retry #3
Too many errors. Writing has been stopped

Setting interface to EasyJtag2/E-Socket
Setting bus width to 1 Bit
Setting frequence to 1 MHz
EMMC Device Information :
EMMC CID: 90014A4838473475920123106D2D25B5
EMMC CSD: D02701320F5903FFFFFFFFE78A40002B
EMMC Manufacture : SKHYNIX , EMMC NAME: H8G4u , HEX: 483847347500 , S/N: 23106D2D , rev. 0x01
EMMC Manufacture ID: 0x90 , OEM ID: 0x4A , Device Type: BGA (Discrete embedded) , Date: 2/2018
EMMC ROM 1 (Main User Data) Capacity: 7456 MB (0001D2000000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 KB (000000400000) Counter: 0 , Response: Maybe not clean
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD Information :
Extended CSD rev: 1.7 (MMC 5.0, MMC 5.01)
Boot configuration [PARTITION_CONFIG]: 0x48 , Boot from: ROM2 (Boot partition 1)
Boot Bus Config: 0x00 , width 1bit
H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled
Supported partition features [PARTITIONING_SUPPORT]: 0x07
Device supports partitioning features
Device can have enhanced technological features in partitions and user data area
Device can have extended partitions attribute
Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00
Backup saved: H8G4u_23106D2D_20200222_201931.extcsd
EMMC Init completed.

Opening file: GRANDPPLTE_CIS_SER.pit

Pit: GRANDPPLTE_CIS_SER.pit
Entry count: 34

The size of the last section has been updated

BL_G532FXWU1ASB1_CL15382149_QB21998039_REV00_user_low_ship_MULTI_CERT.tar.md5
The list of files in the firmware:
preloader.img
lk.bin
param.bin
trustzone.bin
efuse.img

Setting interface to EasyJtag2/E-Socket
Setting bus width to 1 Bit
Setting frequence to 1 MHz
EMMC Device Information :
EMMC CID: 90014A4838473475920123106D2D25B5
EMMC CSD: D02701320F5903FFFFFFFFE78A40002B
EMMC Manufacture : SKHYNIX , EMMC NAME: H8G4u , HEX: 483847347500 , S/N: 23106D2D , rev. 0x01
EMMC Manufacture ID: 0x90 , OEM ID: 0x4A , Device Type: BGA (Discrete embedded) , Date: 2/2018
EMMC ROM 1 (Main User Data) Capacity: 7456 MB (0001D2000000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 KB (000000400000) Counter: 0 , Response: Maybe not clean
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD Information :
Extended CSD rev: 1.7 (MMC 5.0, MMC 5.01)
Boot configuration [PARTITION_CONFIG]: 0x48 , Boot from: ROM2 (Boot partition 1)
Boot Bus Config: 0x00 , width 1bit
H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled
Supported partition features [PARTITIONING_SUPPORT]: 0x07
Device supports partitioning features
Device can have enhanced technological features in partitions and user data area
Device can have extended partitions attribute
Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00
Backup saved: H8G4u_23106D2D_20200222_201940.extcsd
EMMC Init completed.

Operation: Write by vendor (Samsung)

Creating GPT-partitioninig
Writing PrimaryGPT at address: 000000000000
Writing BackupGPT at address: 0001D1FFBE00
Writing PIT at address: 000000004400
GPT-partitioning done

Unpacking file: preloader.img
Unpacking file: lk.bin
Unpacking file: efuse.img
Unpacking file: trustzone.bin
Unpacking file: param.bin

Partition name: BOOTLOADER
Filename: preloader.img , Offset: 000000000000 , filesize: 170240 bytes
eMMC switching to ROM2
Erasing partition...
Error erasing at address: 000000098000 , error: -8, DATA SND CRC Error(Small ROM Size, maybe) ... Retry #1
Error erasing at address: 000000098000 , error: -1, CMD Timeout Error ... Retry #2
Error erasing at address: 000000098000 , error: -1, CMD Timeout Error ... Retry #3
Too many errors. Erasing has been stopped

Setting interface to EasyJtag2/E-Socket
Setting bus width to 1 Bit
Setting frequence to 1 MHz
EMMC Device Information :
EMMC CID: 90014A4838473475920123106D2D25B5
EMMC CSD: D02701320F5903FFFFFFFFE78A40002B
EMMC Manufacture : SKHYNIX , EMMC NAME: H8G4u , HEX: 483847347500 , S/N: 23106D2D , rev. 0x01
EMMC Manufacture ID: 0x90 , OEM ID: 0x4A , Device Type: BGA (Discrete embedded) , Date: 2/2018
EMMC ROM 1 (Main User Data) Capacity: 7456 MB (0001D2000000)
EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 KB (000000400000) Counter: 0 , Response: Maybe not clean
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD Information :
Extended CSD rev: 1.7 (MMC 5.0, MMC 5.01)
Boot configuration [PARTITION_CONFIG]: 0x48 , Boot from: ROM2 (Boot partition 1)
Boot Bus Config: 0x00 , width 1bit
H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled
Supported partition features [PARTITIONING_SUPPORT]: 0x07
Device supports partitioning features
Device can have enhanced technological features in partitions and user data area
Device can have extended partitions attribute
Partition Settings [PARTITION_SETTING_COMPLETED]: 0x00
Backup saved: H8G4u_23106D2D_20200222_202012.extcsd
EMMC Init completed.

Operation: Write by vendor (Samsung)

Creating GPT-partitioninig
Writing PrimaryGPT at address: 000000000000
Writing BackupGPT at address: 0001D1FFBE00
Writing PIT at address: 000000004400
GPT-partitioning done

Unpacking file: preloader.img
Unpacking file: lk.bin
Unpacking file: efuse.img
Unpacking file: trustzone.bin
Unpacking file: param.bin

Partition name: BOOTLOADER
Filename: preloader.img , Offset: 000000000000 , filesize: 170240 bytes
eMMC switching to ROM2
Erasing partition...
Writing partition...
Done writing partition. Write speed: 57.50 KB/s
Partition name: LK
Filename: lk.bin , Offset: 000001000000 , filesize: 590336 bytes
eMMC switching to ROM1
Erasing partition...
Writing partition...
Done writing partition. Write speed: 97.91 KB/s
Partition name: EFUSE
Filename: efuse.img , Offset: 000001B80000 , filesize: 768 bytes
eMMC switching to ROM1
Erasing partition...
Writing partition...
Done writing partition. Write speed: 30.84 KB/s
Partition name: TEE1
Filename: trustzone.bin , Offset: 000001C00000 , filesize: 324352 bytes
eMMC switching to ROM1
Erasing partition...
Writing partition...
Done writing partition. Write speed: 118.22 KB/s
Partition name: PARAM
Filename: param.bin , Offset: 000005000000 , filesize: 747520 bytes
eMMC switching to ROM1
Erasing partition...
Writing partition...
Done writing partition. Write speed: 119.20 KB/s

Partition USERDATA : formatting as EXT4. Please wait ...
Formatting completed

Check BootConfig for the selected vendor

All done time: [00:02:19:466]

  • Like
Reactions: Deepesh Sharma
M

mahesh_parmar

Active Member
Apr 23, 2019
38
5
y9 2019 dead boot repair done


10/6/2020 8:18:39 PM> Writing eMMC Register ...
10/6/2020 8:18:39 PM> Reg: 179 Value: 0x08
10/6/2020 8:18:40 PM> Reg: 177 Value: 0x02
10/6/2020 8:18:40 PM> Reg: 162 Value: 0x01
10/6/2020 8:18:40 PM> Successfully
10/6/2020 8:18:40 PM>
10/6/2020 8:18:45 PM> Looking for EasyJTAG box...
10/6/2020 8:18:45 PM> EasyJTAG API ver. 3401
10/6/2020 8:18:45 PM> Setting IO Levels to 1.8V
10/6/2020 8:18:45 PM> Setting frequence to 36 MHz
10/6/2020 8:18:45 PM> EasyJTAG Box Serial = E0529BBDE36677BE
10/6/2020 8:18:45 PM> EasyJTAG Box Firmware = 2.5301
10/6/2020 8:18:47 PM> Setting interface to EasyJtag2/ISP_HiPower
10/6/2020 8:18:47 PM> Setting bus width to 1 Bit
10/6/2020 8:18:47 PM> HiPower mode is ON
10/6/2020 8:18:47 PM> Setting frequence to 36 MHz
10/6/2020 8:18:47 PM> CMD Pullup Level: 1574 mV
10/6/2020 8:18:47 PM> CMD Active Level: 1846 mV
10/6/2020 8:18:48 PM> eMMC Init returned = 0
10/6/2020 8:18:48 PM> EMMC Device Information :
10/6/2020 8:18:48 PM> EMMC CID: 90014A68433861503E014EC6E6D81659
10/6/2020 8:18:48 PM> EMMC CSD: D02700328F5903FFFFFFFFEF8E400043
10/6/2020 8:18:48 PM> EMMC Manufacture : SKHYNIX , EMMC NAME: hC8aP> , HEX: 68433861503E , S/N: 4EC6E6D8 , rev. 0x01
10/6/2020 8:18:48 PM> EMMC Manufacture ID: 0x90 , OEM ID: 0x4A , Device Type: BGA (Discrete embedded) , Date: 1/2019
10/6/2020 8:18:48 PM> EMMC ROM 1 (Main User Data) Capacity: 59640 MB (000E8F800000)
10/6/2020 8:18:48 PM> EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
10/6/2020 8:18:48 PM> EMMC RPMB (Replay Protected Memory Block) Capacity: 16384 KB (000001000000) Counter: 5698 , Response: Not Clean
10/6/2020 8:18:48 PM> EMMC Permanent Write Protection: No
10/6/2020 8:18:48 PM> EMMC Temporary Write Protection: No
10/6/2020 8:18:48 PM> Extended CSD Information :
10/6/2020 8:18:48 PM> Extended CSD rev: 1.8 (MMC 5.1)
10/6/2020 8:18:48 PM> Boot configuration [PARTITION_CONFIG]: 0x08 , Boot from: ROM2 (Boot partition 1)
10/6/2020 8:18:48 PM> Boot Bus Config: 0x02 , width 8bit
10/6/2020 8:18:48 PM> H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled
10/6/2020 8:18:48 PM> Supported partition features [PARTITIONING_SUPPORT]: 0x07
10/6/2020 8:18:48 PM> Device supports partitioning features
10/6/2020 8:18:48 PM> Device can have enhanced technological features in partitions and user data area
10/6/2020 8:18:48 PM> Device can have extended partitions attribute
10/6/2020 8:18:48 PM> Partition Settings [PARTITION_SETTING_COMPLETED]: 0x01
10/6/2020 8:18:48 PM> Backup saved: hC8aP__4EC6E6D8_20201006_201848.extcsd
10/6/2020 8:18:48 PM> EMMC Init completed.
10/6/2020 8:18:48 PM>
10/6/2020 8:18:51 PM> Operation: Universal Factory Format
10/6/2020 8:18:51 PM> Please, wait ...
10/6/2020 8:18:51 PM>
10/6/2020 8:18:51 PM> Successfully
10/6/2020 8:19:13 PM>
10/6/2020 8:19:13 PM> Looking for EasyJTAG box...
10/6/2020 8:19:13 PM> EasyJTAG API ver. 3401
10/6/2020 8:19:13 PM> Setting IO Levels to 1.8V
10/6/2020 8:19:13 PM> Setting frequence to 36 MHz
10/6/2020 8:19:13 PM> EasyJTAG Box Serial = E0529BBDE36677BE
10/6/2020 8:19:13 PM> EasyJTAG Box Firmware = 2.5301
10/6/2020 8:19:15 PM> Setting interface to EasyJtag2/ISP_HiPower
10/6/2020 8:19:15 PM> Setting bus width to 1 Bit
10/6/2020 8:19:15 PM> HiPower mode is ON
10/6/2020 8:19:15 PM> Setting frequence to 36 MHz
10/6/2020 8:19:15 PM> CMD Pullup Level: 1546 mV
10/6/2020 8:19:15 PM> CMD Active Level: 1848 mV
10/6/2020 8:19:15 PM> eMMC Init returned = 0
10/6/2020 8:19:15 PM> EMMC Device Information :
10/6/2020 8:19:15 PM> EMMC CID: 90014A68433861503E014EC6E6D81659
10/6/2020 8:19:15 PM> EMMC CSD: D02700328F5903FFFFFFFFEF8E400043
10/6/2020 8:19:15 PM> EMMC Manufacture : SKHYNIX , EMMC NAME: hC8aP> , HEX: 68433861503E , S/N: 4EC6E6D8 , rev. 0x01
10/6/2020 8:19:15 PM> EMMC Manufacture ID: 0x90 , OEM ID: 0x4A , Device Type: BGA (Discrete embedded) , Date: 1/2019
10/6/2020 8:19:15 PM> EMMC ROM 1 (Main User Data) Capacity: 59640 MB (000E8F800000)
10/6/2020 8:19:16 PM> EMMC ROM 2/3 (Boot Partition 1/2) Capacity: 4096 KB (000000400000)
10/6/2020 8:19:16 PM> EMMC RPMB (Replay Protected Memory Block) Capacity: 16384 KB (000001000000) Counter: 5698 , Response: Not Clean
10/6/2020 8:19:16 PM> EMMC Permanent Write Protection: No
10/6/2020 8:19:16 PM> EMMC Temporary Write Protection: No
10/6/2020 8:19:16 PM> Extended CSD Information :
10/6/2020 8:19:16 PM> Extended CSD rev: 1.8 (MMC 5.1)
10/6/2020 8:19:16 PM> Boot configuration [PARTITION_CONFIG]: 0x08 , Boot from: ROM2 (Boot partition 1)
10/6/2020 8:19:16 PM> Boot Bus Config: 0x02 , width 8bit
10/6/2020 8:19:16 PM> H/W Reset Function [RST_N_FUNCTION]: 0x01, RST_n signal is permanently enabled
10/6/2020 8:19:16 PM> Supported partition features [PARTITIONING_SUPPORT]: 0x07
10/6/2020 8:19:16 PM> Device supports partitioning features
10/6/2020 8:19:16 PM> Device can have enhanced technological features in partitions and user data area
10/6/2020 8:19:16 PM> Device can have extended partitions attribute
10/6/2020 8:19:16 PM> Partition Settings [PARTITION_SETTING_COMPLETED]: 0x01
10/6/2020 8:19:16 PM> Backup saved: hC8aP__4EC6E6D8_20201006_201916.extcsd
10/6/2020 8:19:16 PM> EMMC Init completed.
10/6/2020 8:19:16 PM>
10/6/2020 8:19:16 PM> Operation: Writing all eMMC Regions...
10/6/2020 8:19:16 PM>
10/6/2020 8:19:16 PM> Operation: Writing BootConfig ...
10/6/2020 8:19:16 PM> Reg: 179 Value: 0x08
10/6/2020 8:19:17 PM> Reg: 177 Value: 0x02
10/6/2020 8:19:17 PM> Reg: 162 Value: 0x01
10/6/2020 8:19:17 PM> Done
10/6/2020 8:19:17 PM>
10/6/2020 8:19:18 PM> Writing to: ROM2 , start: 0x000000000000 , size: 0x000000400000
10/6/2020 8:19:18 PM> Filename: ROM2.bin
10/6/2020 8:19:18 PM> eMMC switching to ROM2
10/6/2020 8:19:18 PM> Writing partition...
10/6/2020 8:19:22 PM> Done writing partition. Write speed: 1097.85 KB/s
10/6/2020 8:19:23 PM>
10/6/2020 8:19:23 PM> Writing to: ROM1 , start: 0x000000000000 , size: 0x00003C390000
10/6/2020 8:19:23 PM> Filename: ROM1_1GB.bin
10/6/2020 8:19:23 PM> eMMC switching to ROM1
10/6/2020 8:19:23 PM> Writing partition...
10/6/2020 8:23:31 PM> Done writing partition. Write speed: 3990.29 KB/s
10/6/2020 8:23:31 PM>
10/6/2020 8:23:31 PM> All done time: [00:04:12:595]

You must log in or register to reply here.
Top
