How to direct write SD Image of Qualcomm Devices directly to eMMC using UFIBOX
One of the usefull feature in UFI Box : Directly flashing stock SDImage of some Qualcomm based devices.
In this case is Andromax U2 a.k.a Hisense EG98.
Just like flashing using QFIL in QPST to your android phone, but this is directly to the eMMC.
Using TF Update (SDImage) for Andromax U2 as sample. This phone is based on Qualcomm MSM8225Q CPU.

  • Like
Reactions: shafi_136 and Ngoclamgsm
Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,159
India
Sonork ID
100.1614172
Remove WP active in Samsung P3100 and update FFU via ISP connection using UFIBOX
Case : Samsung P3100 hang logo problem
Remove Write Protection bug on Samsung Emmc, on P3100 as sample, using Direct ISP Connection, and updating the firmware of Emmc,
prevent WP bug comeback in a week
Always backup before any action, backup 512MiB is enough for common devices. So you don't have to worry about Imei, signal, etc.


  • Like
Reactions: shafi_136, Ngoclamgsm and sohang kumar
Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,159
India
Sonork ID
100.1614172
How to backup Dump via ISP, update FFU via TP, and write full dump using UFILITE

Case : Samsung S3 GT-I9300 hang logo problem
This is how Repair Emmc "Brick-Bug" KMVTU Samsung i9300 via Test point,
and write full dump 16GB via UFI-Lite USB3.0 SuperSpeed uSD/eMMC Reader for max speed.

By writing full dump , your emmc will be in "Full on" state,
And by restoring efs, you don't need to repair imei by other tool.
Remove emmc from board,
Make test point,
Update firmware,
Write full dump with ufi lite,
Restore efs,
resolder emmc, assembling the phone, n DONE.

  • Like
Reactions: Ngoclamgsm and sohang kumar
Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,159
India
Sonork ID
100.1614172
Repair Hardbricked Oppo R2001, Replacing eMMC

Most oppo devices use hard glue to protect the main chipset. The cheapest way to remove the old
eMMC in Oppo devices is to use a mini grinding machine .

Oppo R2001 preloader doesn't support Samsung eMMC, but don't worry using UFI Box it is easy to patch the CID into the other eMMC vendor as listed in the preloader file.
So we can still use Samsung eMMC to this phone.
In the following video we patch Samsung KMKJS000VM into SkHynix H9TP32A8JDBC, both eMMC share the same spec and the same DRAM config.

  • Like
Reactions: Ngoclamgsm and sohang kumar
Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,159
India
Sonork ID
100.1614172
Unbrick/Provisioning Intel based devices using UFI Android ToolBox

UFI support provisioning for Android devices with Intel SoC which is mandatory for bricked devices.
Supported platform: Moorestown, Medfield, Merrifield, Moorefield, CloverView and CloverViewPlus.
Such as ASUS Zenfone 2, Zenfone 4, Zenfone 5, Zenfone 6, Zenfone C and Lenovo K900

Unbrick Asus Zenfone 6 dead in CloverView Mode just in seconds.
You don't need to worry searching raw file,
on Support Tab, you can find all rom files you need for flashing after provisioning..

  • Like
Reactions: Ngoclamgsm and sohang kumar
Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,159
India
Sonork ID
100.1614172
Dump all partitions eMMC via ADB using UFI Android ToolBox

Dumping eMMC from a normal and working mobile phone now very easy using UFI Android Toolbox.
Without disassembling the phone, without soldering any pinout, without desolder, without worrying about damaging your phone.

All partitions is supported, including boot, and GP1(if any) as well as ext csd.
With ADBTool in UFI Android ToolBox, not only read or write partitions,
it's include dissable perm write protect for samsung emmc,
adb sideload, and apk installer too.

Phones must be rooted and USB Debugging enable

  • Like
Reactions: Ngoclamgsm and sohang kumar
Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,159
India
Sonork ID
100.1614172
Intel Moorefield Provisioning with new eMMC using UFI Android ToolBox

Case: ZE550ML hard bricked, eMMC broken

The Original eMMC part was SKhynix H26M52103FMR/16GB,
we used KLMBG4GEAC-B001/32GB @FBGA153 for replacement so we were also upgrading internal storage

Step by Step How to repair ASUS Zenfone 2, ZE550ML or ZE551ML/ZX551ML with broken eMMC

  • Like
Reactions: tiko12, Ngoclamgsm and sohang kumar
Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,159
India
Sonork ID
100.1614172
Hi Here Some More Tutorial With Image
How to Unbrick Meizu y15 (M3s) by replacing eMCP using UFi Box
How to Unbrick Meizu y15 (M3s) by replacing eMCP using UFi Box
Case: Device comes hang logo
Handling:
Open UFi Android Toolbox ,
Go to Tab Mediatek ,
Remember to always choose the appropriate Brand, Model, and Firmware

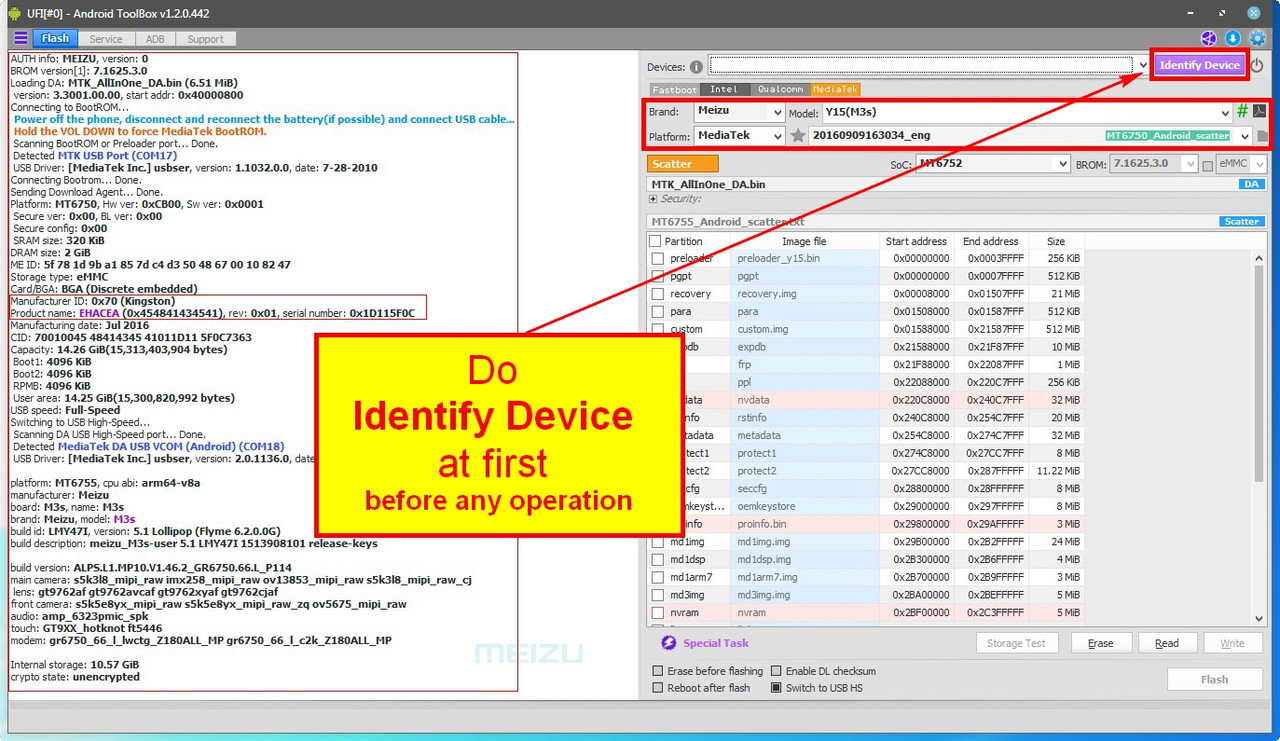

1. Identify Devices​
From the log window, the default eMCP is Kingston, and it looks that the partition is still complete,​
Android system also read perfectly​
​

2. Backup​
Before further execution, always do backups via the Read button,​
especially important partitions, such as: preloader, and nv partitions​
Unfortunately, Error occurs when the backup process​
3. Factory Reset​
Unfortunately, the same Error occurs when we perform the process wipe cache and userdata​
​

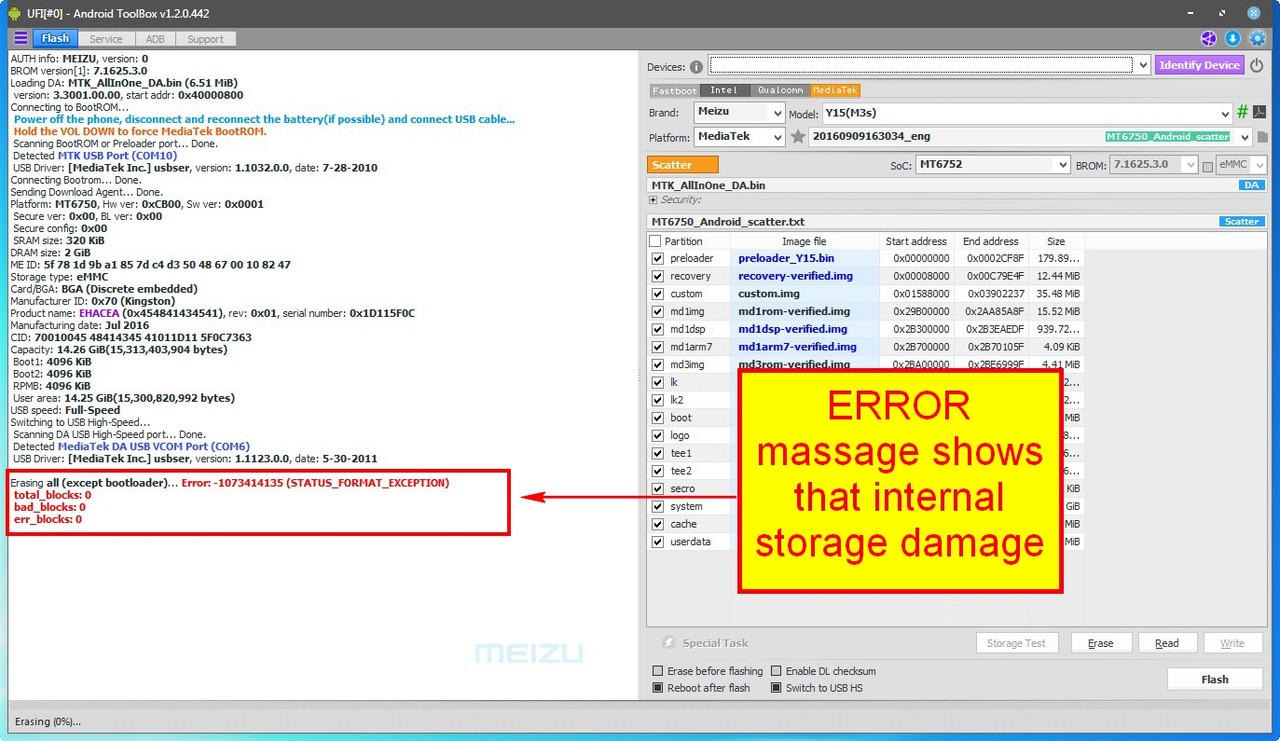

4. Erase All Exept Bootloader​
Last experiment,​
we do Erase only on eMCP userarea through​
Special Task button,​
Error in Log window makes sure that eMCP indeed needs to be replaced.​

Ok, then we get the new eMCP.
We use eMCP SK Hynix H9TQ17ABJTMCUR-KUM 16GB + LPDDR3 16Gb (2GB ) @ BGA221
In accordance with CID supported by Preloader.
Open UFi eMMC ToolBox
  1. As always, do Identify eMMC , and Nand Test
    for the process of checking the health of the Nand area in eMCP quickly

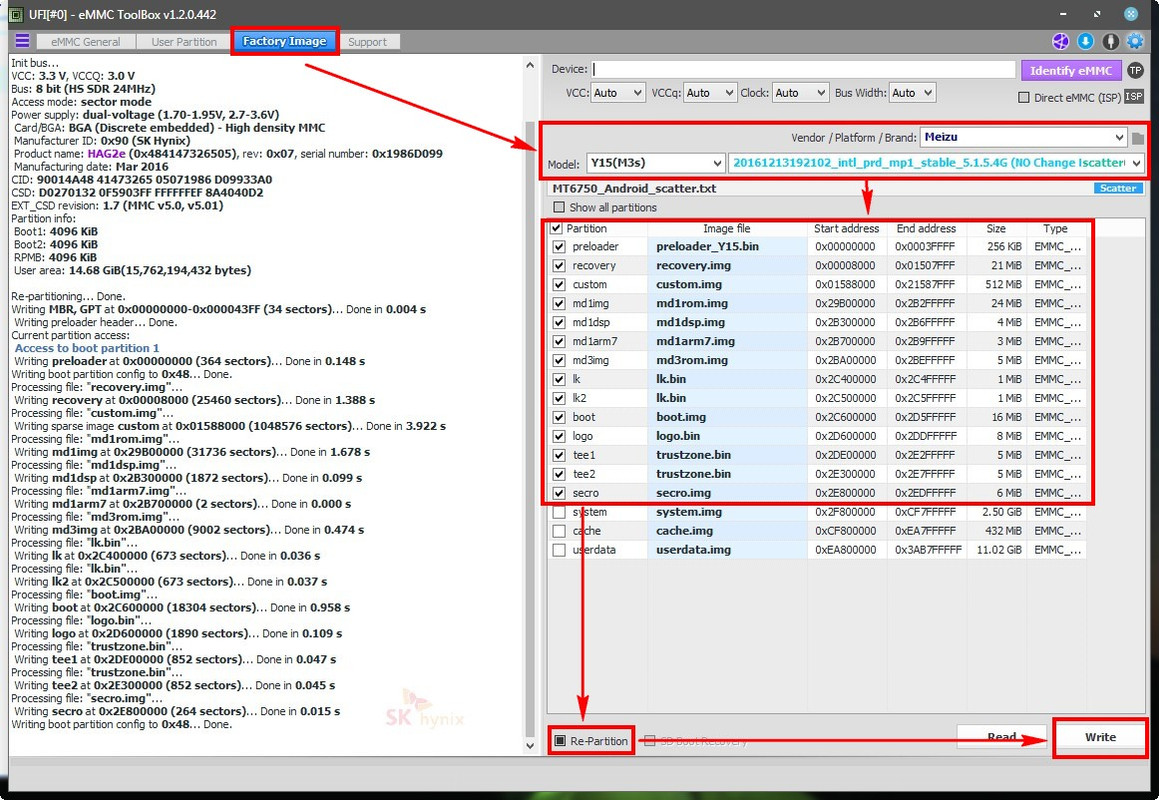

2. Factory Image​
We prepare Stock Firmware, can be downloaded in Support,​
and do the writing firmware directly to eMCP via Factory Image menu, at the same time it will reconfig partition boot.​
To partition the system, cache, and userdata we skip, with the aim that not too long the process of writing eMCP.​

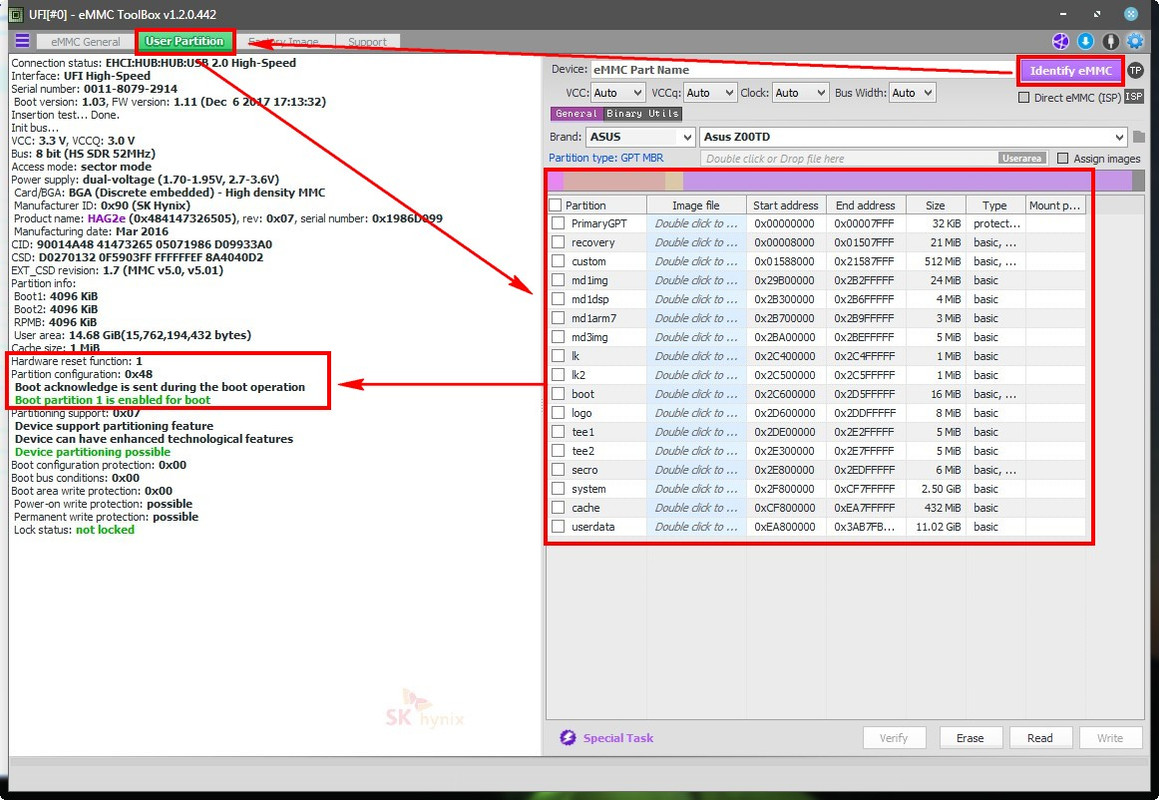

3. Do "Identify eMMC" again,​
then move to tab User Partition to check the writing of eMCP as we want.​
eMCP replacement looks good, and ready to install to PCB​

After eMCP is installed, we do the flashing process again using UFi Android Toolbox.

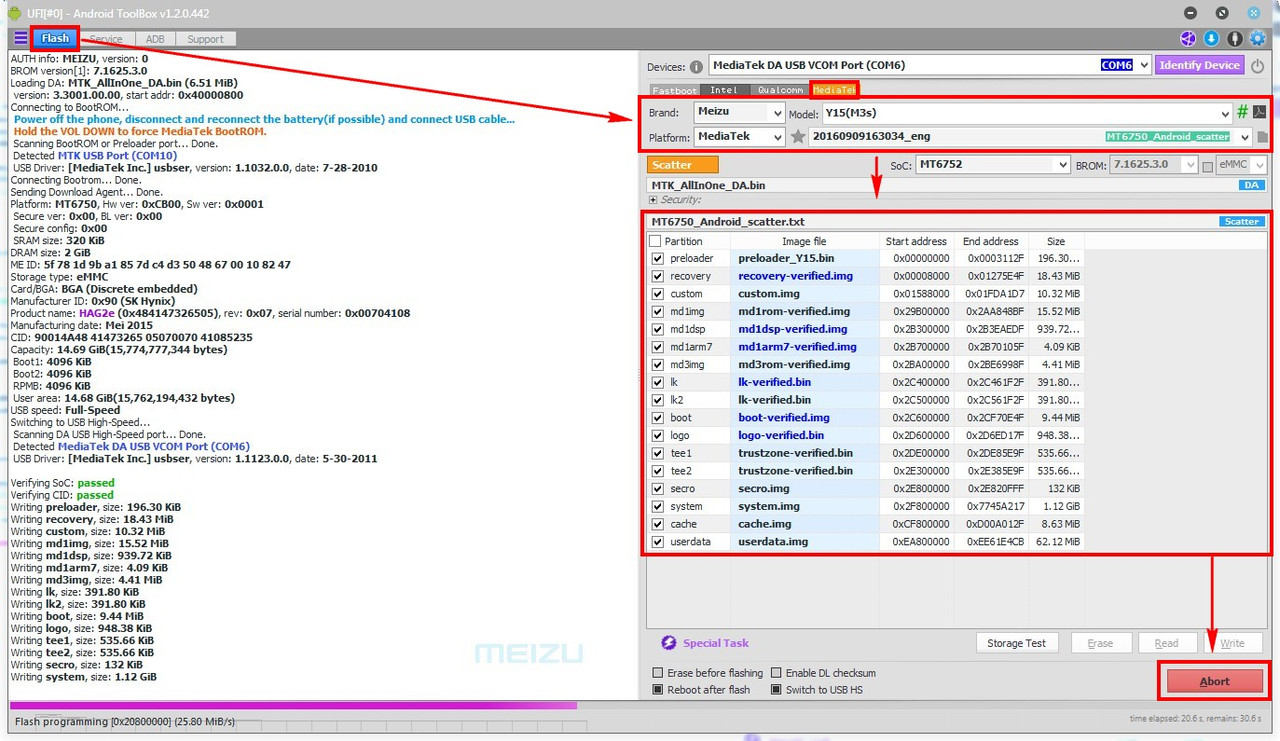

  1. Flashing using Engineering Firmware
    Here I use 20160909163034_eng Firmware, Firmware File already exists in suuport and can be downloaded.

    After flashing is complete, turn on Device, the display menu will look like Android Stock

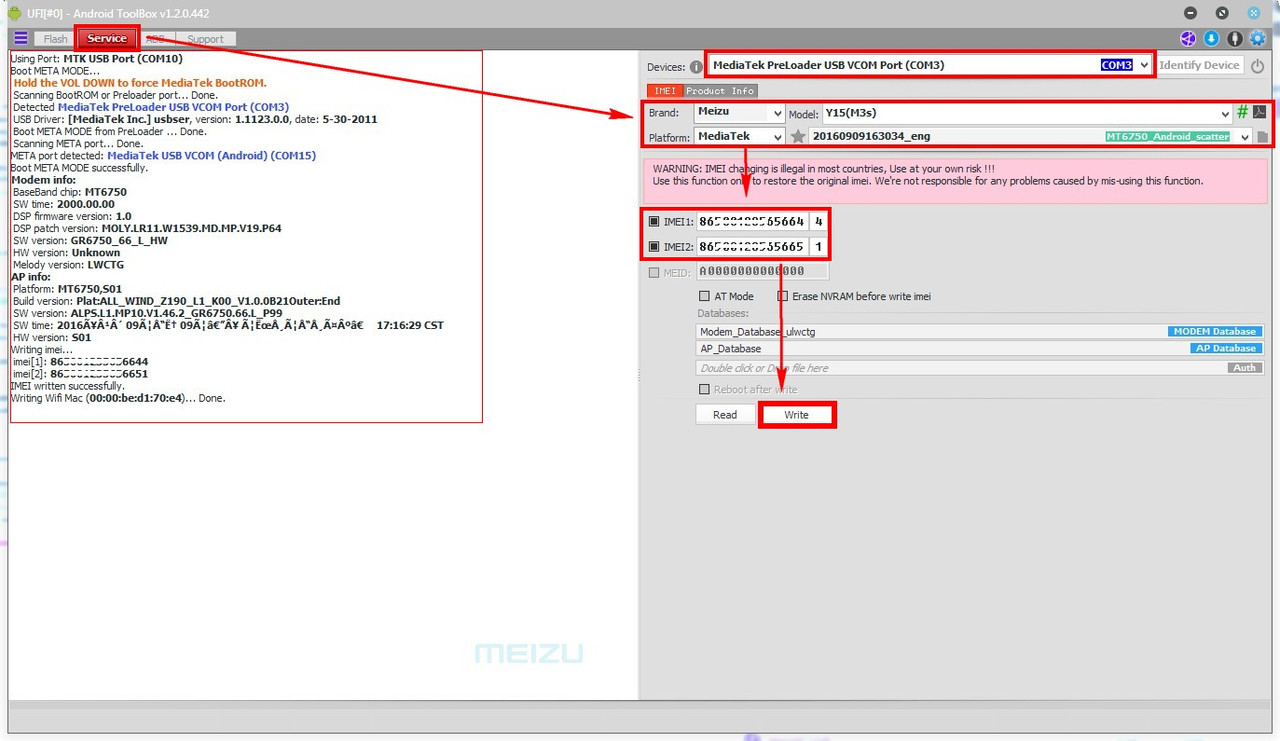

2 .Rewrite Original Imei ​
By using Engineering Firmware, we can easily write the original Imei to the device via Meta mode.​

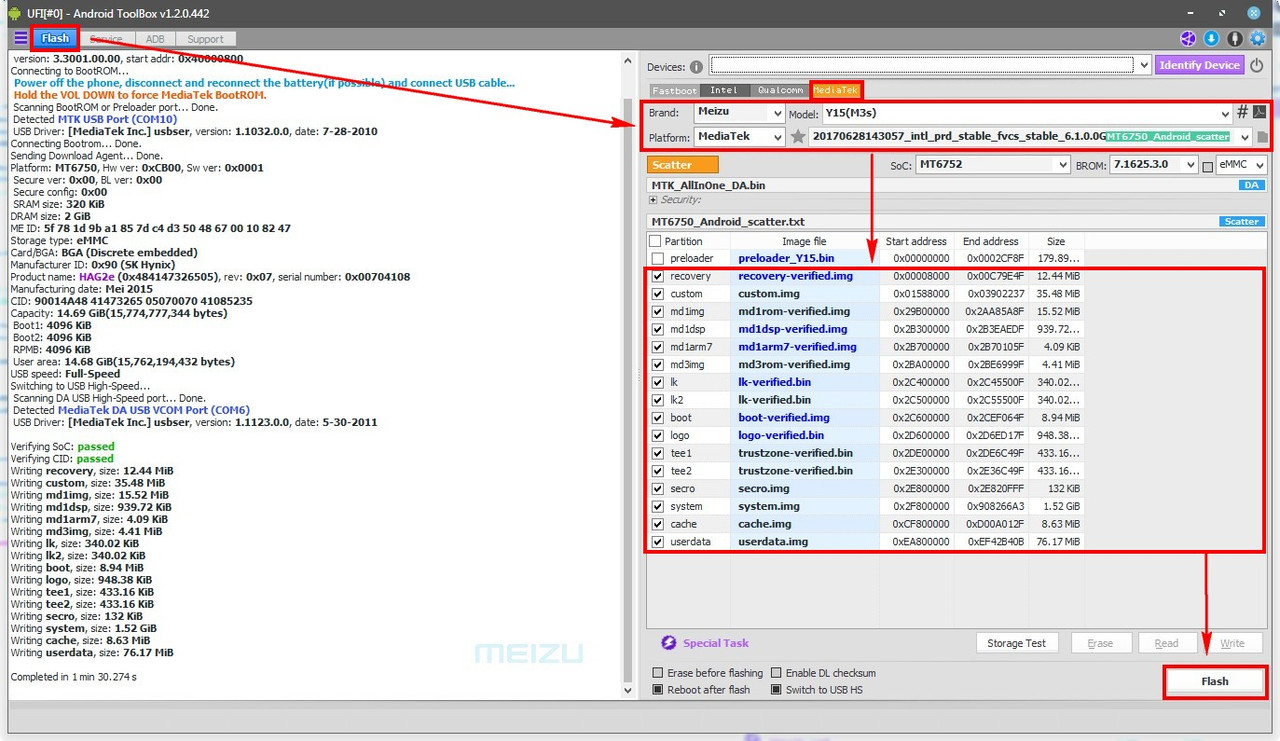

3. Flashing using Public / User Firmware​
Once imei is successfully written, re-flash device using public release firmware 20170628143057_intl_prd_stable_fvcs_stable_6.1.0.0G​
Firmware files are available in support too.​

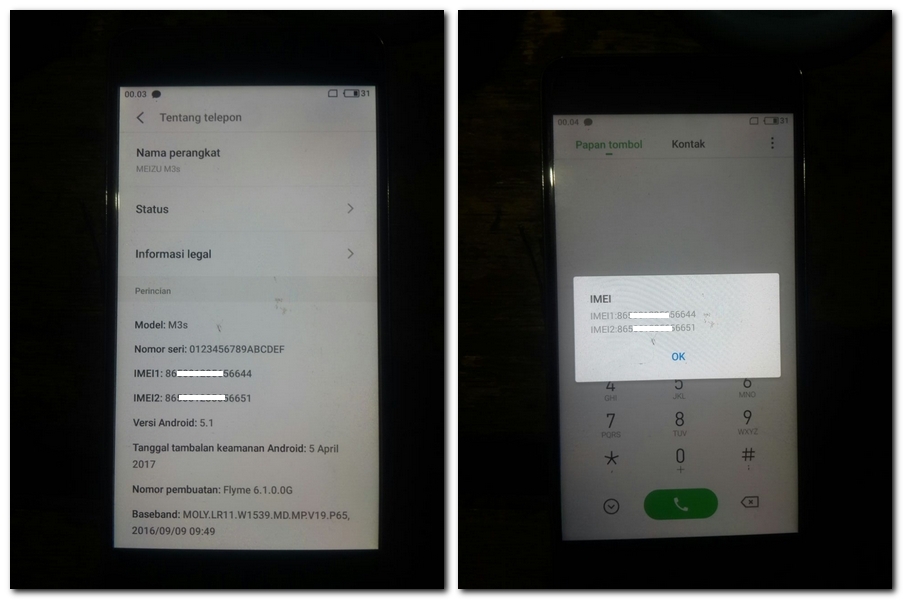

4. Congratulations, ​
you just replaced eMCP Meizu Y15 (M3s) using UFi Box​

Last edited:
  • Like
Reactions: darkcloudgsmph, bronce, Arihant and 13 others
Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,159
India
Sonork ID
100.1614172
Repair Imei & Meid Smartfren Andromax

Smartfren Andromax is Qualcomm CDMA GSM Device.

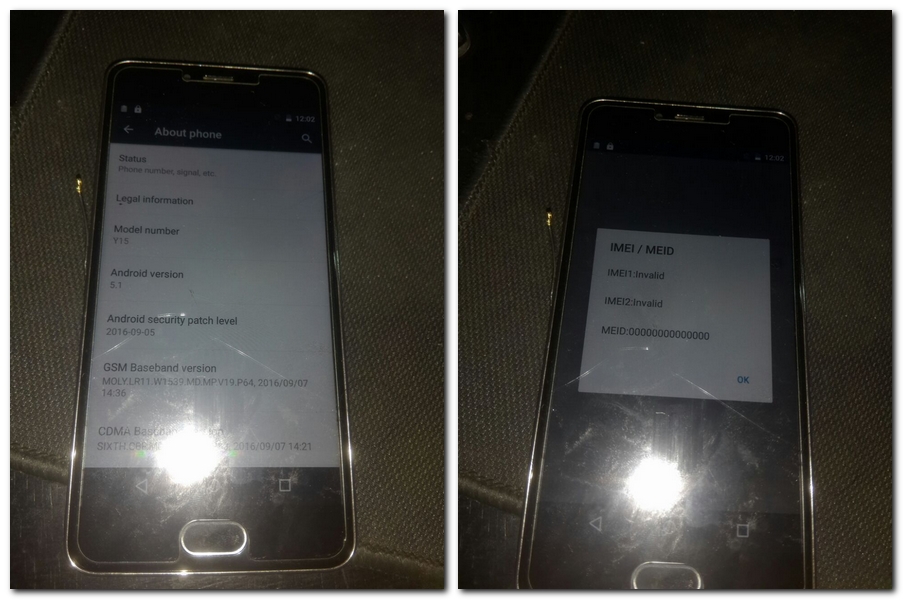

Sometime after debricking this device, you face imei & meid become null or invalid.
This is tips and trick how to repair imei & meid Smartfren Andromax Device.

First Step: You have to download modem firmware below :
For 4G Devices : Smartfren Andromax 4G modem firmware
For non-4G Devices : Smartfren Andromax non-4G modem firmware

2nd Step: You have to Root your Device, and enabling USB Debugging.

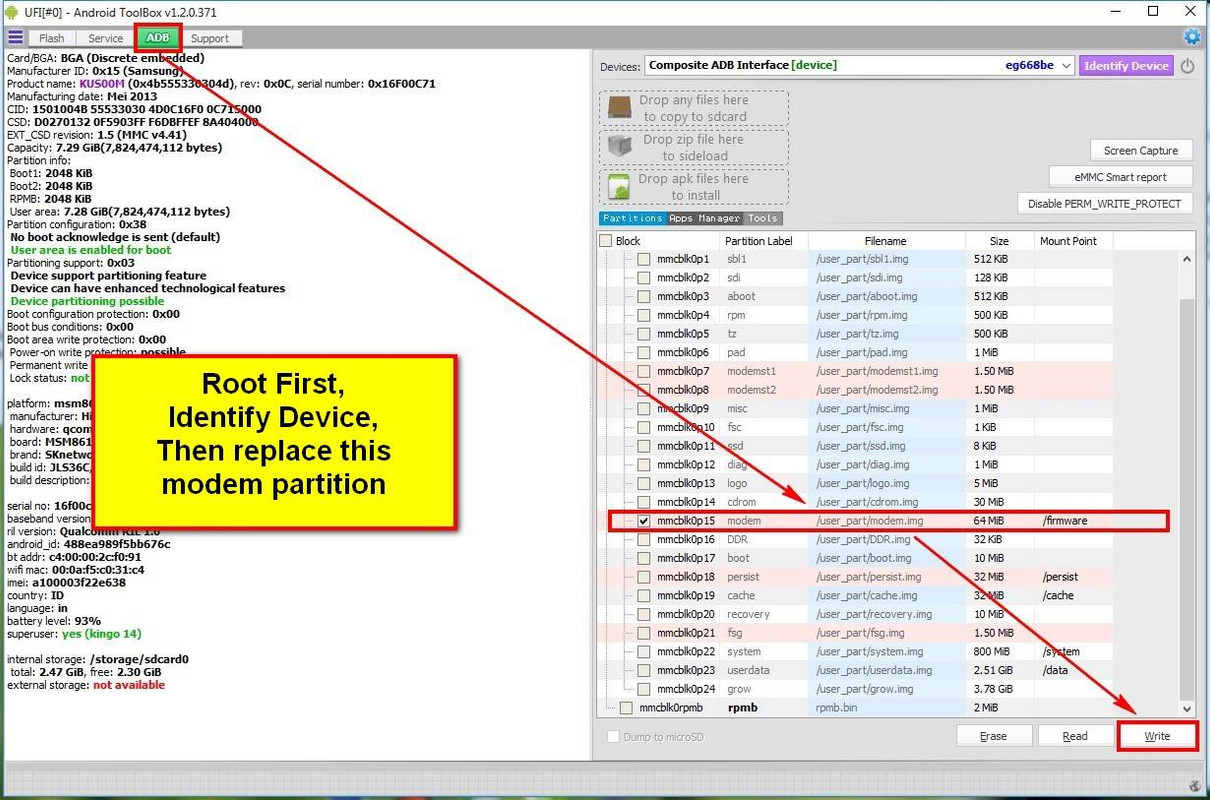

Now open Ufi Android ToolBox , go to ADB make Identify Device write modem firmware in modem partition list.

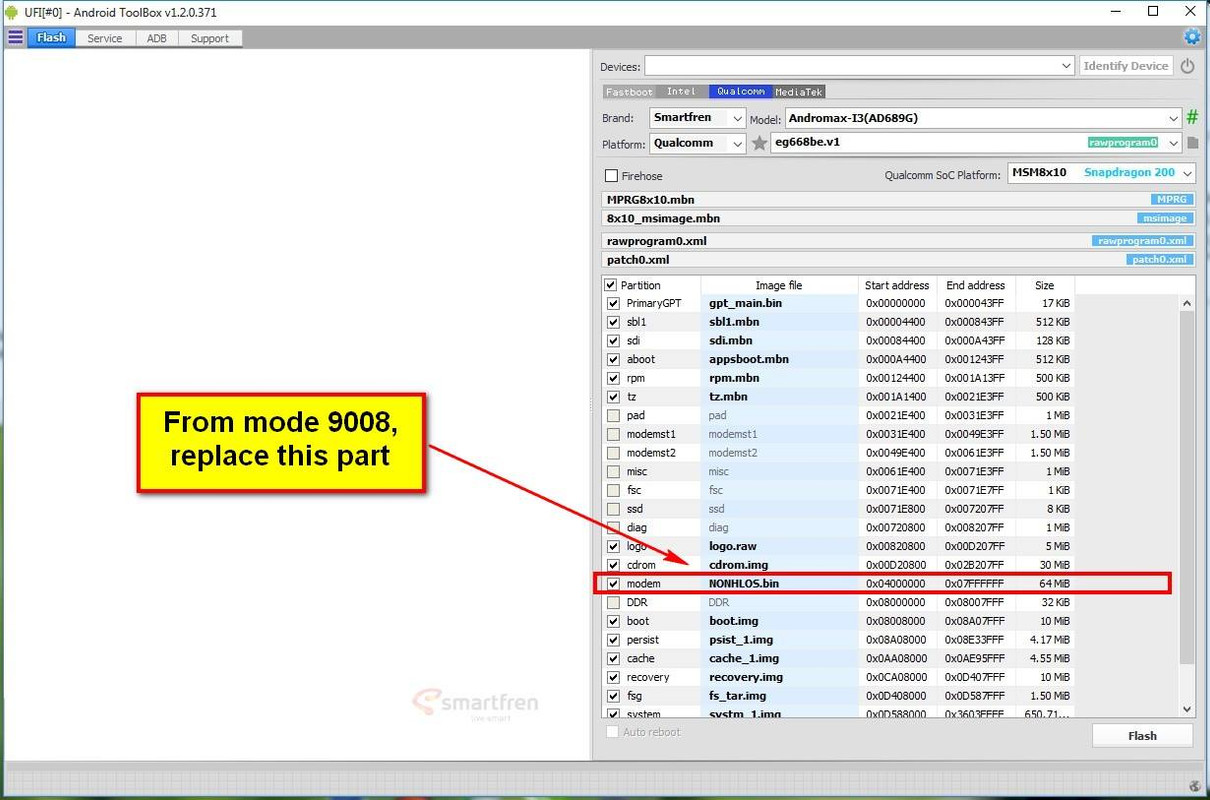

You can replace this modem partition, when your device support Firehose Protocol via qualcomm emergency mode (9008) too.

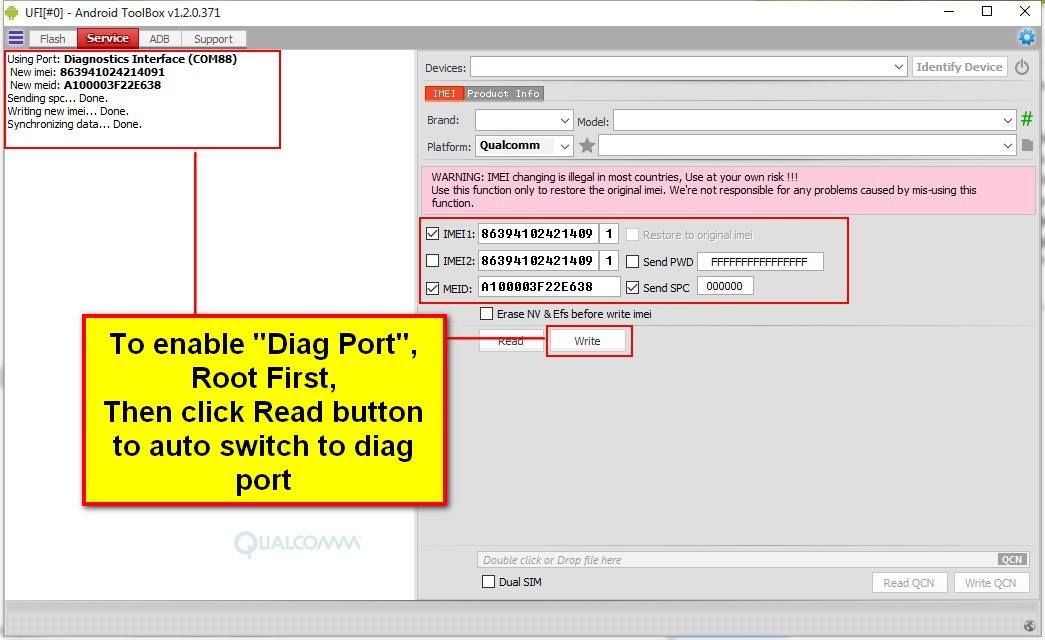

Last Step: To write imei or meid qualcomm based device, you have to activated Diagnostic Port.
As long as your devices Rooted, it so easy to enable diagnostic port via Ufi Android ToolBox,
Just by click Read button in Service Tab.

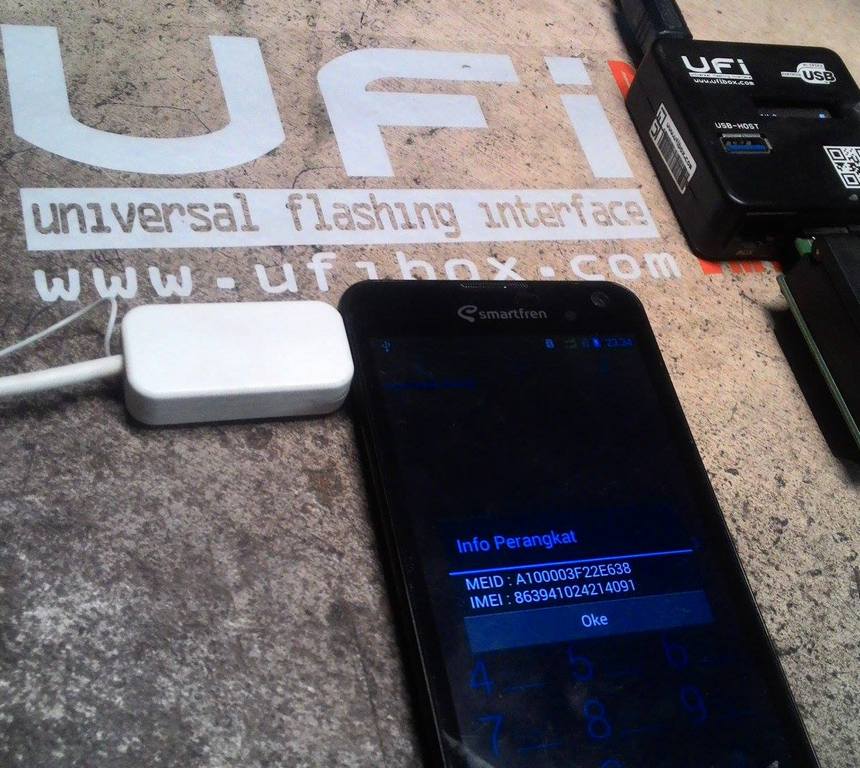

After enabling Diagnostic Port, now you are Ready to Write imei and meid according to the label of your devices.






  • Like
Reactions: Arihant, abo anas zayan, sivasakthimcs and 5 others
Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,159
India
Sonork ID
100.1614172
Oppo "The NV Partition is invalid"

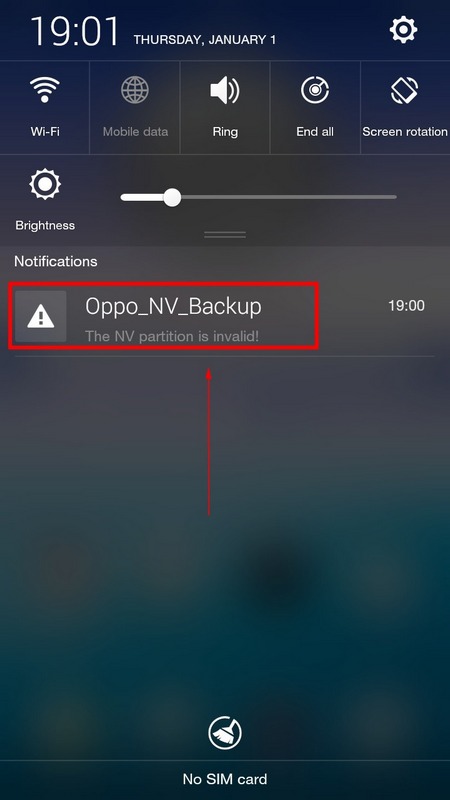

After replacing eMMC Oppo Qualcomm Devices, sometimes you will find annoying notification "Oppo_NV_Backup - The NV Partition is invalid". Even after you just write backup nv partition or write QCN.

To Fix this issue, follow this guide :​

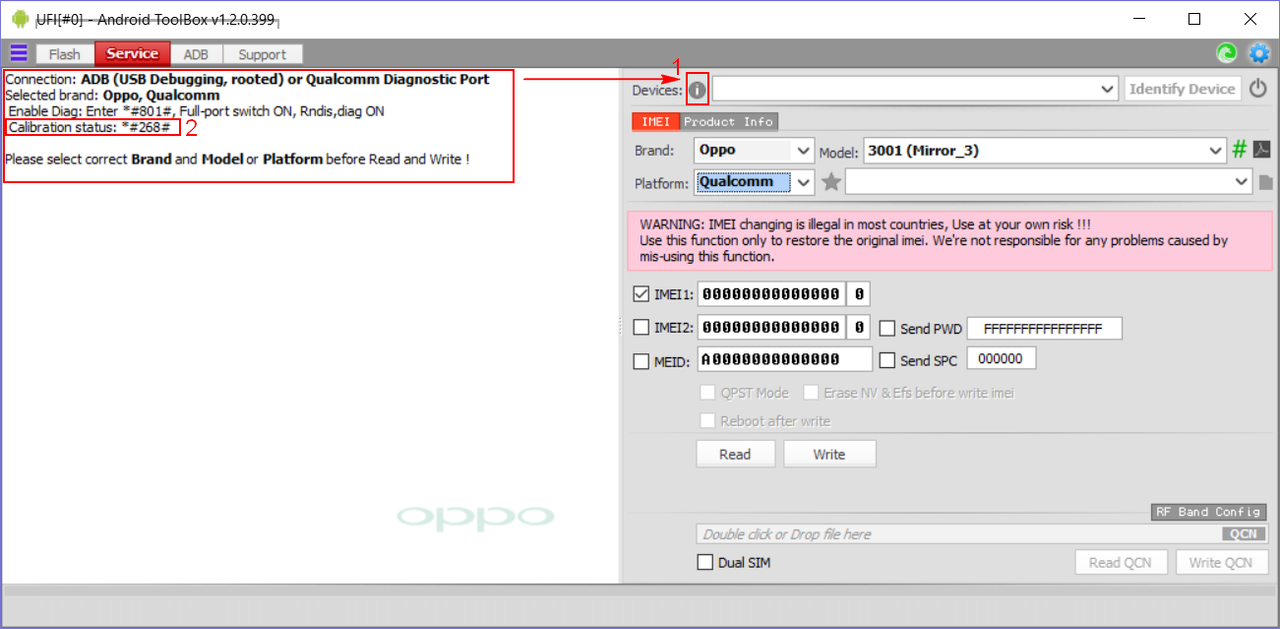

1. Open Android Tool Box -->Tab Service -->Select Brand & Model correctly -->then click devices hint
icon
to show general tips for devices

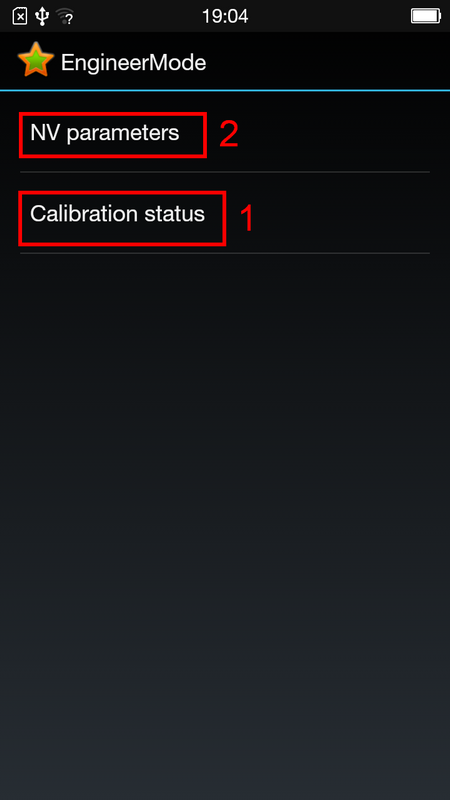

2. Dial *#268# in phone menu dialer, "EnggineerMode" will popup

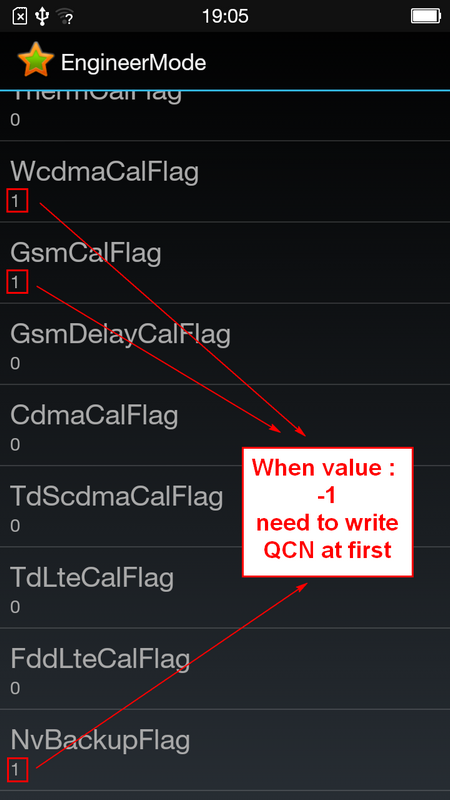

3. Click on "Calibration status"
When value "-1" means you must write QCN at first using Android Toolbox like tutorial here.

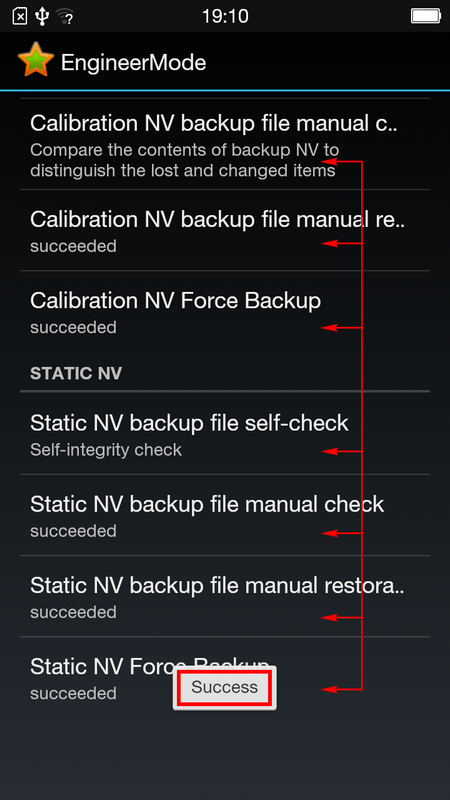

4. Back to EngineerMode menu, now click on "NV parameters"
You have to passed all the test by clicking all available test parameters and show "succeded"

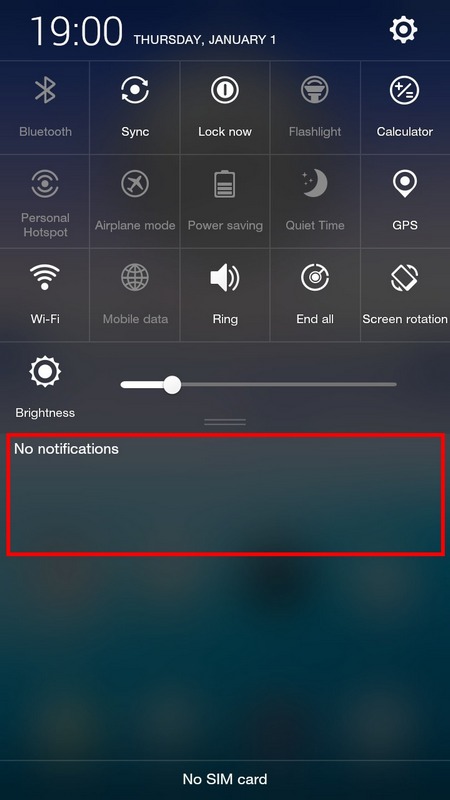

5. Congratulations UFiXERS, you just remove "Annoying Oppo NV invalid Notification"

  • Like
Reactions: jameel91, Arihant, abo anas zayan and 6 others
Deepesh Sharma

Deepesh Sharma

Friend's Martview
Apr 4, 2017
1,712
3,159
India
Sonork ID
100.1614172
How To Remove / Reset Flyme Account Meizu M5 Note or Any with UFi Android ToolBox
Just for you who do not know how to use [Meizu] Reset Flyme Account feature using UFi Android Tool Box.

Here are the steps:

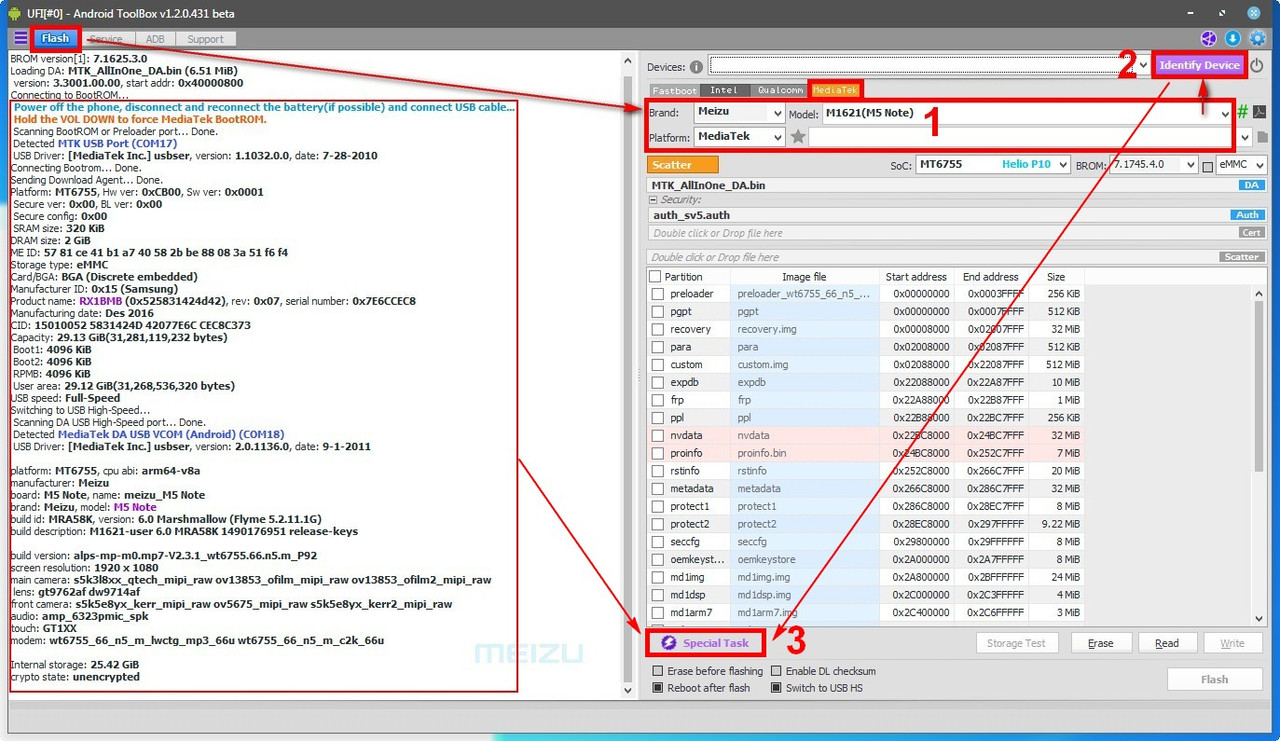

1. Identify Devices "at First.
Always Choose Brand, Model, Platform, and Firmware according to your Device you are working on.
Position the device into BootROM mode when "Identify" by pressing the volume down button before the device is connected via USB cable.

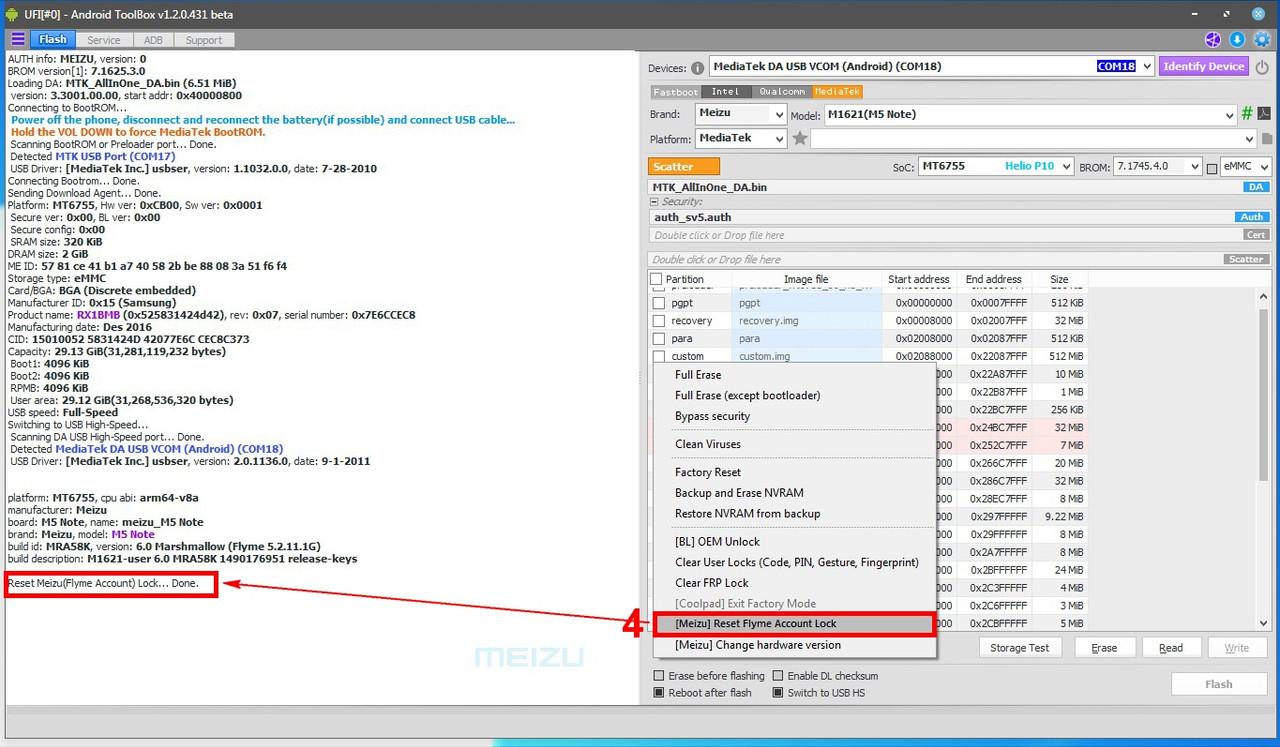

2. Special Task
Specific features for certain brands and models are stored in this button, and will only be active when Identify Devices is successfully executed.
Like for example [Meizu] Reset Flyme Account .​

Notice to 3. Log Window
Make sure the feature has been successfully executed by taking into account the specific task that we have selected in the Special Task menu.
For the following example, we use the [Meizu] Reset Flyme Account feature,
and seen in The Log window has been successfully performed by the software.
​

Congratulations, you just reset Flyme Account in Device Meizu
