Tecno Pop 5 FRP Lock Remove with Hydra Tool
- First Keep press Boot Info
- FRP Lock Remove
- First Keep press Boot Info
Code:
-------------------------------------------------------
To Enable BROM Mode :
Method 1 - Bootkey (Vol + - Power) or any combination
Method 2 - Enable Preloader to brom(crashing Method)
Method 3 - Test Point Data0 + ground
To Enable Preloader Mode :
Method 1 - Just Insert cable
-------------------------------------------------------
Searching for MTK Device...Found
MTK Port Type : Flashmode BROM
FriendlyName : MediaTek USB Port_V1633 (COM7)
Device : /5&15c311e1&0&6
SymbolicName : \\?\usb#vid_0e8d&pid_0003#5&15c311e1&0&6#{a5dcbf10-6530-11d2-901f-00c04fb951ed}
Driver Ver : 01/22/2015,3.0.1504.0
Service : wdm_usb
Openning Port [COM7] Ok
Handshaking...Ok
HwCode : 6580 {MT6580}
Hwver : 0000
Target config : 05
SBC : 01 (True)
SLA : 00 (False)
DAA : 04 (True)
SWJTAG : 04 (True)
EPP : 00 (False)
CERT : 00 (False)
MEMREAD : 00 (False)
MEMWRITE : 00 (False)
CMD_C8 : 00 (False)
Connection : BROM
HW Subcode : 8A00
HW Subcode : CA00
SW Ver : 0000
ME_ID : C4B49E627088DC4B014245EE84E9B4A4
Exploiting Device...
Successfully Exploited..
Handshaking...Ok
Dumping Preloader from Bootrom..
Seeking preloader address..Found @ 0x00200B40
Starting to dump...
Prel Size : 0x0001E6F8
Successfully dump preloader.. [C:\Hydra Tool\Boot\PreloaderDump\preloader_k80_bsp.bin]
Target config : 00
SBC : 00 (False)
SLA : 00 (False)
DAA : 00 (False)
SWJTAG : 00 (False)
EPP : 00 (False)
CERT : 00 (False)
MEMREAD : 00 (False)
MEMWRITE : 00 (False)
CMD_C8 : 00 (False)
Connection : BROM
Uploading legacy da...
DA :MTK_AllInOne_DA_5.2152.bin
Legacy DA2 Patched..
Legacy DA2 CMD F0 is patched.
Successfully uploaded stage 1, jumping ..
Executing JUMP_DA Address @ 0x00200000
Jumping to 0x00200000 Ok
Got loader sync !
Reading Nand Info..
Reading EMMC Info
EMMC_INFO : 0x00000000
Uploading Stage 2
DRAM config needed for : 51000115413336587DEE034271982ECA
Reading dram nand info ...
Sending dram info ...
RAM-Length: BC000000
5A
Successfully upload stage 2
Flash and ram info.....
m_int_sram_ret : 0x00000000
m_ext_ram_ret : 0x00000000
m_ext_ram_type : 0x02
m_ext_ram_chip_select : 0x00
m_int_sram_ret : 0x00000000
m_ext_ram_size : 0x0000000080000000-2 GB
Randomid : 0xEEE0A041D2C130894F2BFD9D0FF66A6D
m_emmc_ret : 0x00000000
m_emmc_boot1_size : 0x0000000000400000-4 MB
m_emmc_boot2_size : 0x0000000000400000-4 MB
m_emmc_rpmb_size : 0x0000000000400000-4 MB
m_emmc_gp_size[0] : 0x0000000000000000-0 Bytes
m_emmc_gp_size[1] : 0x0000000000000000-0 Bytes
m_emmc_gp_size[2] : 0x0000000000000000-0 Bytes
m_emmc_gp_size[3] : 0x0000000000000000-0 Bytes
m_emmc_ua_size : 0x0000000747C00000-29.121 GB
CID : 51000115413336587DEE034271982ECA
Checking Connection Speed..
Configuration HighSpeed Switch : True
Full Speed Detected..
Switching To High Speed...
Connected to preloader...
Reconnecting to preloader...
Reading Partition Table ..
Partition Count : 37
Reading IMEI........
IMEI Info....
IMEI1 : 353800********
IMEI2 : 353800********
-------------------------------
Bootloader Status...
Bootloader : Locked
-------------------------------
Backing up Security..
- preloader(preloader.bin), 512 KB = Ok [preloader_k80_bsp.bin]
*Creating Scatter file... C:\Hydra Tool\Backup\MTKBKUP\6580_C4B49E6270844KJ014245EE84E9B4A4\Auto\072023147770726\6580_Android_scatter.txt
- pgpt(pgpt.bin), 512 KB = Ok
- nvram(nvram.bin), 5 MB = Ok
- nvdata(nvdata.bin), 32 MB = Ok
- frp(frp.bin), 1024 KB = Ok
- protect1(protect1.bin), 10 MB = Ok
- protect2(protect2.bin), 10 MB = Ok
- persist(persist.bin), 48 MB = Ok
- proinfo(proinfo.bin), 3 MB = Ok
- seccfg(seccfg.bin), 256 KB = Ok
Backup Done!!!
Elapsed Time : 00:01:15

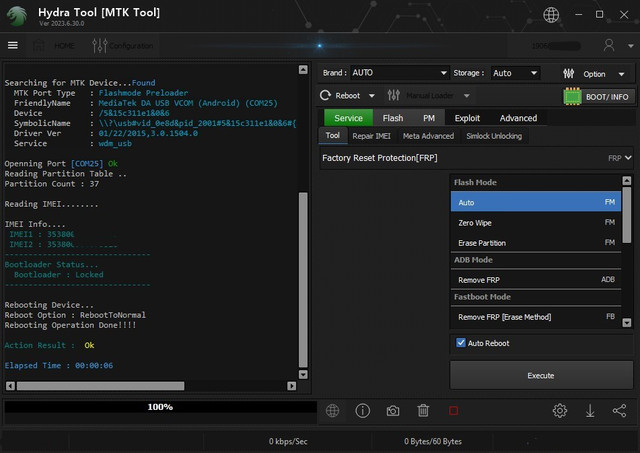

- FRP Lock Remove
Code:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Service Function
Factory Reset Protection[FRP]
Auto
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Searching for MTK Device...Found
MTK Port Type : Flashmode Preloader
FriendlyName : MediaTek DA USB VCOM (Android) (COM25)
Device : /5&15c311e1&0&6
SymbolicName : \\?\usb#vid_0e8d&pid_2001#5&15c311e1&0&6#{a5dcbf10-6530-11d2-901f-00c04fb951ed}
Driver Ver : 01/22/2015,3.0.1504.0
Service : wdm_usb
Openning Port [COM25] Ok
Reading Partition Table ..
Partition Count : 37
Reading IMEI........
IMEI Info....
IMEI1 : 353800*********
IMEI2 : 353800*********
-------------------------------
Bootloader Status...
Bootloader : Locked
-------------------------------
Rebooting Device...
Reboot Option : RebootToNormal
Rebooting Operation Done!!!!
Action Result : Ok
Elapsed Time : 00:00:06
