Samsung A12 (SM-A125) Pattern/FRP lock remove with Hydra Tool
Boot/Info
Factory Reset/FRP
Boot/Info
Code:
Hydra Tool Ver 2023.4.12.0 -
Windows 10 (Version 22H2, OS Build 19045.2846, 64-bit Edition)
Intel(R) Celeron(R) N4120 CPU @ 1.10GHz
Intel(R) UHD Graphics 600
Ram Installed : 4 GB
Windows Access Right : Admin
Software Run As Admnistrator
******* Dongle Info *******
Version : Hydra Tool v 1.2
Serial : 210300013542
Initialize : OKAY
Status : Activated
Life : 0 [0-0-0-0-0]
-------------------------------------------------------
To Enable BROM Mode :
Method 1 - Bootkey (Vol + - Power) or any combination
Method 2 - Enable Preloader to brom(crashing Method)
Method 3 - Test Point Data0 + ground
To Enable Preloader Mode :
Method 1 - Just Insert cable
-------------------------------------------------------
Searching for MTK Device...Found
MTK Port Type : Flashmode BROM
FriendlyName : MediaTek USB Port_V1633 (COM3)
Device : /5&11ecabde&0&3
SymbolicName : \\?\usb#vid_0e8d&pid_0003#5&11ecabde&0&3#{a5dcbf10-6530-11d2-901f-00c04fb951ed}
Driver Ver : 01/22/2015,3.0.1504.0
Service : wdm_usb
Openning Port [COM3] Ok
Handshaking...Ok
HwCode : 0766 {MT6765/MT8768t}
Hwver : 0000
Target config : E5
SBC : 01 (True)
SLA : 00 (False)
DAA : 04 (True)
SWJTAG : 04 (True)
EPP : 00 (False)
CERT : 00 (False)
MEMREAD : 20 (True)
MEMWRITE : 40 (True)
CMD_C8 : 80 (True)
Connection : BROM
HW Subcode : 8A00
HW Subcode : CA00
SW Ver : 0000
ME_ID : 324E55CC2955E1274582478D7C9A0311
SOC_ID : 0B549C5DBCA631FE4E87946AE73289B3027B15604C59D15D01A11D6913D4D636
Exploiting Device...
Successfully Exploited..
Handshaking...Ok
Dumping Preloader from Bootrom..
Seeking preloader address..Found @ 0x00200BC4
Starting to dump...
Prel Size : 0x00038FDC
Successfully dump preloader.. [C:\Hydra Tool\Boot\PreloaderDump\preloader_k65v1_64_bsp_titan_rat.bin]
Target config : 00
SBC : 00 (False)
SLA : 00 (False)
DAA : 00 (False)
SWJTAG : 00 (False)
EPP : 00 (False)
CERT : 00 (False)
MEMREAD : 00 (False)
MEMWRITE : 00 (False)
CMD_C8 : 00 (False)
Connection : BROM
Preparing Download Agent..[MTK_AllInOne_DA_5.2152.bin]
Patching da2 ... Ok
Uploading Stage 1....
Successfully uploaded stage 1, jumping ..
Executing JUMP_DA Address @ 0x00200000
Jumping to 0x00200000 Ok 0xC0
Successfully received DA sync
ONNECTION_AGENT : brom
DRAM config needed for : 1501003356364341
Sending auto preloader from dump... [preloader_k65v1_64_bsp_titan_rat.bin]
Sending emi data.. [DRAM setup passed.]
Sending emi data succeeded.
Uploading stage 2...
Upload data was accepted. Jumping to stage 2...
Successfully uploaded stage 2
ERAM Size : 0x000000000003A000-232 KB
IRAM Size : 0x0000000180000000-6 GB
EMMC Boot1 Size : 0x0000000000400000-4 MB
EMMC Boot2 Size : 0x0000000000400000-4 MB
EMMC RPMB Size : 0x0000000001000000-16 MB
EMMC USER Size : 0x0000001D1F000000-116.484 GB
EMMC CID : 1501003356364341420066F2D425582B - 3V6CAB
HW-CODE : 0x766
HWSUB-CODE : 0x8A00
HW-VERSION : 0xCA00
SW-VERSION : 0x0
CHIP-EVOLUTION : 0x0
DA-VERSION : 1.0
Speed : high-speed
Upload data was accepted. Jumping to stage 2...
DA Extensions successfully added
Reading Partition Table ..
Partition Count : 51
--------------- Reading build.prop content ---------------
[COLOR="Lime"][B] Product : a12[/B][/COLOR]
ID : SP1A.210812.016
SDK : 31
Release : 12
ABI : arm64-v8a
Locale : en-GB
Description : a12nsxx-user 12 SP1A.210812.016 A125FXXS2CVK2 release-keys
Display ID : SP1A.210812.016.A125FXXS2CVK2
[COLOR="lime"][B] Security Patch : 2022-11-01[/B][/COLOR]
StorageType : mtp
--------------- end of build.prop content ---------------
Reading IMEI........
IMEI1 : 213A0FBE8B0AE45
IMEI2 : 78314D388F911D4
-------------------------------
Bootloader Status...
Bootloader : Locked
-------------------------------
Backing up Security..
- preloader(preloader.bin), 512 KB = Ok [preloader_k65v1_64_bsp_titan_rat.bin]
*Creating Scatter file... C:\Hydra Tool\Backup\MTKBKUP\0766_324E55CC2955E1274582478D7C9A0311\Auto\041523115005\6765_Android_scatter.txt
- pgpt(pgpt.bin), 4 MB = Ok
- nvram(nvram.bin), 64 MB = Ok
- nvdata(nvdata.bin), 64 MB = Ok
- frp(frp.bin), 1024 KB = Ok
- protect1(protect1.bin), 8 MB = Ok
- protect2(protect2.bin), 8 MB = Ok
- proinfo(proinfo.bin), 3 MB = Ok
- nvcfg(nvcfg.bin), 32 MB = Ok
- sec1(sec1.bin), 8 MB = Ok
- seccfg(seccfg.bin), 8 MB = Ok

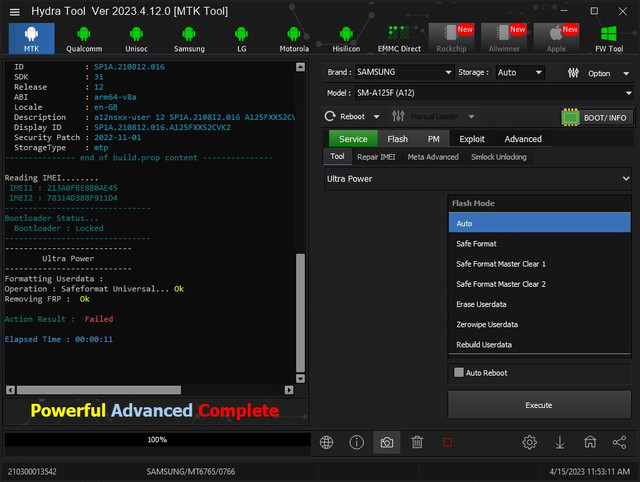

Backup Done!!!Factory Reset/FRP
