Hydra Samsung A10s (SM-A107F) FRP Lock Remove with Hydra Tool

Hydra Tool

Unlockinfo

Friend's Martview
Feb 6, 2020
394
435
Pakistan
Skype
unlockinfo
Samsung A10s (SM-A107F) FRP Lock Remove with Hydra Tool

- keep press boot info
- phone connect with test point

Code:
-------------------------------------------------------
To Enable BROM  Mode :
     Method 1    - Bootkey (Vol + - Power) or any combination
     Method 2    - Enable Preloader to brom(crashing Method)
     Method 3    - Test Point Data0 + ground
To Enable Preloader  Mode :
     Method 1    - Just Insert cable
-------------------------------------------------------

Searching for MTK Device...Found
  MTK Port Type   : Flashmode Preloader
  FriendlyName    : MediaTek PreLoader USB VCOM_V1633 (Android) (COM30)
  Device          : /6&1afede88&0&3
  SymbolicName    : \\?\usb#vid_0e8d&pid_2000#6&1afede88&0&3#{a5dcbf10-6530-11d2-901f-00c04fb951ed}
  Driver Ver      : 01/22/2015,3.0.1504.0
  Service         : wdm_usb

Openning Port [COM30] Ok
Handshaking...Ok
  HwCode          : 0766 {MT6765/MT8768t}
  Hwver           : 0000
  Target config   : 05
  SBC             : 01 (True)
  SLA             : 00 (False)
  DAA             : 04 (True)
  SWJTAG          : 04 (True)
  EPP             : 00 (False)
  CERT            : 00 (False)
  MEMREAD         : 00 (False)
  MEMWRITE        : 00 (False)
  CMD_C8          : 00 (False)
  Connection      : Preloader
  HW Subcode      : 8A00
  HW Subcode      : CA00
  SW Ver          : 0000
  ME_ID           : 78CD7902746DFE21C8B1E3F96EAA7BBF


- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
                  Preloader To Brom Function.....
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- Method 1  Exploit Executed..... [Successfully Crash Preloader.]
Device now is BROM Port
Device not yet filterd...
Executing LibUSB Filter..
Device Now Filtered...Restarting Device Port..

Openning Port [COM5] Ok

Exploiting Device...
Successfully Exploited..
Handshaking...Ok
Dumping Preloader from Bootrom..
Seeking preloader address..Found @ 0x00200BC4
Starting to dump...
Prel Size : 0x0003BEC4
Successfully dump preloader..  [C:\Hydra Tool\Boot\PreloaderDump\preloader_s96116aa1.bin]
  Target config   : 00
  SBC             : 00 (False)
  SLA             : 00 (False)
  DAA             : 00 (False)
  SWJTAG          : 00 (False)
  EPP             : 00 (False)
  CERT            : 00 (False)
  MEMREAD         : 00 (False)
  MEMWRITE        : 00 (False)
  CMD_C8          : 00 (False)
  Connection      : BROM

Preparing Download Agent..[MTK_AllInOne_DA_5.2152.bin]
Patching da2 ... Ok
Uploading Stage 1....
Successfully uploaded stage 1, jumping ..
Executing JUMP_DA Address @ 0x00200000
Jumping to 0x00200000 Ok 0xC0
Successfully received DA sync
  ONNECTION_AGENT : brom
  DRAM config needed for : 150100514436334D
Sending auto preloader from dump...  [preloader_s96116aa1.bin]
Sending emi data.. [DRAM setup passed.]
Sending emi data succeeded.
Uploading stage 2...
Upload data was accepted. Jumping to stage 2...
Successfully uploaded stage 2
  ERAM Size       : 0x000000000003A000-232 KB
  IRAM Size       : 0x0000000080000000-2 GB
  EMMC Boot1 Size : 0x0000000000400000-4 MB
  EMMC Boot2 Size : 0x0000000000400000-4 MB
  EMMC RPMB Size  : 0x0000000001000000-16 MB
  EMMC USER Size  : 0x0000000747C00000-29.121 GB
  EMMC CID        : 150100514436334D42035A41D33BB6B3 - QD63MB
  HW-CODE         : 0x766
  HWSUB-CODE      : 0x8A00
  HW-VERSION      : 0xCA00
  SW-VERSION      : 0x0
  CHIP-EVOLUTION  : 0x0
  DA-VERSION      : 1.0
  Speed           : high-speed
Upload data was accepted. Jumping to stage 2...
DA Extensions successfully added
Reading Partition Table ..
Partition Count : 41
--------------- Reading build.prop content ---------------
  Brand          : samsung
  Vendor         : samsung
  Model          :[B][COLOR="Yellow"] SM-A107F[/COLOR][/B]
  Product        : a10s
  Manufacturer   : samsung
  ID             : PPR1.180610.011
  SDK            : 28
  Release        : 9
  ABI            : armeabi-v7a
  CPU abilist    : armeabi-v7a,armeabi
  Locale         : en-GB
  Description    : a10sxx-user 9 PPR1.180610.011 A107FXXU5ATA9 release-keys
  Device         : a10s
  Display ID     : PPR1.180610.011.A107FXXU5ATA9
  Security Patch : 2020-01-01
  Fingerprint    : samsung/a10sxx/a10s:9/PPR1.180610.011/A107FXXU5ATA9[:user/release-keys
--------------- end of build.prop content ---------------

Reading IMEI........
IMEI1 : AB8ADE*********
IMEI2 : F7900E*********
-------------------------------
Bootloader Status...
  Bootloader : Locked
-------------------------------

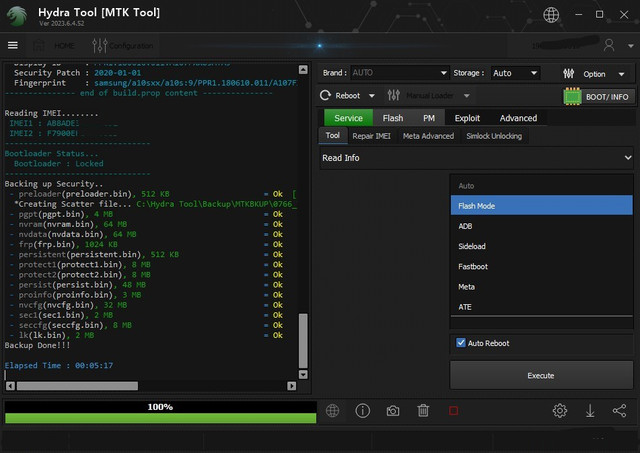

Backing up Security..
- preloader(preloader.bin), 512 KB                    = Ok  [preloader_s96116aa1.bin]
  *Creating Scatter file... C:\Hydra Tool\Backup\MTKBKUP\0766_78CD7ff746DFE21C8B1E3F96EAA7BBF\Auto\071923205444\6765_Android_scatter.txt
- pgpt(pgpt.bin), 4 MB                                = Ok
- nvram(nvram.bin), 64 MB                             = Ok
- nvdata(nvdata.bin), 64 MB                           = Ok
- frp(frp.bin), 1024 KB                               = Ok
- persistent(persistent.bin), 512 KB                  = Ok
- protect1(protect1.bin), 8 MB                        = Ok
- protect2(protect2.bin), 8 MB                        = Ok
- persist(persist.bin), 48 MB                         = Ok
- proinfo(proinfo.bin), 3 MB                          = Ok
- nvcfg(nvcfg.bin), 32 MB                             = Ok
- sec1(sec1.bin), 2 MB                                = Ok
- seccfg(seccfg.bin), 8 MB                            = Ok
- lk(lk.bin), 2 MB                                    = Ok
Backup Done!!!

Elapsed Time : 00:05:17

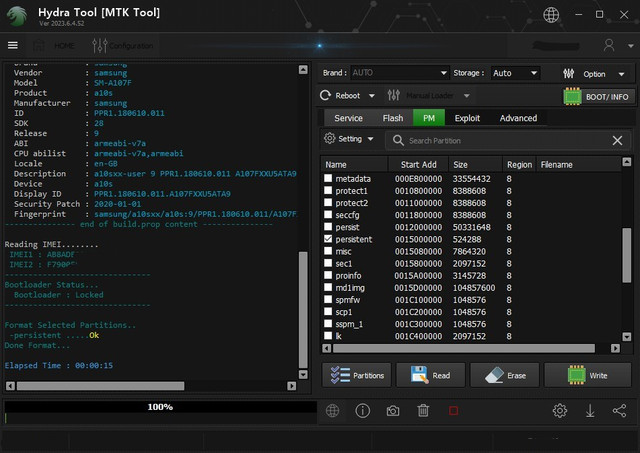

- go to pm tab and read patition files.
- select persistent and erase

Code:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
                  MTK Partition Manager Function...
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Searching for MTK Device...Found
  MTK Port Type   : Flashmode BROM
  FriendlyName    : MediaTek USB Port_V1633 (COM5)
  Device          : /6&1afede88&0&3
  SymbolicName    : \\?\usb#vid_0e8d&pid_0003#6&1afede88&0&3#{a5dcbf10-6530-11d2-901f-00c04fb951ed}
  Driver Ver      : 01/22/2015,3.0.1504.0
  Service         : wdm_usb

Openning Port [COM5] Ok
Reading Partition Table ..
  ERAM Size       : 0x000000000003A000-232 KB
  IRAM Size       : 0x0000000080000000-2 GB
  EMMC Boot1 Size : 0x0000000000400000-4 MB
  EMMC Boot2 Size : 0x0000000000400000-4 MB
  EMMC RPMB Size  : 0x0000000001000000-16 MB
  EMMC USER Size  : 0x0000000747C00000-29.121 GB
  EMMC CID        : 150100514436334D42035A41D33BB6B3 - QD63MB
  HW-CODE         : 0x766
  HWSUB-CODE      : 0x8A00
  HW-VERSION      : 0xCA00
  SW-VERSION      : 0x0
  CHIP-EVOLUTION  : 0x0
  DA-VERSION      : 1.0
  Speed           : high-speed
Partition Count : 41
--------------- Reading build.prop content ---------------
  Brand          : samsung
  Vendor         : samsung
  Model          : SM-A107F
  Product        : a10s
  Manufacturer   : samsung
  ID             : PPR1.180610.011
  SDK            : 28
  Release        : 9
  ABI            : armeabi-v7a
  CPU abilist    : armeabi-v7a,armeabi
  Locale         : en-GB
  Description    : a10sxx-user 9 PPR1.180610.011 A107FXXU5ATA9 release-keys
  Device         : a10s
  Display ID     : PPR1.180610.011.A107FXXU5ATA9
  Security Patch : 2020-01-01
  Fingerprint    : samsung/a10sxx/a10s:9/PPR1.180610.011/A107FXXU5ATA9:user/release-keys
--------------- end of build.prop content ---------------

Reading IMEI........
IMEI1 : AB8AD***********
IMEI2 : F7900***********
-------------------------------
Bootloader Status...
  Bootloader : Locked
-------------------------------

Format Selected Partitions..
-persistent .....Ok
Done Format...

Elapsed Time : 00:00:15
