Samsung A04E FRP Lock Remove wuth Hydra Tool
- First keep press boot info
- remove frp and click execute
- First keep press boot info
Code:
-------------------------------------------------------
To Enable BROM Mode :
Method 1 - Bootkey (Vol + - Power) or any combination
Method 2 - Enable Preloader to brom(crashing Method)
Method 3 - Test Point Data0 + ground
To Enable Preloader Mode :
Method 1 - Just Insert cable
-------------------------------------------------------
Searching for MTK Device...Found
MTK Port Type : Flashmode BROM
FriendlyName : MediaTek USB Port (COM19)
Device : /6&2c3ff1f8&0&4
SymbolicName : \\?\usb#vid_0e8d&pid_0003#6&2c3ff1f8&0&4#{a5dcbf10-6530-11d2-901f-00c04fb951ed}
Driver Ver : 01/22/2015,3.0.1504.0
Service : wdm_usb
Openning Port [COM19] Ok
Handshaking...
HwCode : 0766 {MT6765/MT8768t}
Hwver : 0000
Target config : E5
SBC : 01 (True)
SLA : 00 (False)
DAA : 04 (True)
SWJTAG : 04 (True)
EPP : 00 (False)
CERT : 00 (False)
MEMREAD : 20 (True)
MEMWRITE : 40 (True)
CMD_C8 : 80 (True)
Connection : BROM
HW Subcode : 8A00
HW Subcode : CA00
SW Ver : 0000
ME_ID : 38350894854CC5E49F46738C9B31BD16
SOC_ID : 0633E6C29DEF5E6B23FAF7263D9618BD89008F5D973ADCF9BC3E470CC30B2EBC
Device not yet filterd...
Executing LibUSB Filter..
Device Now Filtered...Restarting Device Port..
Openning Port [COM19] Ok
Exploiting Device...
Successfully Exploited..
Handshaking...Ok
Dumping Preloader from Bootrom..
Seeking preloader address..Found @ 0x00200BC4
Starting to dump...
Prel Size : 0x0003C41C
Successfully dump preloader.. [C:\Hydra Tool\Boot\PreloaderDump\preloader_hs04.bin]
Target config : 00
SBC : 00 (False)
SLA : 00 (False)
DAA : 00 (False)
SWJTAG : 00 (False)
EPP : 00 (False)
CERT : 00 (False)
MEMREAD : 00 (False)
MEMWRITE : 00 (False)
CMD_C8 : 00 (False)
Connection : BROM
Preparing Download Agent..[MTK_AllInOne_DA_5.2152.bin]
Patching da2 ... Ok
Uploading Stage 1....
Successfully uploaded stage 1, jumping ..
Executing JUMP_DA Address @ 0x00200000
Jumping to 0x00200000 Ok 0xC0
Successfully received DA sync
ONNECTION_AGENT : brom
DRAM config needed for : 150100345836324D
Sending auto preloader from dump... [preloader_hs04.bin]
Sending emi data.. [DRAM setup passed.]
Sending emi data succeeded.
Uploading stage 2...
Upload data was accepted. Jumping to stage 2...
Successfully uploaded stage 2
ERAM Size : 0x000000000003A000-232 KB
IRAM Size : 0x00000000C0000000-3 GB
EMMC Boot1 Size : 0x0000000000400000-4 MB
EMMC Boot2 Size : 0x0000000000400000-4 MB
EMMC RPMB Size : 0x0000000001000000-16 MB
EMMC USER Size : 0x0000000747C00000-29.121 GB
EMMC CID : 150100345836324D42009C0FD4A91A83 - 4X62MB
HW-CODE : 0x766
HWSUB-CODE : 0x8A00
HW-VERSION : 0xCA00
SW-VERSION : 0x0
CHIP-EVOLUTION : 0x0
DA-VERSION : 1.0
Speed : high-speed
Upload data was accepted. Jumping to stage 2...
DA Extensions successfully added
Reading Partition Table ..
Partition Count : 52
--------------- Reading build.prop content ---------------
Unable to read system info..
--------------- end of build.prop content ---------------
Reading IMEI........
IMEI1 : B844**********
IMEI2 : 6BED**********
-------------------------------
Bootloader Status...
Bootloader : Locked
-------------------------------
Backing up Security..
- preloader(preloader.bin), 512 KB = Ok [preloader_hs04.bin]
*Creating Scatter file... C:\Hydra Tool\Backup\MTKBKUP\0766_38350544CC5E49F46738C9B31BD16\Auto\07204534513\6765_Android_scatter.txt
- pgpt(pgpt.bin), 4 MB = Ok
- nvram(nvram.bin), 64 MB = Ok
- nvdata(nvdata.bin), 64 MB = Ok
- frp(frp.bin), 1024 KB = Ok
- persistent(persistent.bin), 512 KB = Ok
- protect1(protect1.bin), 8 MB = Ok
- protect2(protect2.bin), 8 MB = Ok
- persist(persist.bin), 48 MB = Ok
- proinfo(proinfo.bin), 3 MB = Ok
- nvcfg(nvcfg.bin), 32 MB = Ok
- sec1(sec1.bin), 8 MB = Ok
- seccfg(seccfg.bin), 8 MB = Ok
- lk(lk.bin), 2 MB = Ok
Backup Done!!!
Elapsed Time : 00:00:52
![](/proxy.php?image=https%3A%2F%2Fi.ibb.co%2F8M8T2Z9%2F1.jpg&hash=4cede8a97067595e1219b9aed5668fee)

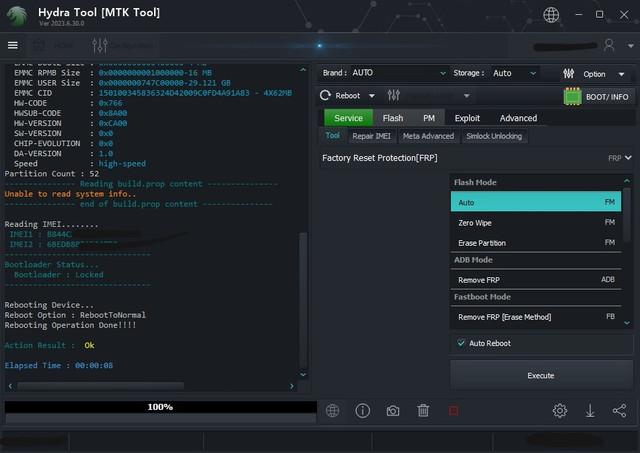

- remove frp and click execute
Code:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Service Function
Factory Reset Protection[FRP]
Auto
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Searching for MTK Device...Found
MTK Port Type : Flashmode BROM
FriendlyName : MediaTek USB Port (COM19)
Device : /6&2c3ff1f8&0&4
SymbolicName : \\?\usb#vid_0e8d&pid_0003#6&2c3ff1f8&0&4#{a5dcbf10-6530-11d2-901f-00c04fb951ed}
Driver Ver : 01/22/2015,3.0.1504.0
Service : wdm_usb
Openning Port [COM19] Ok
Reading Partition Table ..
ERAM Size : 0x000000000003A000-232 KB
IRAM Size : 0x00000000C0000000-3 GB
EMMC Boot1 Size : 0x0000000000400000-4 MB
EMMC Boot2 Size : 0x0000000000400000-4 MB
EMMC RPMB Size : 0x0000000001000000-16 MB
EMMC USER Size : 0x0000000747C00000-29.121 GB
EMMC CID : 150100345836324D42009C0FD4A91A83 - 4X62MB
HW-CODE : 0x766
HWSUB-CODE : 0x8A00
HW-VERSION : 0xCA00
SW-VERSION : 0x0
CHIP-EVOLUTION : 0x0
DA-VERSION : 1.0
Speed : high-speed
Partition Count : 52
--------------- Reading build.prop content ---------------
Unable to read system info..
--------------- end of build.prop content ---------------
Reading IMEI........
IMEI1 : B844C9********
IMEI2 : 6BEDB8********
-------------------------------
Bootloader Status...
Bootloader : Locked
-------------------------------
Rebooting Device...
Reboot Option : RebootToNormal
Rebooting Operation Done!!!!
Action Result : Ok
Elapsed Time : 00:00:08
![](/proxy.php?image=https%3A%2F%2Fi.ibb.co%2FTWfrpWQ%2F2.jpg&hash=bb20232399e365cabb54401b4c71cf86)
