- Jul 19, 2019
- 20
- 31
Read Info
QcFire Logs
Operation : Read InformationQcFire Logs
Checking for existing devices...Not Found
Turn Off phone, hold Vol UP + Vol DOWN and insert USB cable.
Some phones may need Special Boot Cable or TestPoint for EDL mode.
Found Port : Qualcomm HS-USB QDLoader 9008 (COM9)
Driver Info : Qualcomm Incorporated, qcusbser.sys, 2.1.2.2
Connecting to phone...OK
Waiting for response...Ignored
Init Handshake Sequence...OK
Hardware ID : E1C00C00 [8996] 00000000
OPK_DATA : F7337FE47B192EF4D1BA34CB4E879F0C6B771D06D2DE87BF21F65BA3303834E1
Initializing Protocol...OK
Using Auto Loader Selection [1]
Preparing Loader...Done
Sending Loader [8996_016]...Done
Executing Loader...OK
Detecting Chip Type...OK
Hardware : MSM8996, eMMC, 64 GB
LU Count : 1 [0x0747C000]
WARNING! High Speed Driver is not installed.
Please install driver from QcFire\Drivers folder using Device Manager.
Payload Info : In: 65536 [4096], Out: 131072, Sector Size: 512
Reading Partition Table...OK
Reading Device Information...OK

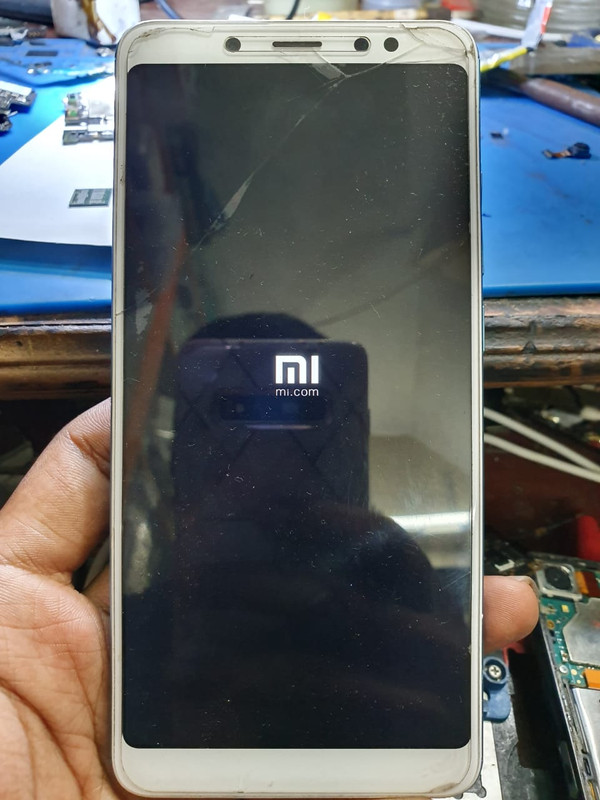

Device : Xiaomi Redmi Note 5 [whyred]
Software : OPM1.171019.011, V10.3.1.0.OEIMIXM [Fri Apr 26 15:54:32 WIB 2019]
Android Ver. : 8.1.0
Patch Level : 2019-04-01
USERDATA : Encrypted
You can use DISABLE LOCKS to Disable Pin/Pattern/Password WITHOUT Data Loss.
Operation Finished.
QcFire Ver. 4.7
Flashing Logs
Operation : Flash
Checking for existing devices...Not Found
Turn Off phone, hold Vol UP + Vol DOWN and insert USB cable.
Some phones may need Special Boot Cable or TestPoint for EDL mode.
Found Port : Qualcomm HS-USB QDLoader 9008 (COM8)
Driver Info : Qualcomm Incorporated, qcusbser.sys, 2.1.2.2
Connecting to phone...OK
Waiting for response...Ignored
Init Handshake Sequence...OK
Hardware ID : E1C00C00 [8996] 00000000
OPK_DATA : F7337FE47B192EF4D1BA34CB4E879F0C6B771D06D2DE87BF21F65BA3303834E1
Initializing Protocol...OK
Using Auto Loader Selection [1]
Preparing Loader...Done
Sending Loader [8996_016]...Done
Executing Loader...OK
Detecting Chip Type...OK
Hardware : MSM8996, eMMC, 64 GB
LU Count : 1 [0x0747C000]
WARNING! High Speed Driver is not installed.
Please install driver from QcFire\Drivers folder using Device Manager.
Payload Info : In: 65536 [4096], Out: 131072, Sector Size: 512
Writing [storsec.mbn] -> [storsec] ...Done
Writing [storsec.mbn] -> [storsecbak] ...Done
Writing [rpm.mbn] -> [rpm] ...Done
Writing [rpm.mbn] -> [rpmbak] ...Done
Writing [hyp.mbn] -> [hyp] ...Done
Writing [hyp.mbn] -> [hypbak] ...Done
Writing [pmic.elf] -> [pmic] ...Done
Writing [pmic.elf] -> [pmicbak] ...Done
Writing [cmnlib.mbn] -> [cmnlib] ...Done
Writing [cmnlib.mbn] -> [cmnlibbak] ...Done
Writing [cmnlib64.mbn] -> [cmnlib64] ...Done
Writing [cmnlib64.mbn] -> [cmnlib64bak] ...Done
Writing [abl.elf] -> [abl] ...Done
Writing [abl.elf] -> [ablbak] ...Done
Writing [devcfg.mbn] -> [devcfgbak] ...Done
Writing [devcfg.mbn] -> [devcfg] ...Done
Writing [tz.mbn] -> [tz] ...Done
Writing [tz.mbn] -> [tzbak] ...Done
Writing [mdtpsecapp.mbn] -> [mdtpsecapp] ...Done
Writing [mdtpsecapp.mbn] -> [mdtpsecappbak] ...Done
Writing [keymaster.mbn] -> [keymaster] ...Done
Writing [keymaster.mbn] -> [keymasterbak] ...Done
Writing [BTFM.bin] -> [bluetooth] ...Done
Writing [xbl.elf] -> [xbl] ...Done
Writing [xbl.elf] -> [xblbak] ...Done
Writing [dspso.bin] -> [dsp] ...Done
Writing [mdtp.img] -> [mdtp] ...Done
Writing [splash.img] -> [splash] ...Done
Writing [persist.img ] -> [persist]...Done
Writing [NON-HLOS.bin] -> [modem] ...Done
Writing [boot.img] -> [boot] ...Done
Writing [recovery.img] -> [recovery] ...Done
Writing [cache.img ] -> [cache]...Done
Writing [system.img ] -> [system]...Done
Writing [vendor.img ] -> [vendor]...Done
Writing [cust.img ] -> [cust]...Done
Writing [userdata.img ] -> [userdata]...Done
Writing [gpt_main0.bin] -> [PrimaryGPT] ...Done
Writing [gpt_backup0.bin] -> [BackupGPT] ...Done
Applying Patches................Done
Resetting device...Done
Operation Finished.
QcFire Ver. 4.7

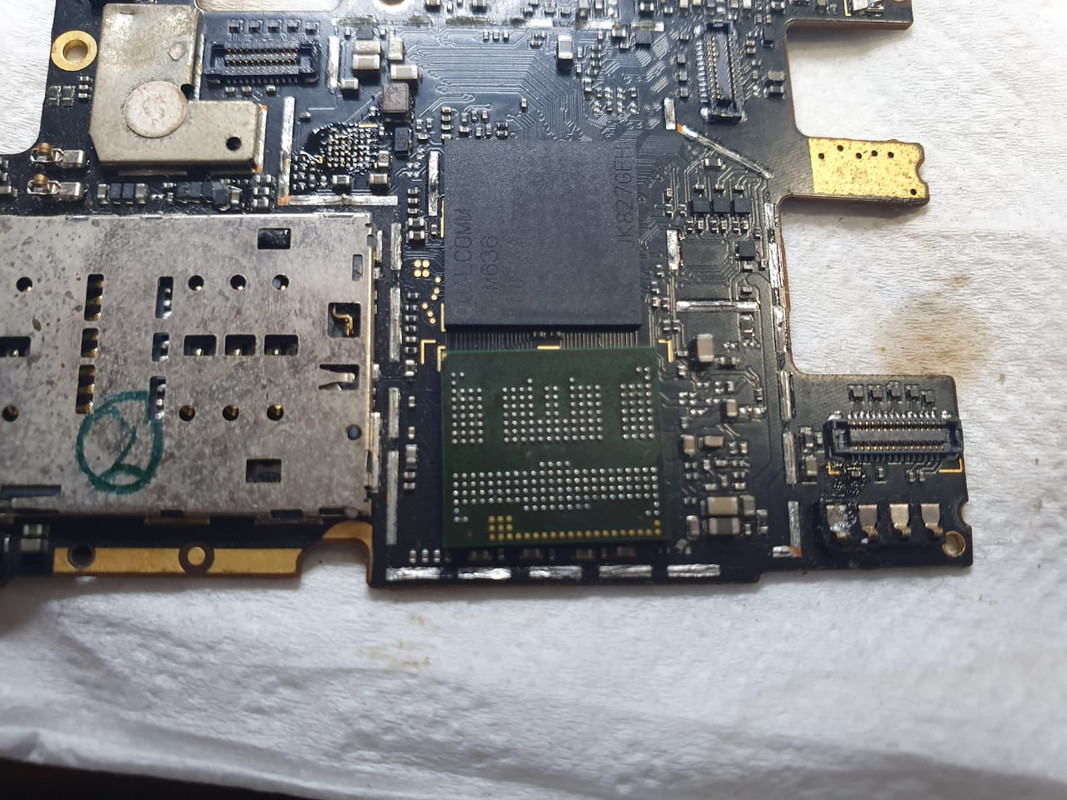

Removed Emmc
