Hydra Redmi Note 11 Pro 4G Bootloader Unlock with Hydra Tool

Hydra Tool

Rashi Hydra Tool

Product Manager
Feb 3, 2021
338
317
Hydra Team

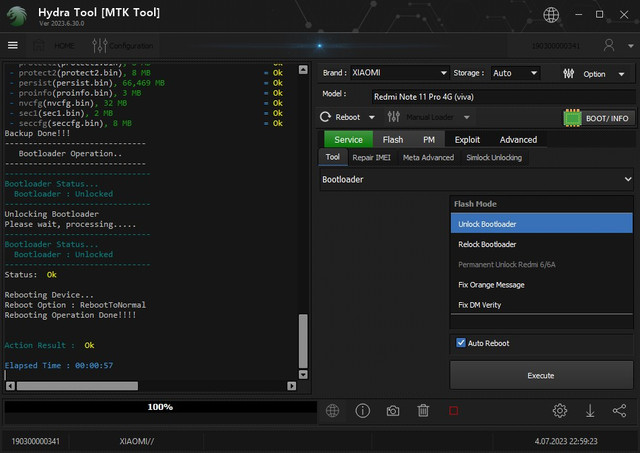

Redmi Note 11 Pro 4G Bootloader Unlock with Hydra Tool


BL-Unlock Done
Code:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
                      Service Function
                         Bootloader
                     Unlock Bootloader
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Searching for MTK Device...Found
  MTK Port Type   : Flashmode BROM
  FriendlyName    : MediaTek USB Port_V1632 (COM39)
  Device          : /5&1f03ab54&0&3
  SymbolicName    : \\?\usb#vid_0e8d&pid_0003#5&1f03ab54&0&3#{a5dcbf10-6530-11d2-901f-00c04fb951ed}
  Driver Ver      : 01/22/2015,3.0.1504.0
  Service         : wdm_usb

Openning Port [COM39] Ok
Handshaking...Ok
  HwCode          : 0959 {MT6877}
  Hwver           : 0000
  Target config   : E7
  SBC             : 01 (True)
  SLA             : 02 (True)
  DAA             : 04 (True)
  SWJTAG          : 06 (True)
  EPP             : 00 (False)
  CERT            : 00 (False)
  MEMREAD         : 20 (True)
  MEMWRITE        : 40 (True)
  CMD_C8          : 80 (True)
  Connection      : BROM
  HW Subcode      : 8A00
  HW Subcode      : CA00
  SW Ver          : 0000
  ME_ID           : 48D32ED03D173FF22F2A2C62A5F51023
  SOC_ID          : 7C621DB235D4CB48FB72233BE2F033B45F64BB724CC0610050799DA79999EFD3

Exploiting Device...
Successfully Exploited..
Handshaking...Ok
Dumping Preloader from Bootrom..
Seeking preloader address..Found @ 0x00200BC4
Starting to dump...
Prel Size : 0x00070E44
Successfully dump preloader..  [C:\Hydra Tool\Boot\PreloaderDump\preloader_pissarro.bin]
  Target config   : 00
  SBC             : 00 (False)
  SLA             : 00 (False)
  DAA             : 00 (False)
  SWJTAG          : 00 (False)
  EPP             : 00 (False)
  CERT            : 00 (False)
  MEMREAD         : 00 (False)
  MEMWRITE        : 00 (False)
  CMD_C8          : 00 (False)
  Connection      : BROM

Preparing Download Agent..[MTK_AllInOne_DA_5.2152.bin]
Patching da2 ... Ok
Uploading Stage 1....
Successfully uploaded stage 1, jumping ..
Executing JUMP_DA Address @ 0x00200000
Jumping to 0x00200000 Ok 0xC0
Successfully received DA sync
  ONNECTION_AGENT : brom
  DRAM config needed for : 4839485132314146414D414441520000
Sending auto preloader from dump...  [preloader_pissarro.bin]
Sending emi data.. [DRAM setup passed.]
Sending emi data succeeded.
Uploading stage 2...
Upload data was accepted. Jumping to stage 2...
Successfully uploaded stage 2
  ERAM Size       : 0x0000000000070000-448 KB
  IRAM Size       : 0x0000000200000000-8 GB
  UFS MID         : 0x48
  UFS FWVer       : 0xA043
  UFS Blocksize   : 0x0000000000001000-4 KB
  UFS LU0 Size    : 0x0000000000400000-4 MB
  UFS LU1 Size    : 0x0000000000400000-4 MB
  UFS LU2 Size    : 0x0000003B96000000-238,344 GB
  UFS ID          : H
  UFS CID         : 4839485132314146414D41444152000000000000
  HW-CODE         : 0x959
  HWSUB-CODE      : 0x8A00
  HW-VERSION      : 0xCA00
  SW-VERSION      : 0x0
  CHIP-EVOLUTION  : 0x2
  DA-VERSION      : 1.0
  Speed           : high-speed
Upload data was accepted. Jumping to stage 2...
DA Extensions successfully added
Reading Partition Table ..
Partition Count : 77
--------------- Reading build.prop content ---------------
  Vendor         : Xiaomi
  Product        : missi
  Manufacturer   : Xiaomi
  ID             : SP1A.210812.016
  SDK            : 31
  Release        : 12
  ABI            : arm64-v8a
  Locale         : en-GB
  Description    : missi-user 12 SP1A.210812.016 V13.0.6.0.SKTMIXM release-keys
  Display ID     : SP1A.210812.016
  Security Patch : 2022-10-01
  StorageType    : mtp
--------------- end of build.prop content ---------------

Reading IMEI........
-------------------------------
Bootloader Status...
  Bootloader : Unlocked
-------------------------------
Backing up Security..
- preloader(preloader.bin), 512 KB                    = Ok  [preloader_pissarro.bin]
  *Creating Scatter file... C:\Hydra Tool\Backup\MTKBKUP\0959_48D32ED03D1dsdsdsdF2A2C62A5F51023\Auto\070423225904\6877_Android_scatter.txt
- pgpt(pgpt.bin), 32 KB                               = Ok
- nvram(nvram.bin), 64 MB                             = Ok
- nvdata(nvdata.bin), 64 MB                           = Ok
- frp(frp.bin), 1024 KB                               = Ok
- protect1(protect1.bin), 8 MB                        = Ok
- protect2(protect2.bin), 8 MB                        = Ok
- persist(persist.bin), 66,469 MB                     = Ok
- proinfo(proinfo.bin), 3 MB                          = Ok
- nvcfg(nvcfg.bin), 32 MB                             = Ok
- sec1(sec1.bin), 2 MB                                = Ok
- seccfg(seccfg.bin), 8 MB                            = Ok
Backup Done!!!
------------------------------
   Bootloader Operation..
------------------------------
-------------------------------
Bootloader Status...
  Bootloader : Unlocked
-------------------------------
Unlocking Bootloader
Please wait, processing.....
-------------------------------
Bootloader Status...
  Bootloader : Unlocked
-------------------------------
Status:  Ok

Rebooting Device...
Reboot Option : RebootToNormal
Rebooting Operation Done!!!!


Action Result :  Ok

Elapsed Time : 00:00:57
