Nokia 2.1(TA-1084) Flashing done with UMT using NB0 firmware

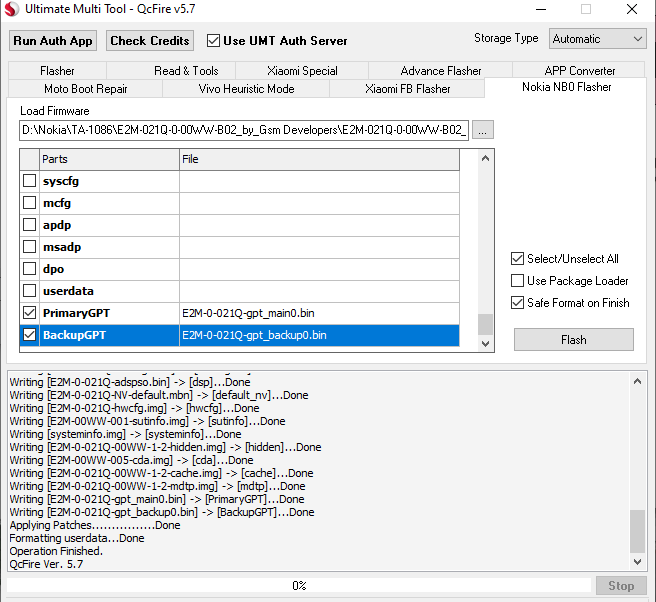

Her is log....................

Brand : Nokia
Operation : Flash Firmware (nb0)
Checking for existing devices...Not Found
Turn Off phone, hold Vol UP + Vol DOWN and insert USB cable.
Some phones may need Special Boot Cable or TestPoint for EDL mode.
Found Port : Qualcomm HS-USB QDLoader 9008 (COM33)
Driver Info : Qualcomm Incorporated, qcusbser.sys, 2.1.2.7
Connecting to phone...OK
Waiting for response...OK
Init Handshake Sequence...OK
Hardware ID : E1600500 [8917] 00000000
OPK_DATA : A57FDEEB0D02233786D8DDCA8A9889D62F92D43EE56EAC9966024663C39A5B06
Initializing Protocol...OK
Using Auto Loader Selection [1]
Preparing Loader...Done
Sending Loader...Done
Executing Loader...OK
Detecting Chip Type...OK
Hardware : 8917, eMMC, 8 GB
LU Count : 1 [0x00E90000]
Payload Info : In: 262144 [4096], Out: 1048576, Sector Size: 512
Writing [E2M-0-021Q-NON-HLOS.bin] -> [modem]...Done
Writing [E2M-0-021Q-00WW-1-2-emmc_appsboot.mbn] -> [aboot]...Done
Writing [E2M-0-021Q-00WW-1-2-emmc_appsboot.mbn] -> [abootbak]...Done
Writing [E2M-0-021Q-00WW-1-2-boot.img] -> [boot]...Done
Writing [E2M-0-021Q-00WW-1-2-recovery.img] -> [recovery]...Done
Writing [E2M-0-021Q-00WW-1-2-system.img] -> [system]...Done
Writing [E2M-0-021Q-00WW-1-2-vendor.img] -> [vendor]...Done
Writing [E2M-0-021Q-cmnlib_30.mbn] -> [cmnlib]...Done
Writing [E2M-0-021Q-cmnlib_30.mbn] -> [cmnlibbak]...Done
Writing [E2M-0-021Q-cmnlib64_30.mbn] -> [cmnlib64]...Done
Writing [E2M-0-021Q-cmnlib64_30.mbn] -> [cmnlib64bak]...Done
Writing [E2M-0-021Q-keymaster64.mbn] -> [keymaster]...Done
Writing [E2M-0-021Q-keymaster64.mbn] -> [keymasterbak]...Done
Writing [E2M-00WW-022-splash.img] -> [splash]...Done
Writing [E2M-0-021Q-sbl1.mbn] -> [sbl1]...Done
Writing [E2M-0-021Q-sbl1.mbn] -> [sbl1bak]...Done
Writing [E2M-0-021Q-rpm.mbn] -> [rpm]...Done
Writing [E2M-0-021Q-rpm.mbn] -> [rpmbak]...Done
Writing [E2M-0-021Q-tz.mbn] -> [tz]...Done
Writing [E2M-0-021Q-tz.mbn] -> [tzbak]...Done
Writing [E2M-0-021Q-devcfg.mbn] -> [devcfg]...Done
Writing [E2M-0-021Q-devcfg.mbn] -> [devcfgbak]...Done
Writing [E2M-0-021Q-adspso.bin] -> [dsp]...Done
Writing [E2M-0-021Q-NV-default.mbn] -> [default_nv]...Done
Writing [E2M-0-021Q-hwcfg.img] -> [hwcfg]...Done
Writing [E2M-00WW-001-sutinfo.img] -> [sutinfo]...Done
Writing [systeminfo.img] -> [systeminfo]...Done
Writing [E2M-0-021Q-00WW-1-2-hidden.img] -> [hidden]...Done
Writing [E2M-00WW-005-cda.img] -> [cda]...Done
Writing [E2M-0-021Q-00WW-1-2-cache.img] -> [cache]...Done
Writing [E2M-0-021Q-00WW-1-2-mdtp.img] -> [mdtp]...Done
Writing [E2M-0-021Q-gpt_main0.bin] -> [PrimaryGPT]...Done
Writing [E2M-0-021Q-gpt_backup0.bin] -> [BackupGPT]...Done
Applying Patches................Done
Formatting userdata...Done
Operation Finished.

QcFire Ver. 5.7

Thanks team good update..............
