Lenovo TB-8505X FRP Lock Remove With Hydra Tool
- First Keep press boot info
- Service Function
- Factory Reset Protection[FRP]
- Auto
- First Keep press boot info
Code:
-------------------------------------------------------
To Enable BROM Mode :
Method 1 - Bootkey (Vol + - Power) or any combination
Method 2 - Enable Preloader to brom(crashing Method)
Method 3 - Test Point Data0 + ground
To Enable Preloader Mode :
Method 1 - Just Insert cable
-------------------------------------------------------
Searching for MTK Device...Found
MTK Port Type : Flashmode BROM
FriendlyName : MediaTek USB Port_V1632 (COM12)
Device : /6&2e01eb57&0&3
SymbolicName : \\?\usb#vid_0e8d&pid_0003#6&2e01eb57&0&3#{a5dcbf10-6530-11d2-901f-00c04fb951ed}
Driver Ver : 01/22/2015,3.0.1504.0
Service : wdm_usb
Openning Port [COM12] Ok
Handshaking...Ok
HwCode : 0717 {MT6761/MT6762/MT3369/MT8766B}
Hwver : 0000
Target config : E5
SBC : 01 (True)
SLA : 00 (False)
DAA : 04 (True)
SWJTAG : 04 (True)
EPP : 00 (False)
CERT : 00 (False)
MEMREAD : 20 (True)
MEMWRITE : 40 (True)
CMD_C8 : 80 (True)
Connection : BROM
HW Subcode : 8A00
HW Subcode : CA01
SW Ver : 0200
ME_ID : 93D1A6B02D18898A1A09FC266ADD9D6D
SOC_ID : D3F6399C6DB30E02435157090A7871E263CC1276D3700D8BBFDC647E31E1A33E
Exploiting Device...
Successfully Exploited..
Handshaking...Ok
Dumping Preloader from Bootrom..
Seeking preloader address..Found @ 0x00200BC4
Starting to dump...
Prel Size : 0x00037F68
Successfully dump preloader.. [C:\Hydra Tool\Boot\PreloaderDump\preloader_akita_row_call.bin]
Target config : 00
SBC : 00 (False)
SLA : 00 (False)
DAA : 00 (False)
SWJTAG : 00 (False)
EPP : 00 (False)
CERT : 00 (False)
MEMREAD : 00 (False)
MEMWRITE : 00 (False)
CMD_C8 : 00 (False)
Connection : BROM
Preparing Download Agent..[MTK_AllInOne_DA_5.2152.bin]
Patching da2 ... Ok
Uploading Stage 1....
Successfully uploaded stage 1, jumping ..
Executing JUMP_DA Address @ 0x00200000
Jumping to 0x00200000 Ok 0xC0
Successfully received DA sync
ONNECTION_AGENT : brom
DRAM config needed for : 1501005158363341
Sending auto preloader from dump... [preloader_akita_row_call.bin]
Sending emi data.. [DRAM setup passed.]
Sending emi data succeeded.
Uploading stage 2...
Upload data was accepted. Jumping to stage 2...
Successfully uploaded stage 2
ERAM Size : 0x000000000003A500-233.25 KB
IRAM Size : 0x0000000080000000-2 GB
EMMC Boot1 Size : 0x0000000000400000-4 MB
EMMC Boot2 Size : 0x0000000000400000-4 MB
EMMC RPMB Size : 0x0000000000400000-4 MB
EMMC USER Size : 0x0000000747C00000-29.121 GB
EMMC CID : 150100515836334142039863D41C28EB - QX63AB
HW-CODE : 0x717
HWSUB-CODE : 0x8A00
HW-VERSION : 0xCA01
SW-VERSION : 0x200
CHIP-EVOLUTION : 0x0
DA-VERSION : 1.0
Speed : high-speed
Upload data was accepted. Jumping to stage 2...
DA Extensions successfully added
Reading Partition Table ..
Partition Count : 42
--------------- Reading build.prop content ---------------
Product : akita_row_call
ID : QP1A.190711.020
SDK : 29
Release : 10
ABI : arm64-v8a
CPU abilist : arm64-v8a,armeabi-v7a,armeabi
Description : full_akita_row_call-user 10 QP1A.190711.020 TB-8505X_U release-keys
Display ID : TB-8505X_S300686_220706_BMP
Security Patch : 2022-07-05
StorageType : mtp
--------------- end of build.prop content ---------------
Reading IMEI........
IMEI1 : ************
IMEI2 : ************
-------------------------------
Bootloader Status...
Bootloader : Locked
-------------------------------
Backing up Security..
- preloader(preloader.bin), 512 KB = Ok [preloader_akita_row_call.bin]
*Creating Scatter file... C:\Hydra Tool\Backup\MTKBKUP\0717_93D1A6B02DDSSWW33R8A1A09FC266ADD9D6D\Auto\072523093020\6761_Android_scatter.txt
- pgpt(pgpt.bin), 32 KB = Ok
- nvram(nvram.bin), 64 MB = Ok
- nvdata(nvdata.bin), 64 MB = Ok
- frp(frp.bin), 1024 KB = Ok
- protect1(protect1.bin), 8 MB = Ok
- protect2(protect2.bin), 9.469 MB = Ok
- persist(persist.bin), 48 MB = Ok
- proinfo(proinfo.bin), 3 MB = Ok
- nvcfg(nvcfg.bin), 32 MB = Ok
- sec1(sec1.bin), 2 MB = Ok
- seccfg(seccfg.bin), 8 MB = Ok
- lk(lk.bin), 1024 KB = Ok
Backup Done!!!
Elapsed Time : 00:01:24- Service Function
- Factory Reset Protection[FRP]
- Auto
Code:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

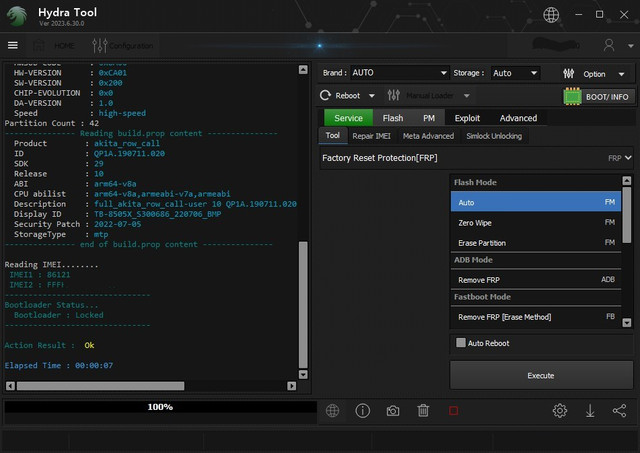

Service Function
Factory Reset Protection[FRP]
Auto
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Searching for MTK Device...Found
MTK Port Type : Flashmode BROM
FriendlyName : MediaTek USB Port_V1632 (COM12)
Device : /6&2e01eb57&0&3
SymbolicName : \\?\usb#vid_0e8d&pid_0003#6&2e01eb57&0&3#{a5dcbf10-6530-11d2-901f-00c04fb951ed}
Driver Ver : 01/22/2015,3.0.1504.0
Service : wdm_usb
Openning Port [COM12] Ok
Reading Partition Table ..
ERAM Size : 0x000000000003A500-233.25 KB
IRAM Size : 0x0000000080000000-2 GB
EMMC Boot1 Size : 0x0000000000400000-4 MB
EMMC Boot2 Size : 0x0000000000400000-4 MB
EMMC RPMB Size : 0x0000000000400000-4 MB
EMMC USER Size : 0x0000000747C00000-29.121 GB
EMMC CID : 150100515836334142039863D41C28EB - QX63AB
HW-CODE : 0x717
HWSUB-CODE : 0x8A00
HW-VERSION : 0xCA01
SW-VERSION : 0x200
CHIP-EVOLUTION : 0x0
DA-VERSION : 1.0
Speed : high-speed
Partition Count : 42
--------------- Reading build.prop content ---------------
Product : akita_row_call
ID : QP1A.190711.020
SDK : 29
Release : 10
ABI : arm64-v8a
CPU abilist : arm64-v8a,armeabi-v7a,armeabi
Description : full_akita_row_call-user 10 QP1A.190711.020 TB-8505X_U release-keys
Display ID : TB-8505X_S300686_220706_BMP
Security Patch : 2022-07-05
StorageType : mtp
--------------- end of build.prop content ---------------
Reading IMEI........
IMEI1 : **************
IMEI2 : **************
-------------------------------
Bootloader Status...
Bootloader : Locked
-------------------------------
Action Result : Ok
Elapsed Time : 00:00:07
