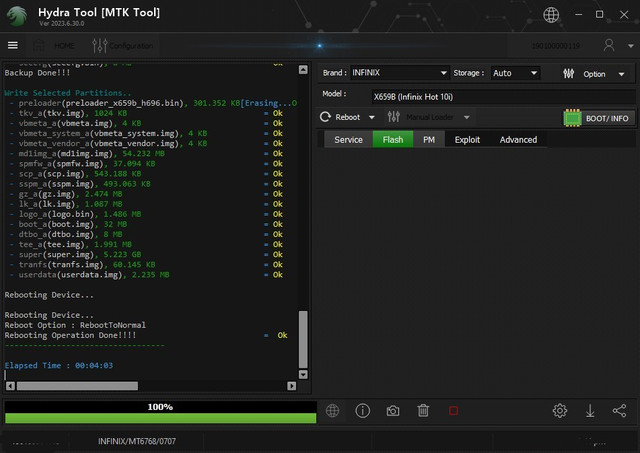

Infinix Hot 10i flashing done with Hydra Tool
Code:
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
MTK Flash Function...
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Searching for MTK Device...Found
MTK Port Type : Flashmode BROM
FriendlyName : MediaTek USB Port (COM16)
Device : /6&14b66a94&0&3
SymbolicName : \\?\usb#vid_0e8d&pid_0003#6&14b66a94&0&3#{a5dcbf10-6530-11d2-901f-00c04fb951ed}
Driver Ver : 07/22/2022,3.0.1511.0
Service : wdm_usb
Openning Port [COM16] Ok
Handshaking...Ok
HwCode : 0707 {MT6768}
Hwver : 0000
Target config : E5
SBC : 01 (True)
SLA : 00 (False)
DAA : 04 (True)
SWJTAG : 04 (True)
EPP : 00 (False)
CERT : 00 (False)
MEMREAD : 20 (True)
MEMWRITE : 40 (True)
CMD_C8 : 80 (True)
Connection : BROM
HW Subcode : 8A00
HW Subcode : CA00
SW Ver : 0000
ME_ID : 62C6882619197D1E568CE9B6B046DABE
SOC_ID : AF1E32BA5E45E145FCF6BCDF5EF690A82B2A0ED3F77A4F31C5E2063AA8A589ED
Exploiting Device...
Successfully Exploited..
Handshaking...Ok
Dumping Preloader from Bootrom..
Seeking preloader address..Found @ 0x00200BC4
Starting to dump...
Prel Size : 0x0004B568
Successfully dump preloader.. [C:\Hydra Tool\Boot\PreloaderDump\preloader_x659b_h696.bin]
Target config : 00
SBC : 00 (False)
SLA : 00 (False)
DAA : 00 (False)
SWJTAG : 00 (False)
EPP : 00 (False)
CERT : 00 (False)
MEMREAD : 00 (False)
MEMWRITE : 00 (False)
CMD_C8 : 00 (False)
Connection : BROM
Preparing Download Agent..[MTK_AllInOne_DA_5.2152.bin]
Patching da2 ... Ok
Uploading Stage 1....
Successfully uploaded stage 1, jumping ..
Executing JUMP_DA Address @ 0x00200000
Jumping to 0x00200000 Ok 0xC0
Successfully received DA sync
ONNECTION_AGENT : brom
DRAM config needed for : 1501004456364441
Sending auto preloader from dump... [preloader_x659b_h696.bin]
Sending emi data.. [DRAM setup passed.]
Sending emi data succeeded.
Uploading stage 2...
Upload data was accepted. Jumping to stage 2...
Successfully uploaded stage 2
ERAM Size : 0x0000000000070000-448 KB
IRAM Size : 0x0000000100000000-4 GB
EMMC Boot1 Size : 0x0000000000400000-4 MB
EMMC Boot2 Size : 0x0000000000400000-4 MB
EMMC RPMB Size : 0x0000000001000000-16 MB
EMMC USER Size : 0x0000001D1EC00000-116.48 GB
EMMC CID : 15010044563644414202A3B76AD55841 - DV6DAB
HW-CODE : 0x707
HWSUB-CODE : 0x8A00
HW-VERSION : 0xCA00
SW-VERSION : 0x0
CHIP-EVOLUTION : 0x1
DA-VERSION : 1.0
Speed : high-speed
Upload data was accepted. Jumping to stage 2...
DA Extensions successfully added
Reading Partition Table ..
Partition Count : 53
--------------- Reading build.prop content ---------------
--------------- end of build.prop content ---------------
Reading IMEI........
IMEI1 : 35983**********
IMEI2 : 35983**********
-------------------------------
Bootloader Status...
Bootloader : Locked
-------------------------------
Backing up Security..
- preloader(preloader.bin), 512 KB = Ok [preloader_x659b_h696.bin]
*Creating Scatter file... C:\Hydra Tool\Backup\MTKBKUP\0707_62C68822455558568CE9B6B046DABE\Auto\070723190656\6768_Android_scatter.txt
- pgpt(pgpt.bin), 32 KB = Ok
- nvram(nvram.bin), 70 MB = Ok
- nvdata(nvdata.bin), 64 MB = Ok
- frp(frp.bin), 1024 KB = Ok
- protect1(protect1.bin), 8 MB = Ok
- protect2(protect2.bin), 12.367 MB = Ok
- persist(persist.bin), 48 MB = Ok
- proinfo(proinfo.bin), 3 MB = Ok
- nvcfg(nvcfg.bin), 32 MB = Ok
- sec1(sec1.bin), 2 MB = Ok
- seccfg(seccfg.bin), 8 MB = Ok
Backup Done!!!
Write Selected Partitions..
- preloader(preloader_x659b_h696.bin), 301.352 KB[Erasing...Ok] Status :C0010001 Error= Failed
- tkv_a(tkv.img), 1024 KB = Ok
- vbmeta_a(vbmeta.img), 4 KB = Ok
- vbmeta_system_a(vbmeta_system.img), 4 KB = Ok
- vbmeta_vendor_a(vbmeta_vendor.img), 4 KB = Ok
- md1img_a(md1img.img), 54.232 MB = Ok
- spmfw_a(spmfw.img), 37.094 KB = Ok
- scp_a(scp.img), 543.188 KB = Ok
- sspm_a(sspm.img), 493.063 KB = Ok
- gz_a(gz.img), 2.474 MB = Ok
- lk_a(lk.img), 1.087 MB = Ok
- logo_a(logo.bin), 1.486 MB = Ok
- boot_a(boot.img), 32 MB = Ok
- dtbo_a(dtbo.img), 8 MB = Ok
- tee_a(tee.img), 1.991 MB = Ok
- super(super.img), 5.223 GB = Ok
- tranfs(tranfs.img), 60.145 KB = Ok
- userdata(userdata.img), 2.235 MB = Ok
Rebooting Device...
Rebooting Device...
Reboot Option : RebootToNormal
Rebooting Operation Done!!!! = Ok
----------------------------------
Elapsed Time : 00:04:03
