Huawei JAT-LX3 Honor Play 8A FRP Remove by Hydra Dongle

[Hydra Tool]

Huawei JAT-LX3 Honor Play 8A FRP Remove by Hydra Dongle

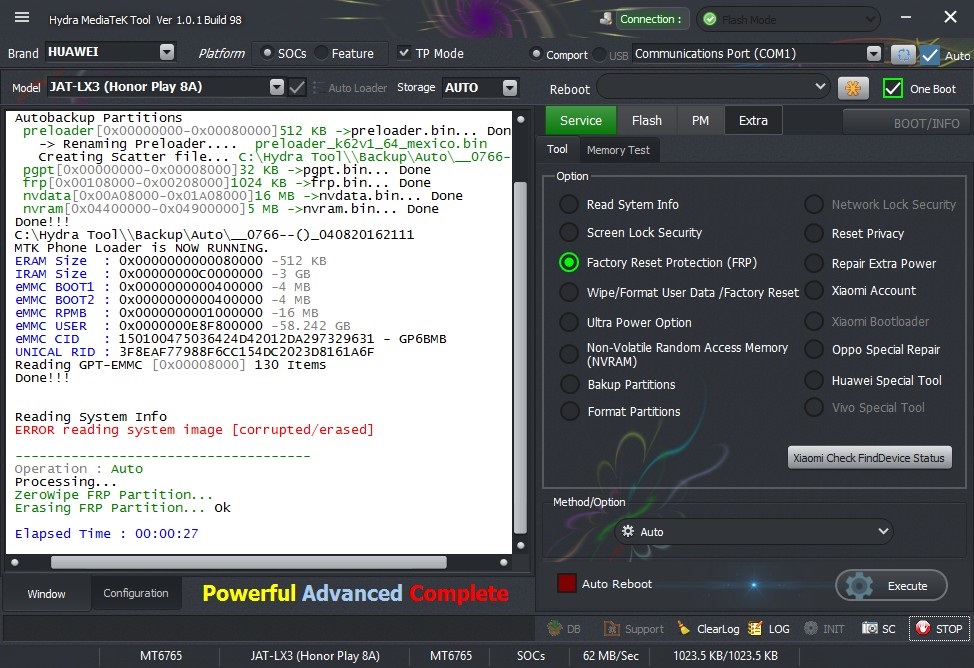

1. Run MTK Module
2. Select Brrand and Model
3. Tick Factory Reset Protection (FRP)
4. Atached the Testpoint and Click Execute

Brand : HUAWEI Model : JAT-LX3 (Honor Play 8A) Connection : Flash Mode

=====================================
How To Boot : Remove Batt if possible
* TP Ground Must be near cpu..
* Remove ground upon popup of the message dialog.

Connection[WAITING]Found[COM4] Status[Opened]
Identifying Hardware ID
BROM CPUID : 0766 (0000)MT6765[6765]
BROM HW_SW_VER : 8A00 CA00 0000 0000
FUSEID : 00000001
SECURE VERSION : 05
BL VERSION : FE
BR Secured : E5[SBC+SDA+SEL]
Security Authorization....
Sending[huawei_auth_sv5_.auth] Accepted
Preparing Download Agent..
Download Agent : Huawei__6765_8A00CA0000000000_00001000_00030000.bin
MTK_DOWNLOAD_AGENT -HYDRA
MTK_AllInOne_DA_v3.3001.2018/10/18.17:38_452898
Initializing Loader [1]
Sending Loader [1] Accepted
PROTOCOL[NEW] - eMMC
PHONE SYNC[Accepted]
DA Mode : brom
Preloader Initialization....
Parsing preloader_k62v1_64_mexico.bin
Sending Flashchip Initialization... Accepted
Initializing Loader [2]
Sending Loader [2] Accepted
ERAM Size : 0x0000000000080000 -512 KB
IRAM Size : 0x00000000C0000000 -3 GB
eMMC BOOT1 : 0x0000000000400000 -4 MB
eMMC BOOT2 : 0x0000000000400000 -4 MB
eMMC RPMB : 0x0000000001000000 -16 MB
eMMC USER : 0x0000000E8F800000 -58.242 GB
eMMC CID : 150100475036424D42012DA297329631 - GP6BMB
UNICAL RID : 3F8EAF77988F6CC154DC2023D8161A6F
DA Speed : high-speed
Reading GPT-EMMC [0x00008000] 130 Items
Done!!!

Reading System Info
ERROR reading system image [corrupted/erased]

Autobackup Partitions
preloader[0x00000000-0x00080000]512 KB ->preloader.bin... Done
-> Renaming Preloader.... preloader_k62v1_64_mexico.bin
Creating Scatter file... C:\Hydra Tool\\Backup\Auto\__0766--()_040820162111\MT6765_Android_scatter.txt
pgpt[0x00000000-0x00008000]32 KB ->pgpt.bin... Done
frp[0x00108000-0x00208000]1024 KB ->frp.bin... Done
nvdata[0x00A08000-0x01A08000]16 MB ->nvdata.bin... Done
nvram[0x04400000-0x04900000]5 MB ->nvram.bin... Done
Done!!!
C:\Hydra Tool\\Backup\Auto\__0766--()_040820162111
MTK Phone Loader is NOW RUNNING.
ERAM Size : 0x0000000000080000 -512 KB
IRAM Size : 0x00000000C0000000 -3 GB
eMMC BOOT1 : 0x0000000000400000 -4 MB
eMMC BOOT2 : 0x0000000000400000 -4 MB
eMMC RPMB : 0x0000000001000000 -16 MB
eMMC USER : 0x0000000E8F800000 -58.242 GB
eMMC CID : 150100475036424D42012DA297329631 - GP6BMB
UNICAL RID : 3F8EAF77988F6CC154DC2023D8161A6F
Reading GPT-EMMC [0x00008000] 130 Items
Done!!!


Reading System Info
ERROR reading system image [corrupted/erased]

-------------------------------------
Operation : Auto
Processing...
ZeroWipe FRP Partition...
Erasing FRP Partition... Ok

Elapsed Time : 00:00:27



[m2black2k]

Nice refference Boss,,, Can you Possibly share Link for firmware of this Model,,, Badly needed,,, Thanks ,,,
